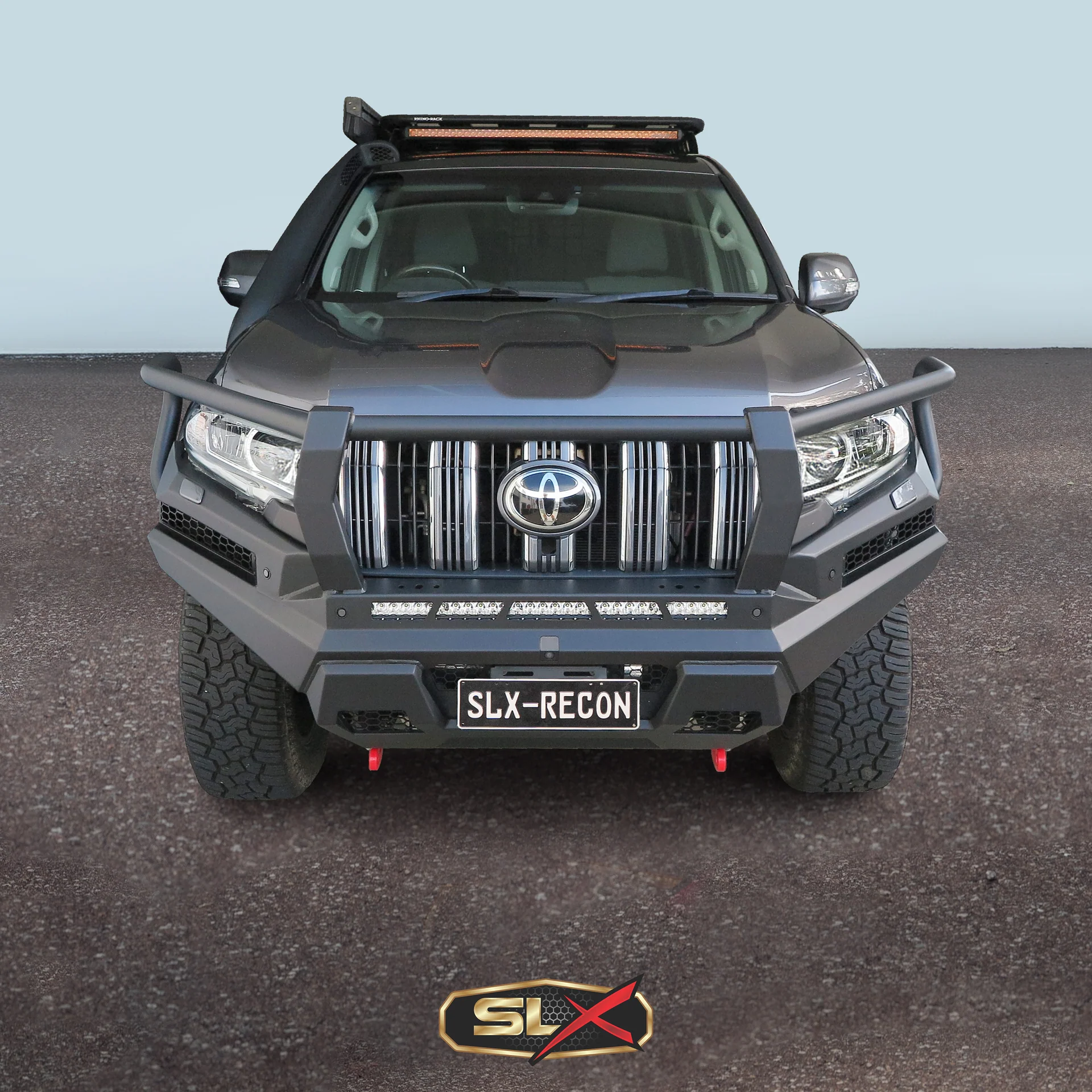

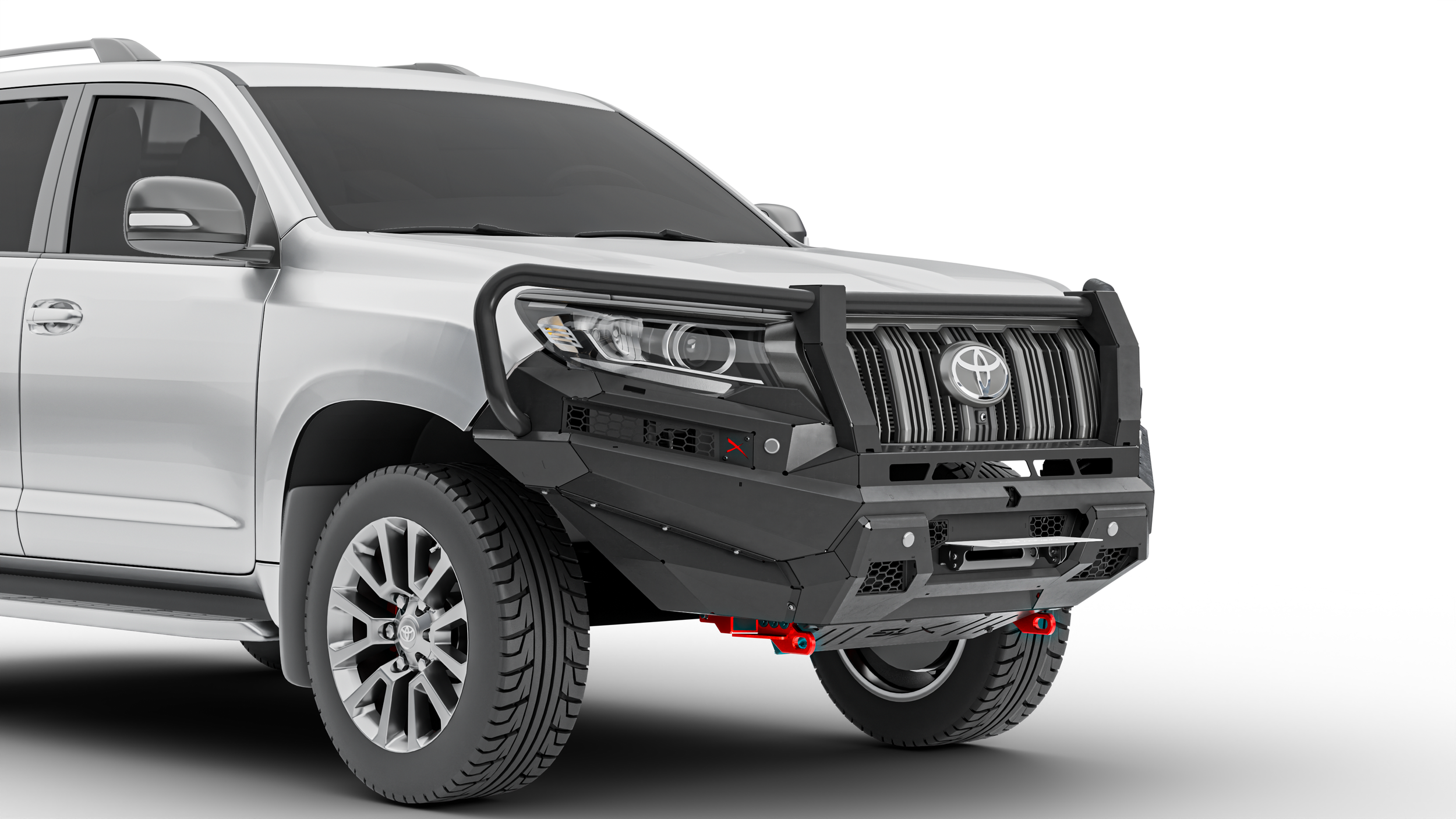

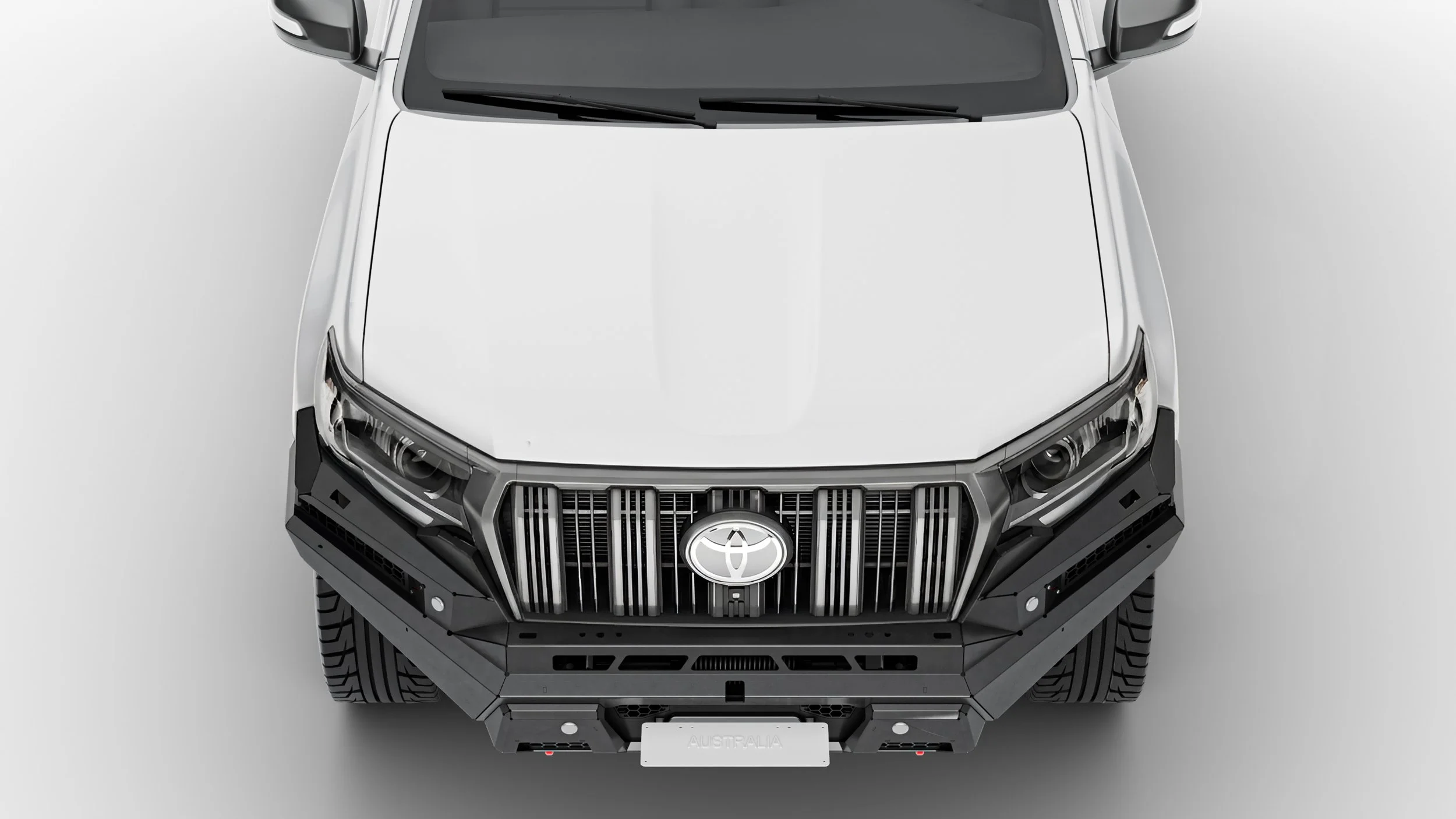

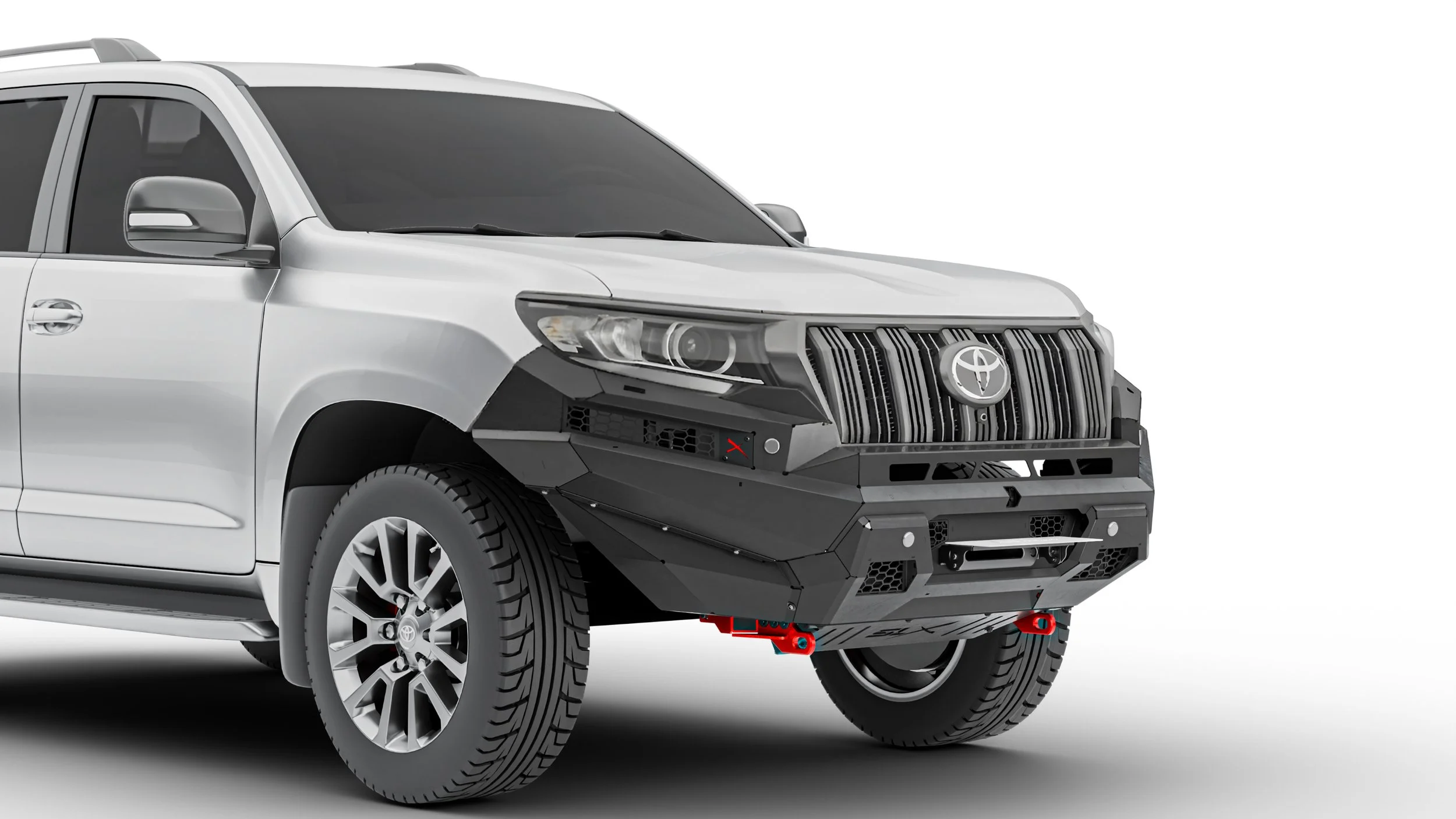

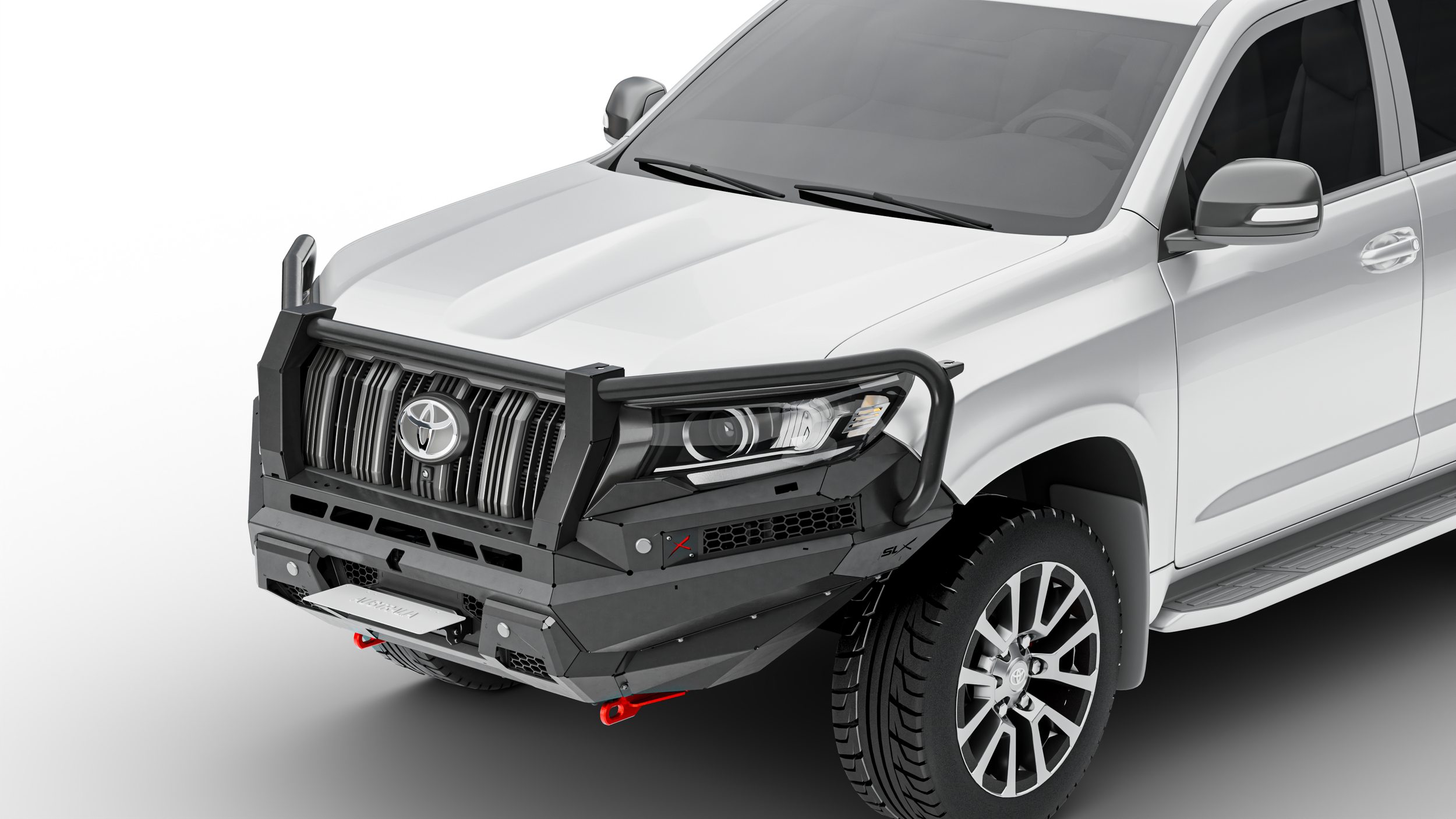

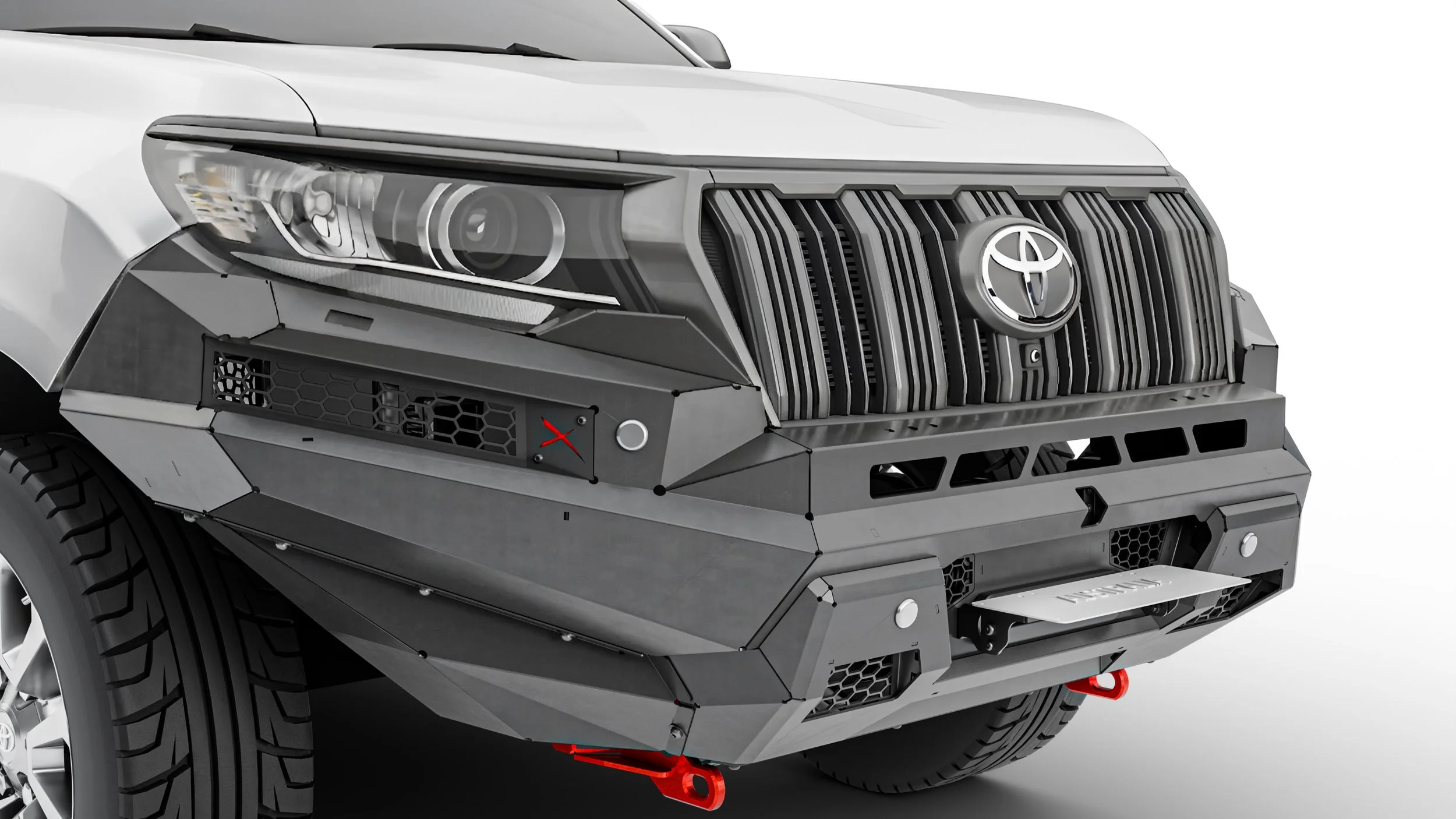

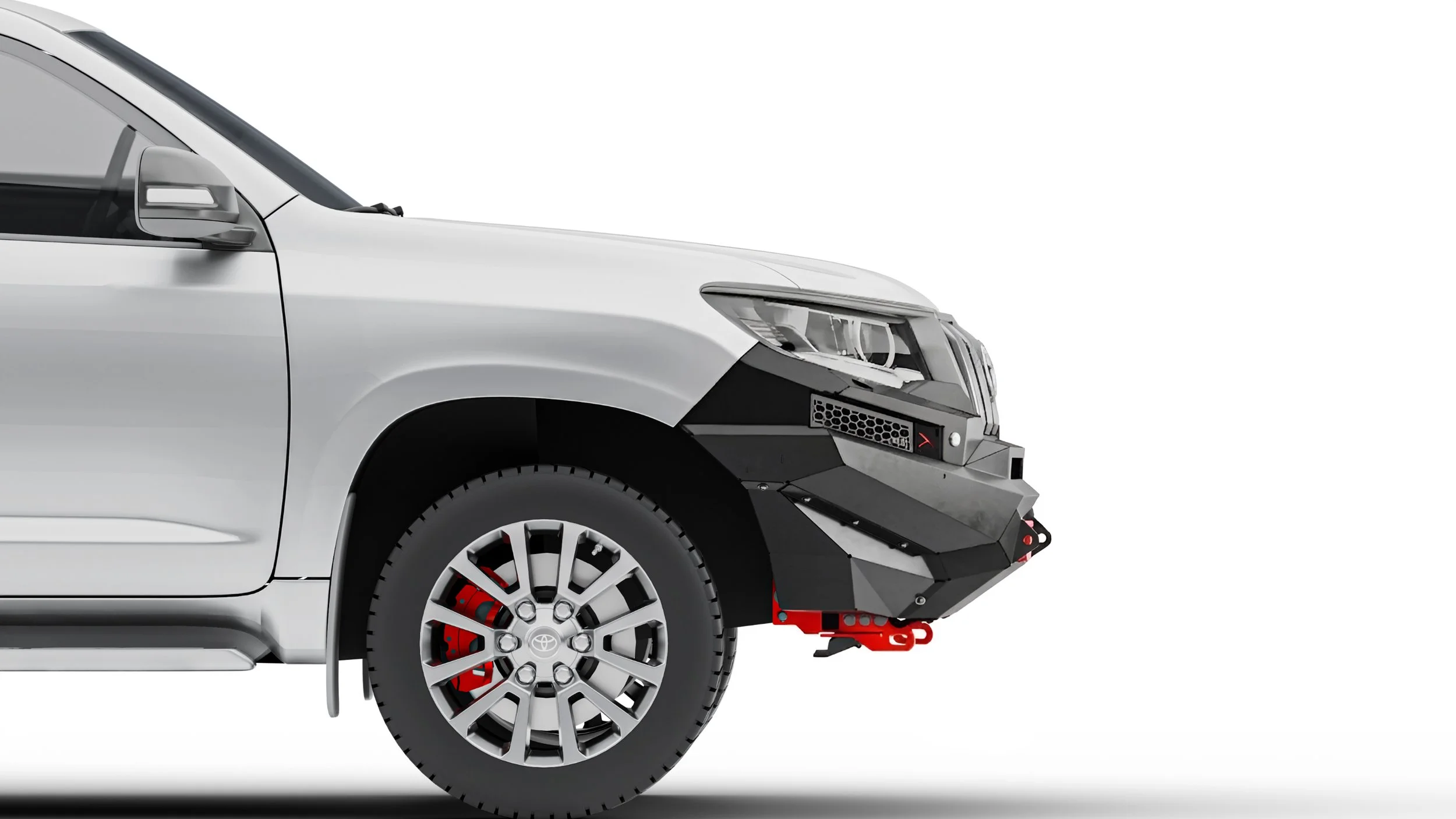

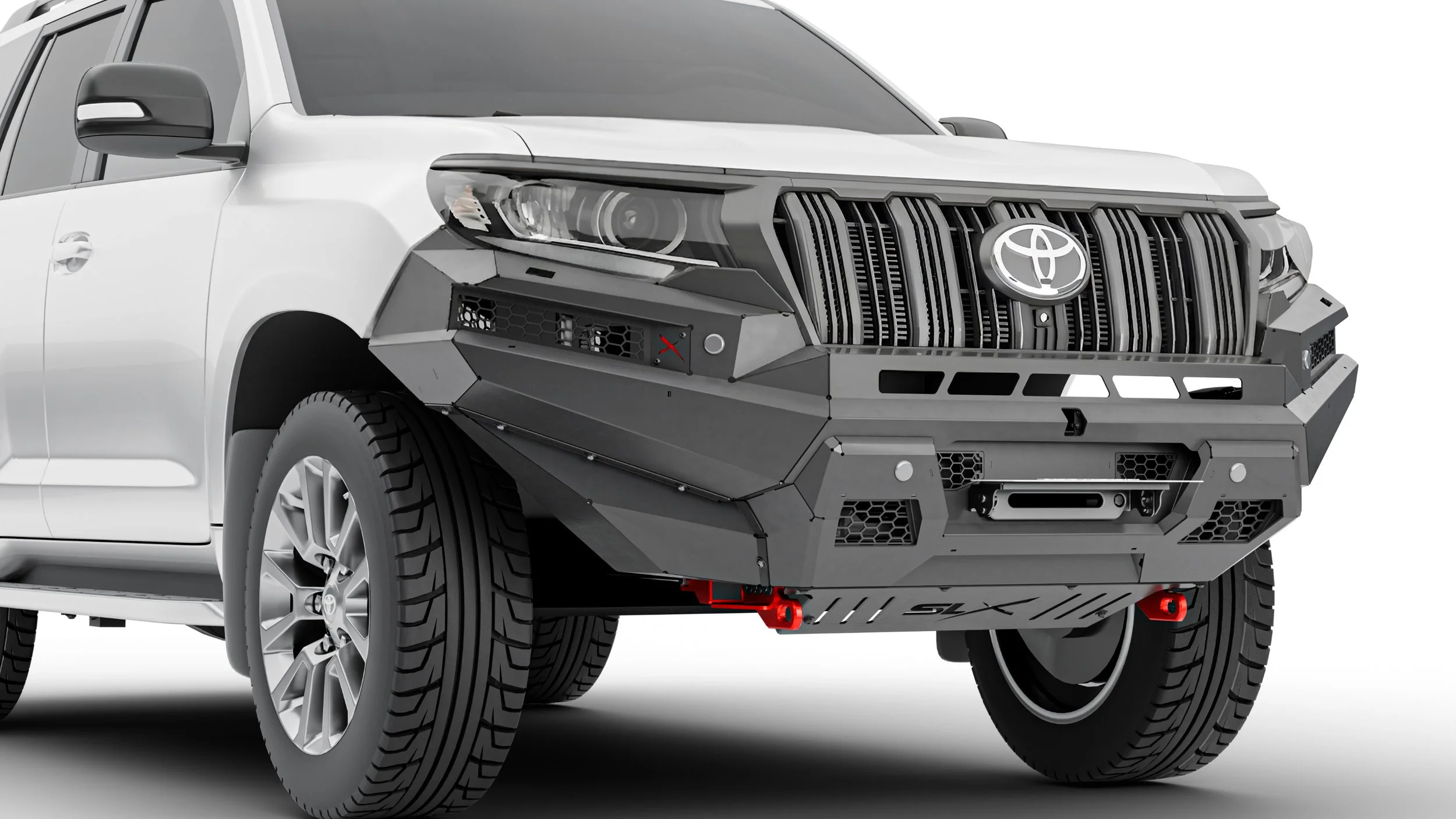

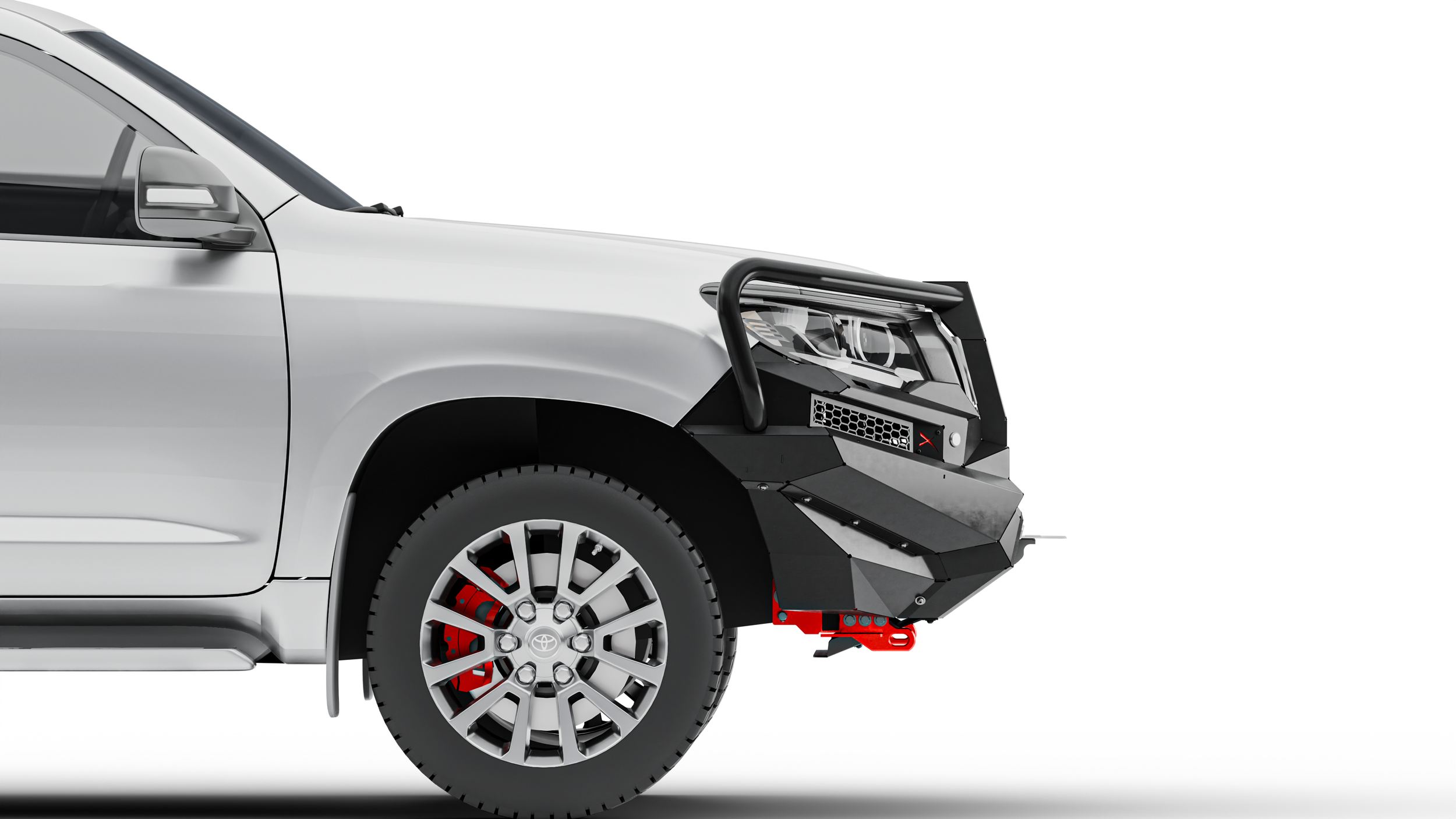

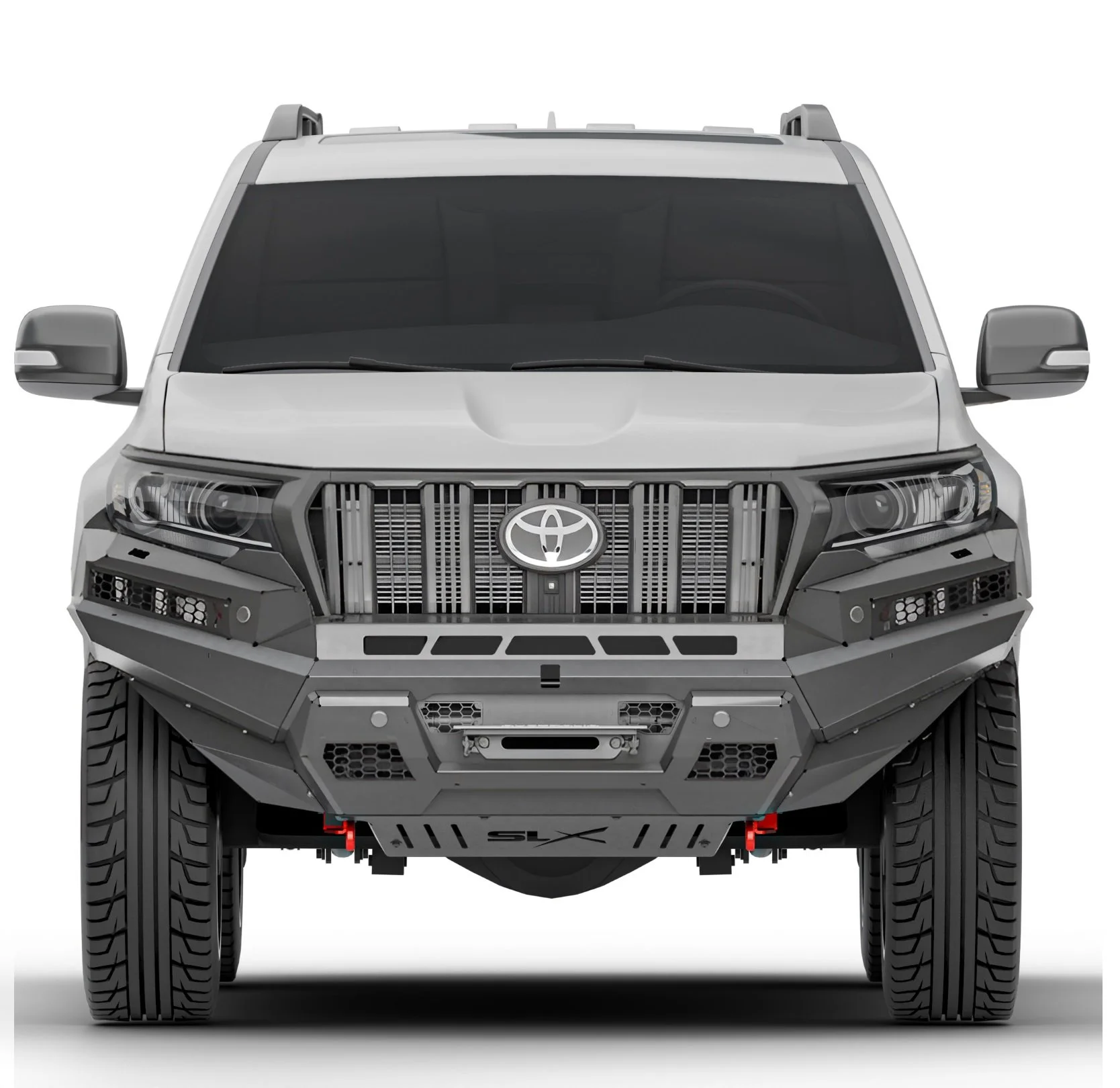

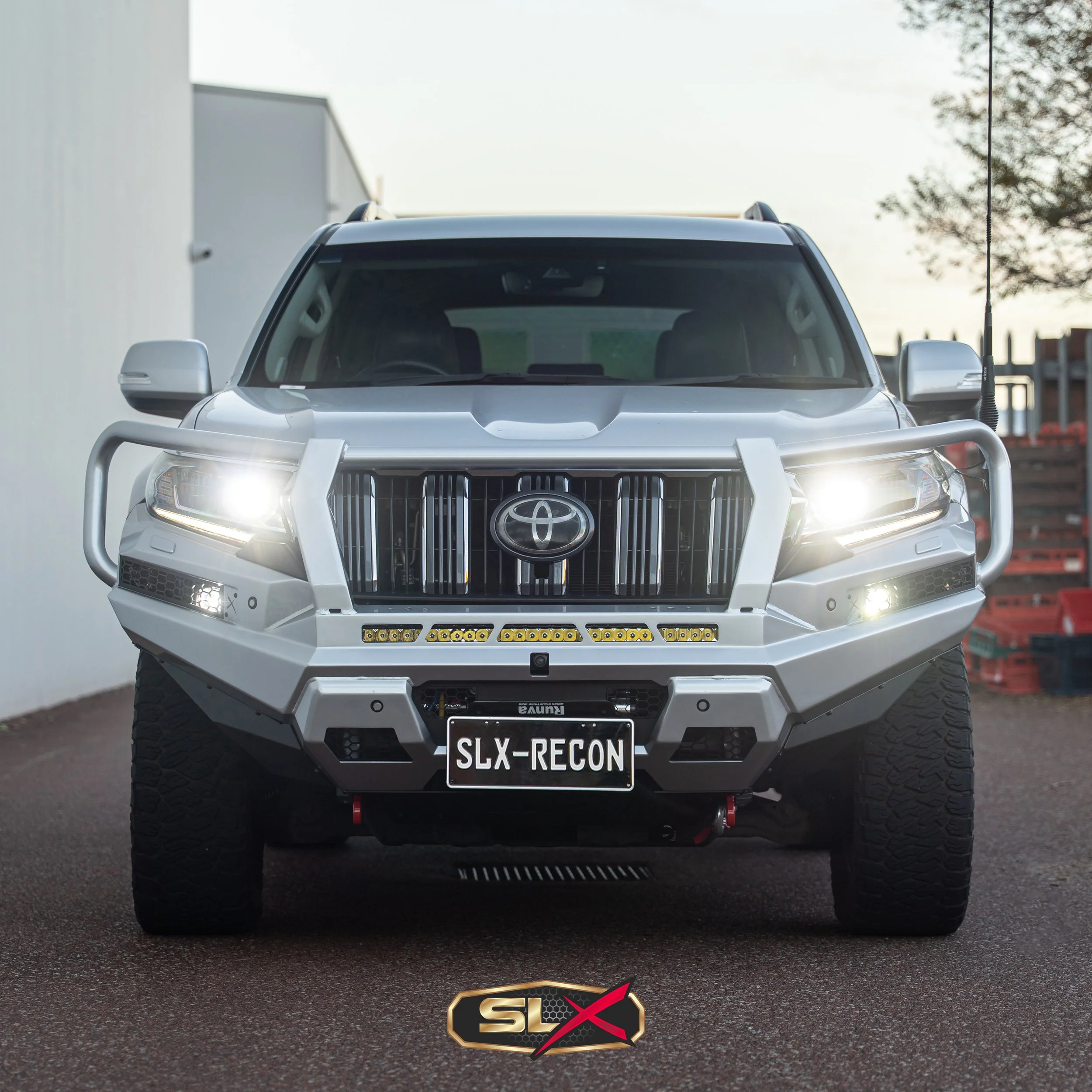

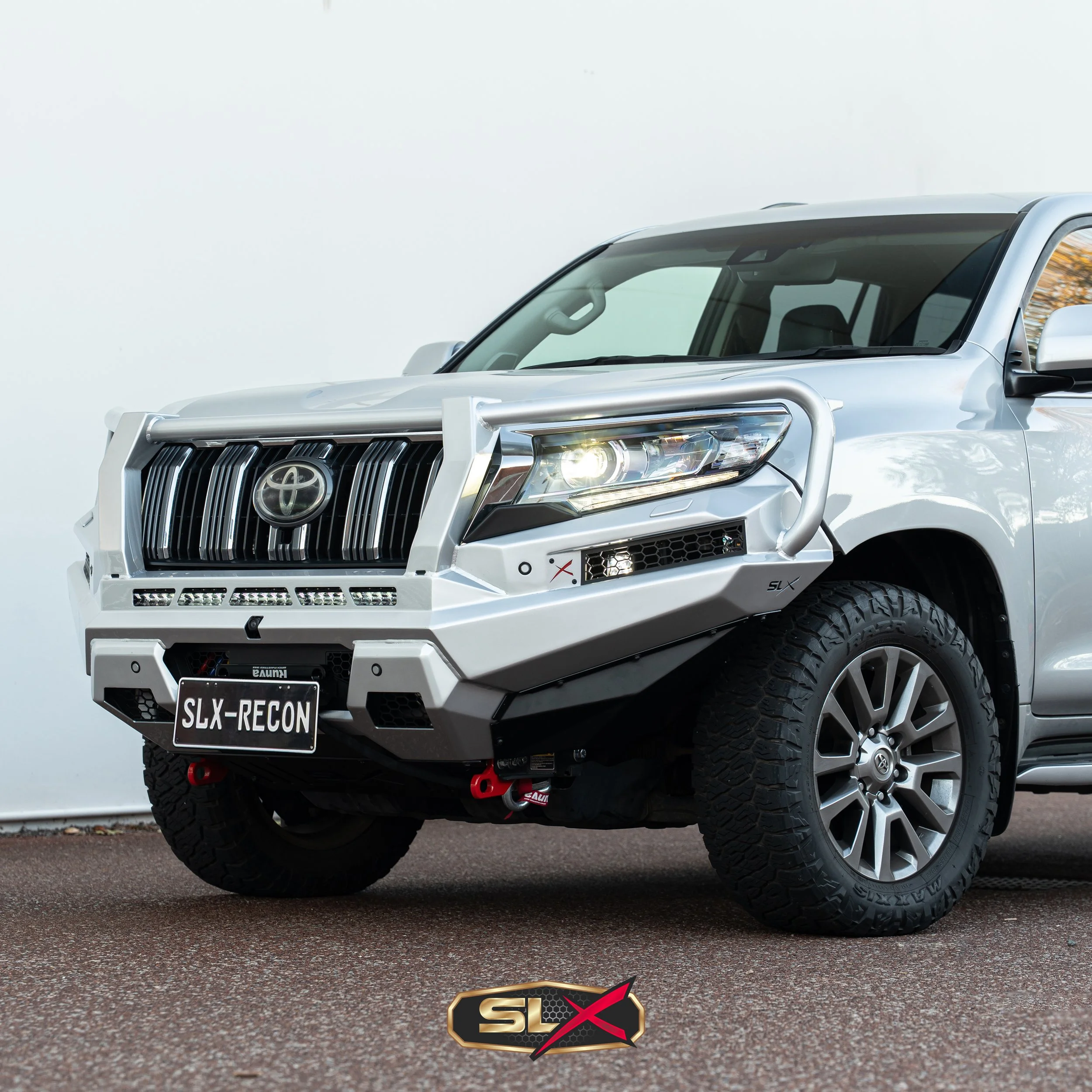

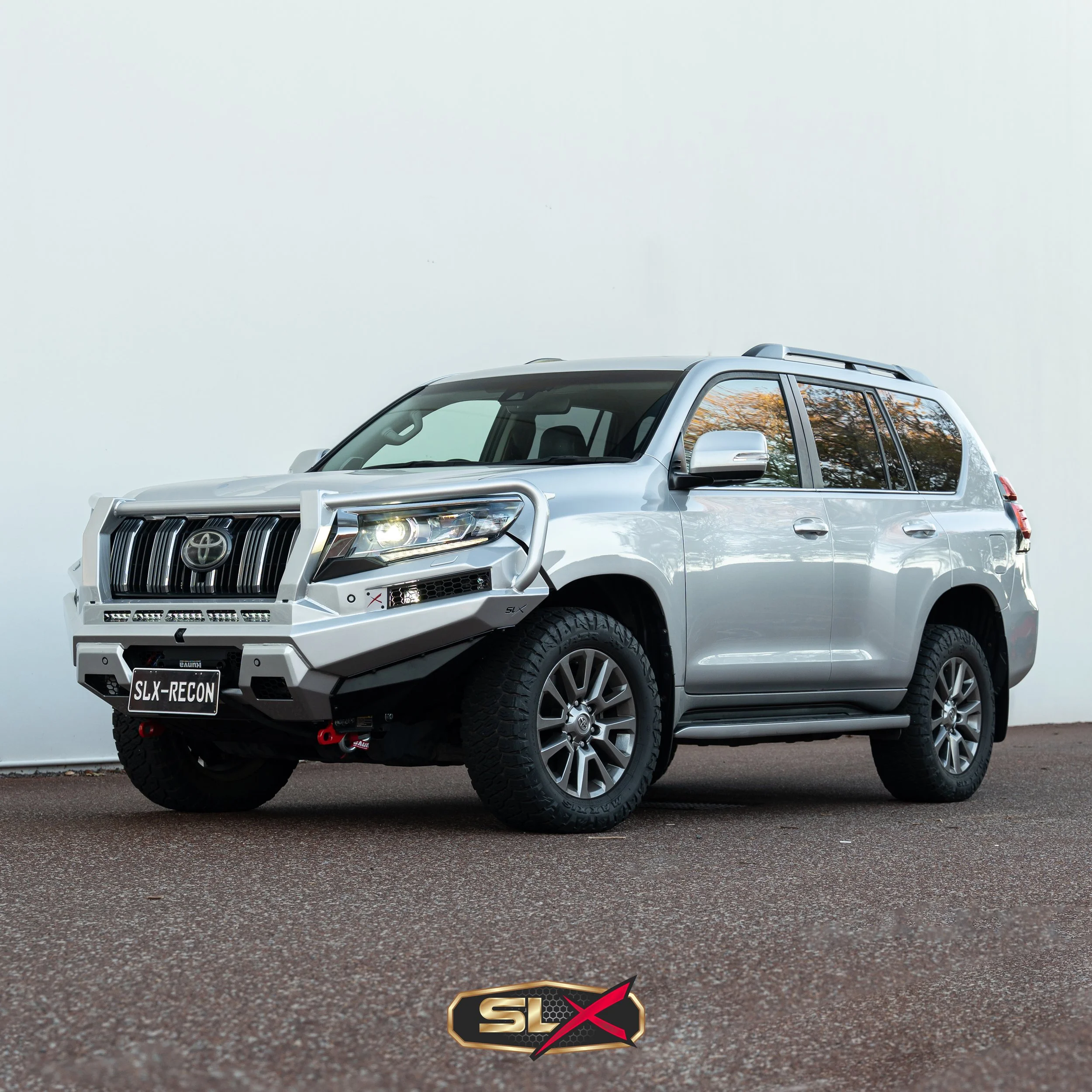

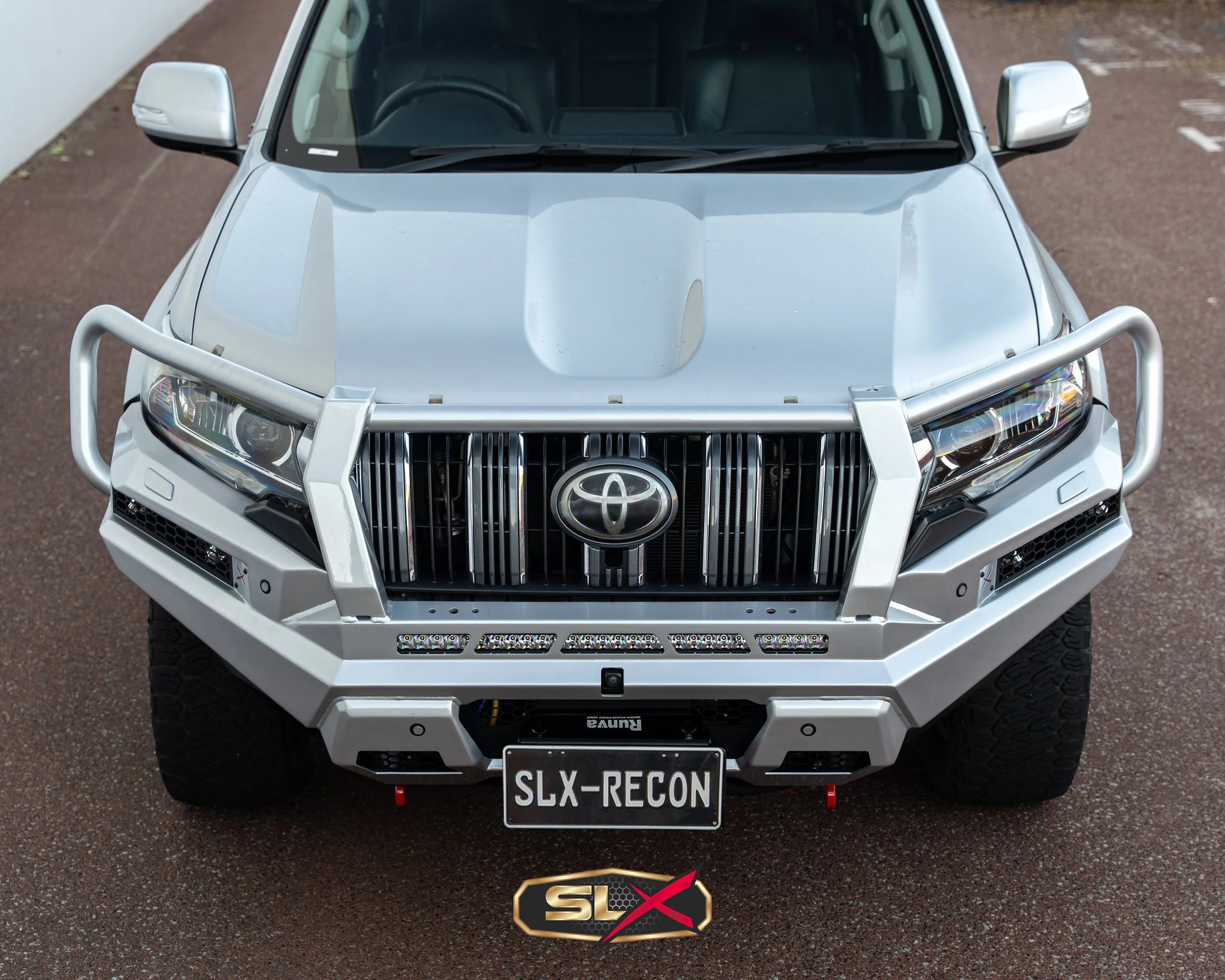

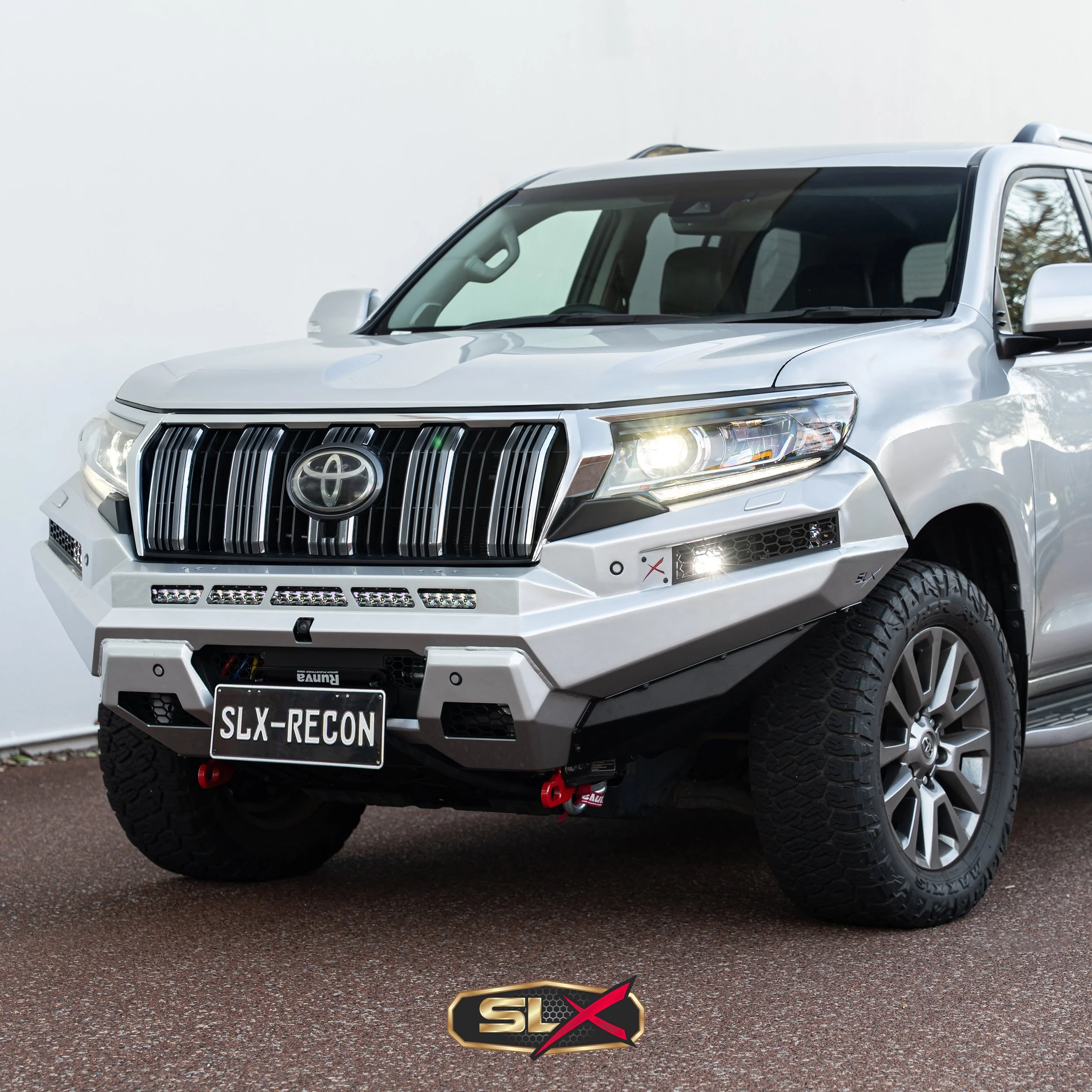

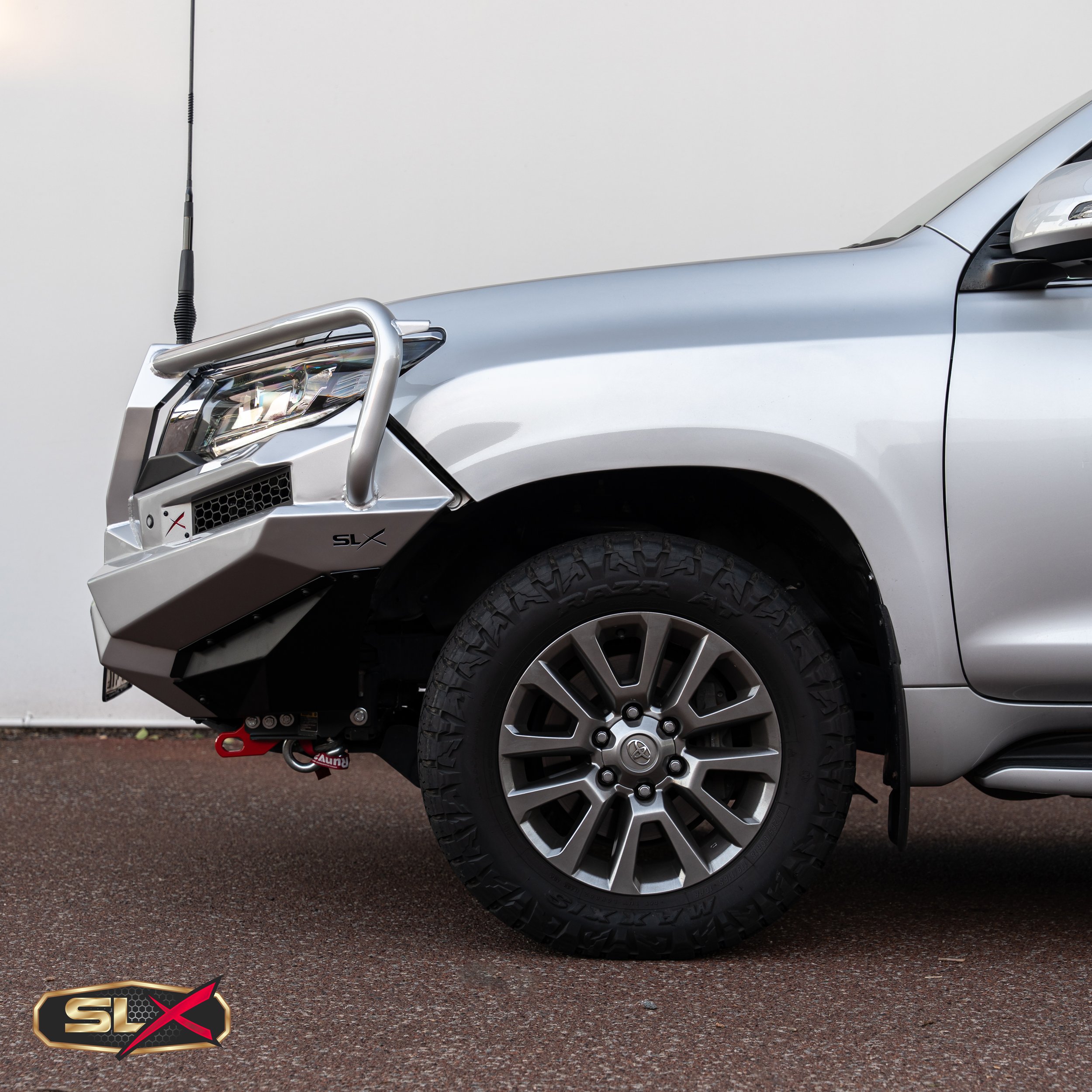

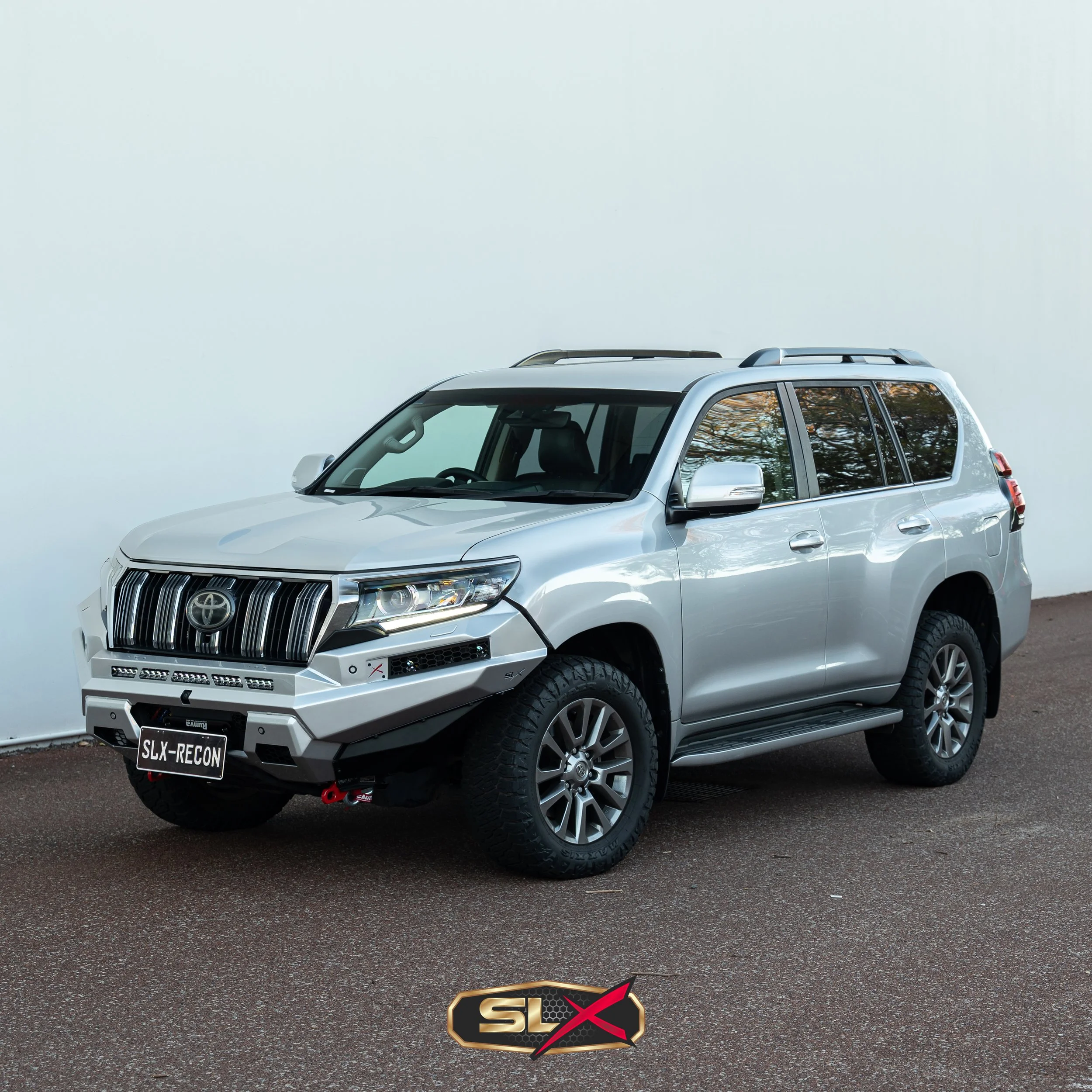

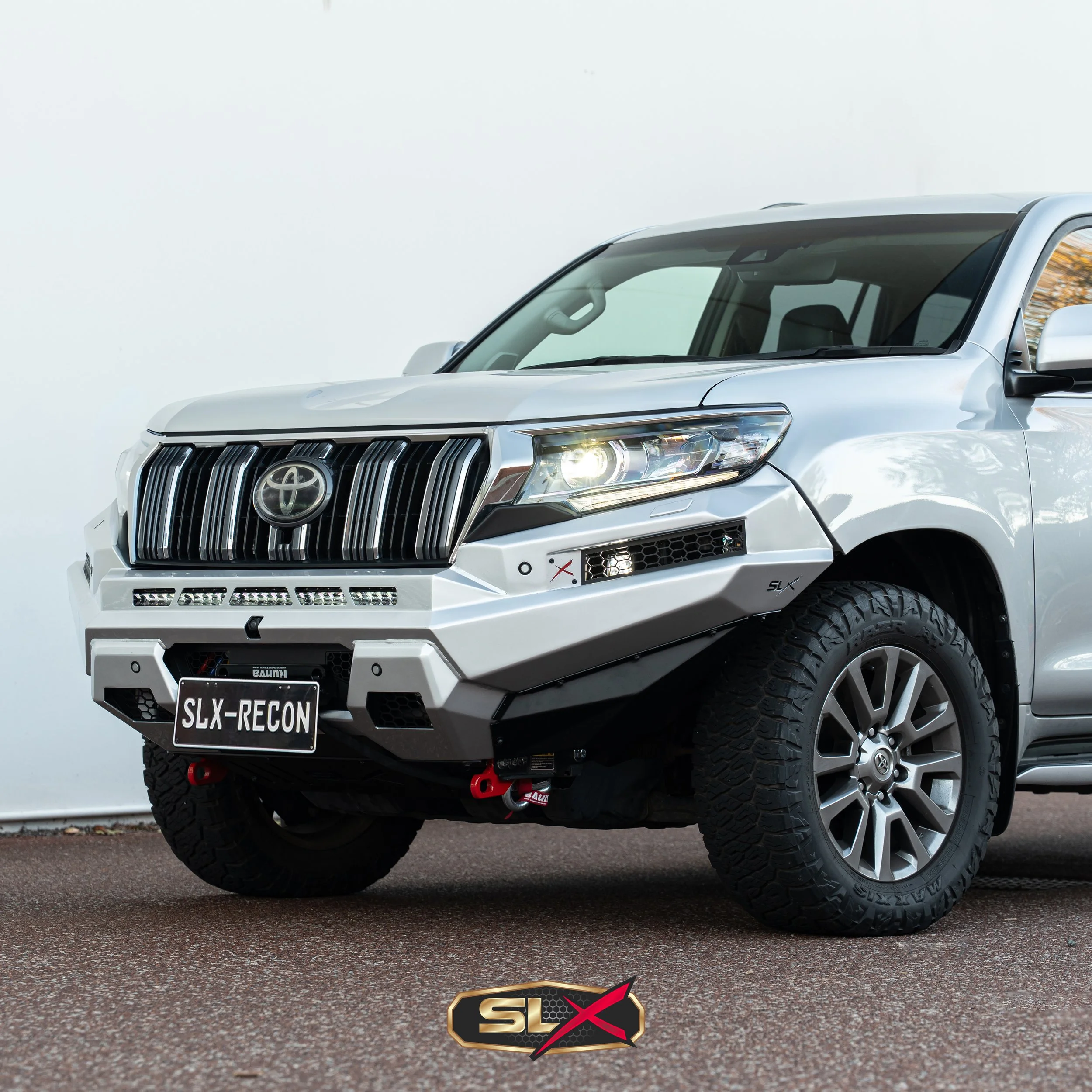

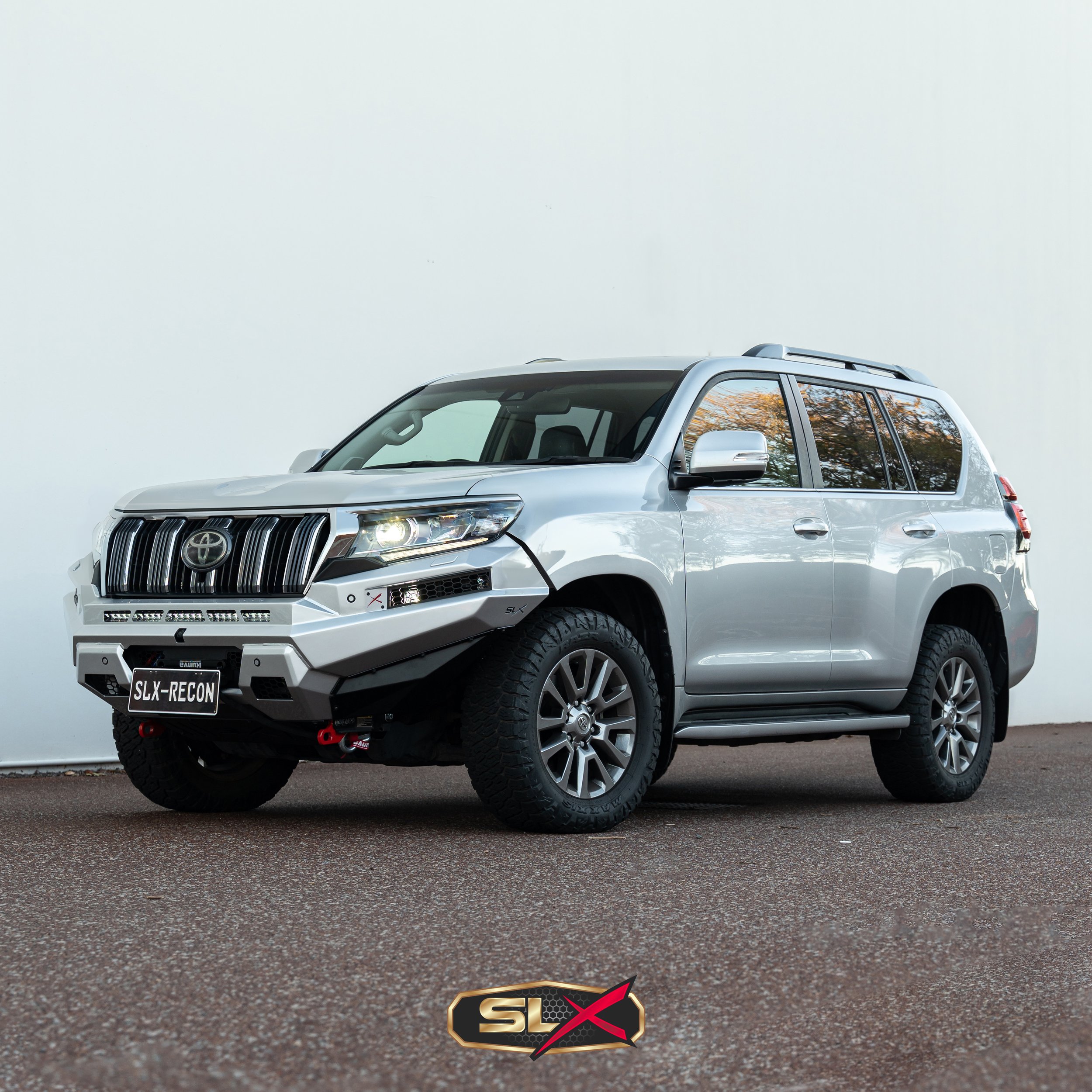

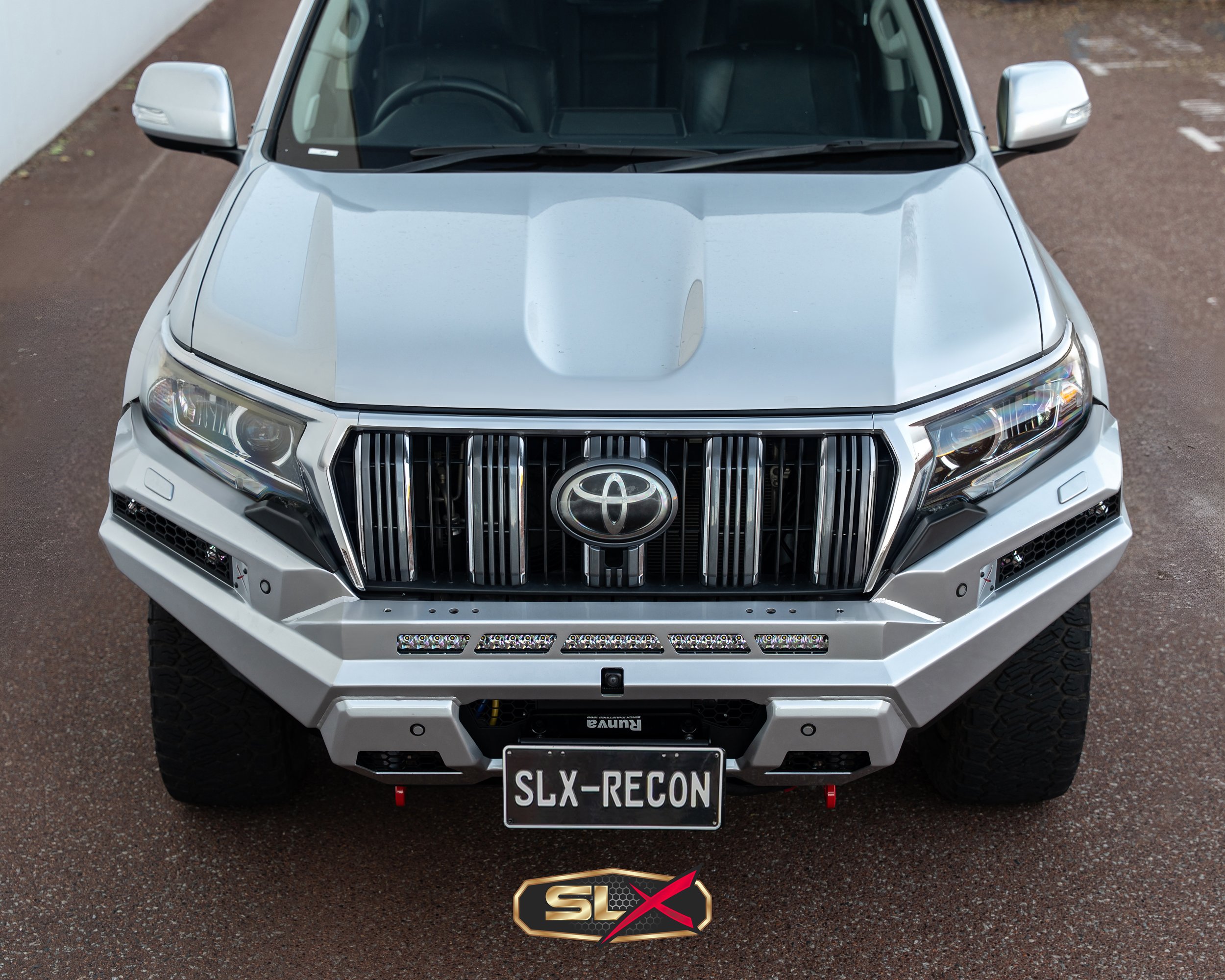

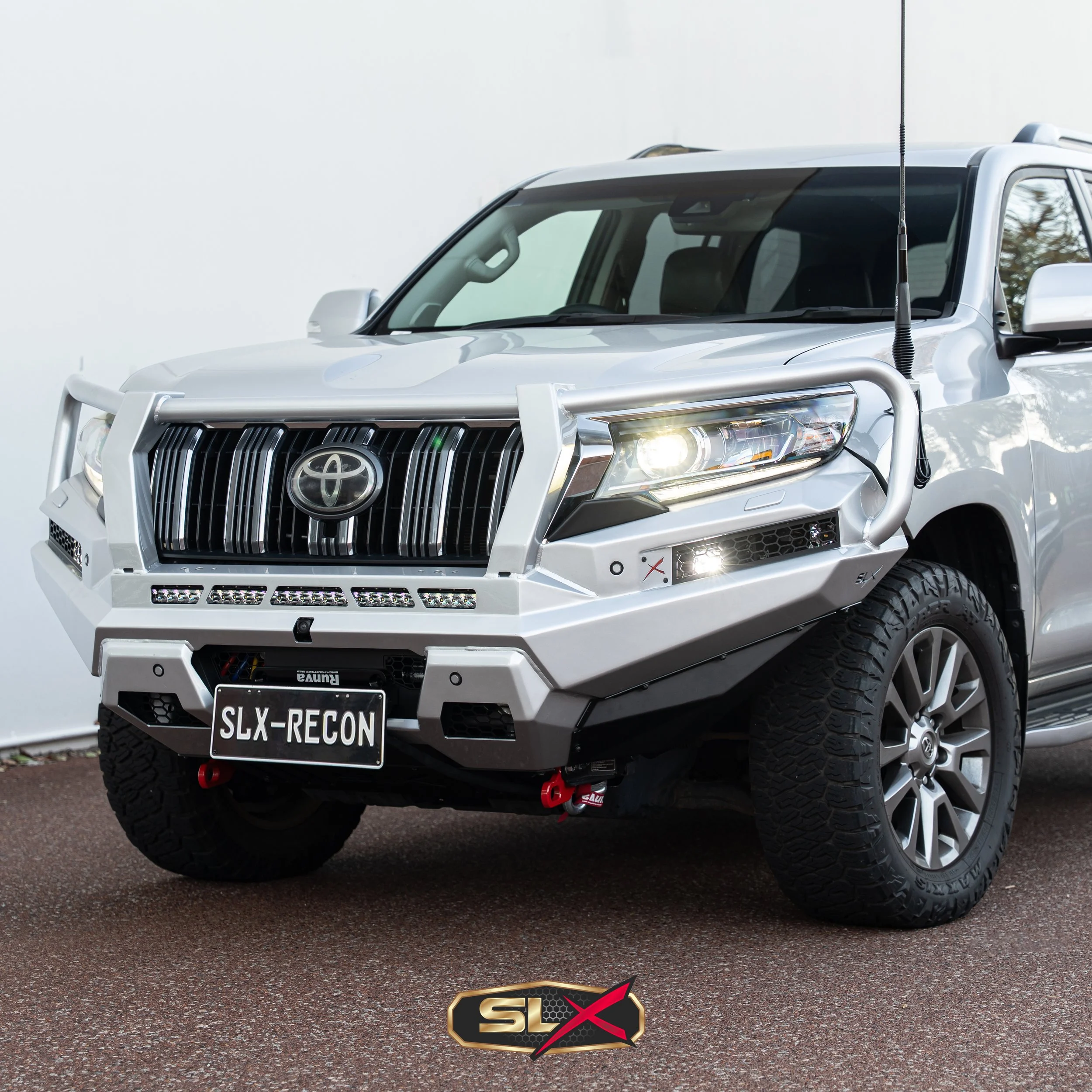

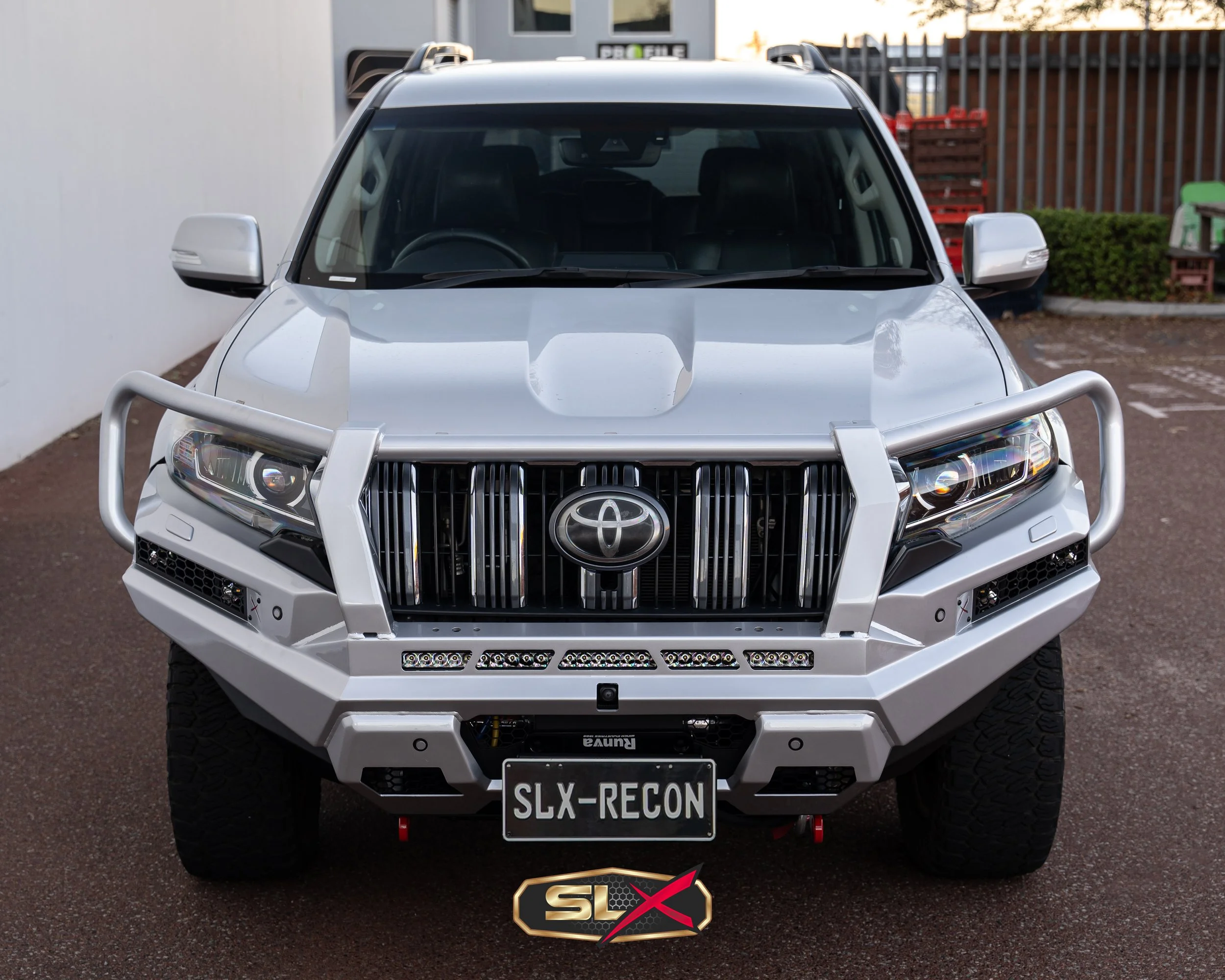

Toyota Prado 150 Bull Bar
Ultrasonic parking sensors relocated into the bullbar
The camera is relocated into the bullbar - Full Visibility
Safety Systems Integration
Modern vehicles rely heavily on advanced driver-assistance systems, including ultrasonic parking sensors and forward cameras. The SLX Recon bullbar is engineered so these factory safety features continue to function exactly as intended after installation.

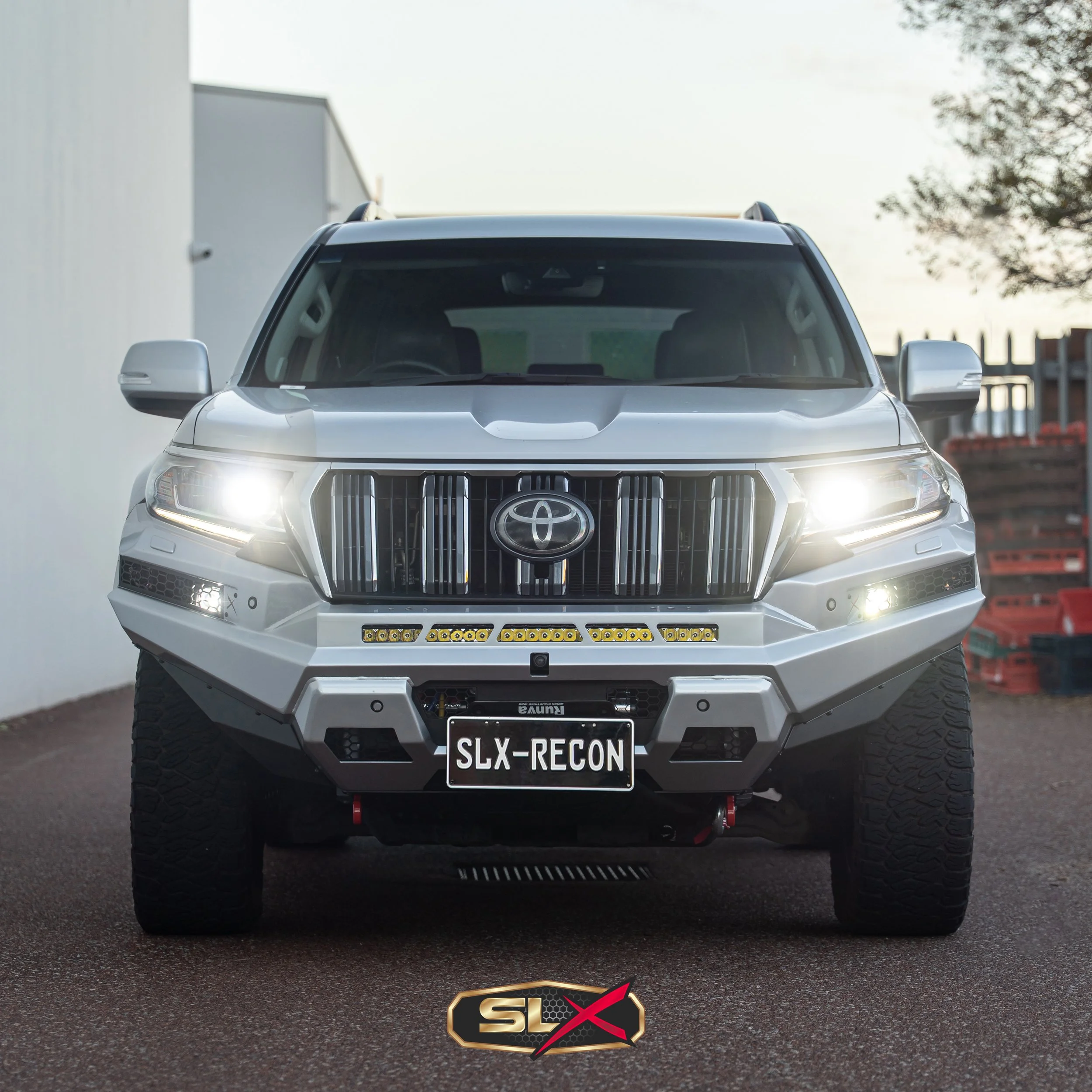

The SLX RECON Bullbar is designed to maximise lighting capability while maintaining full road compliance.

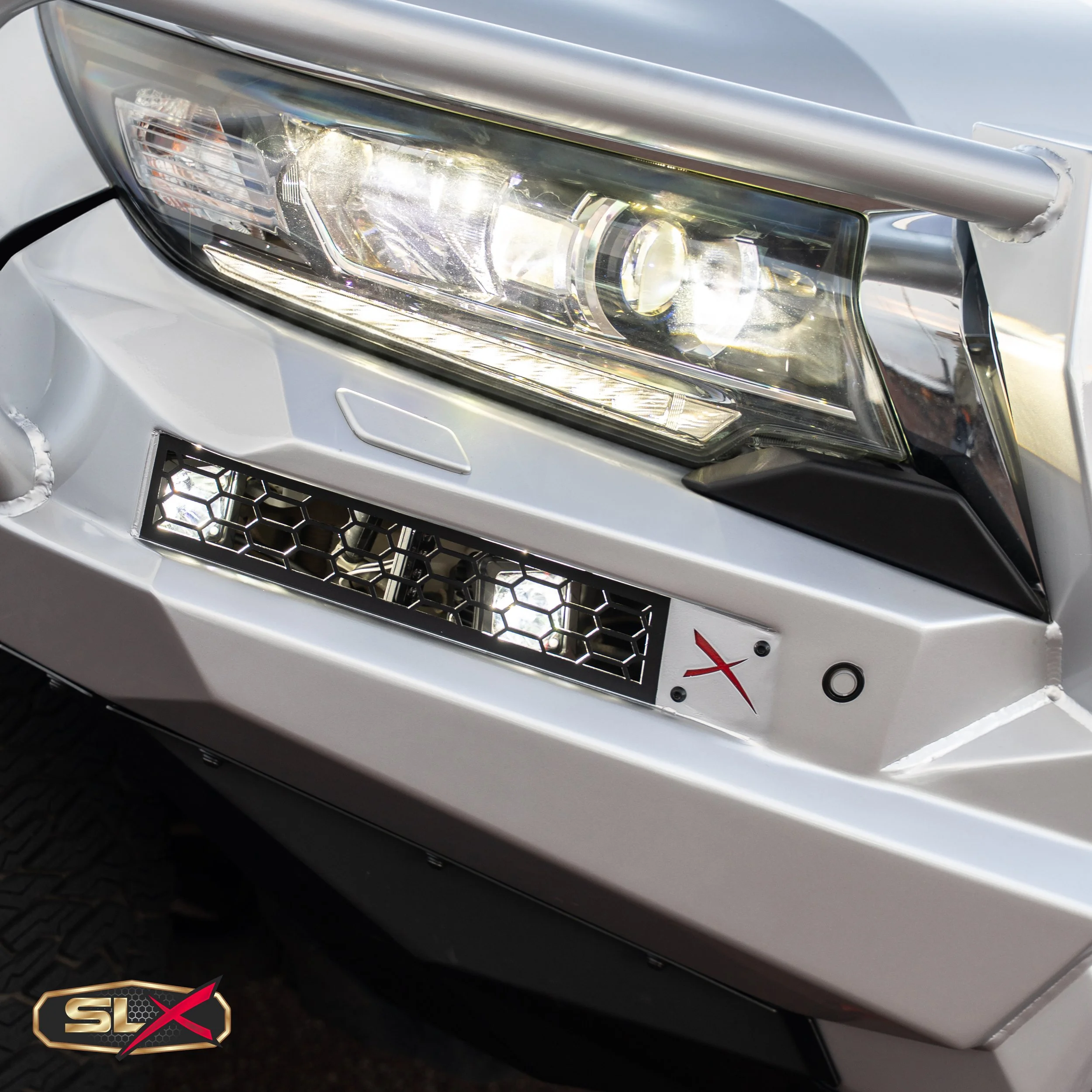

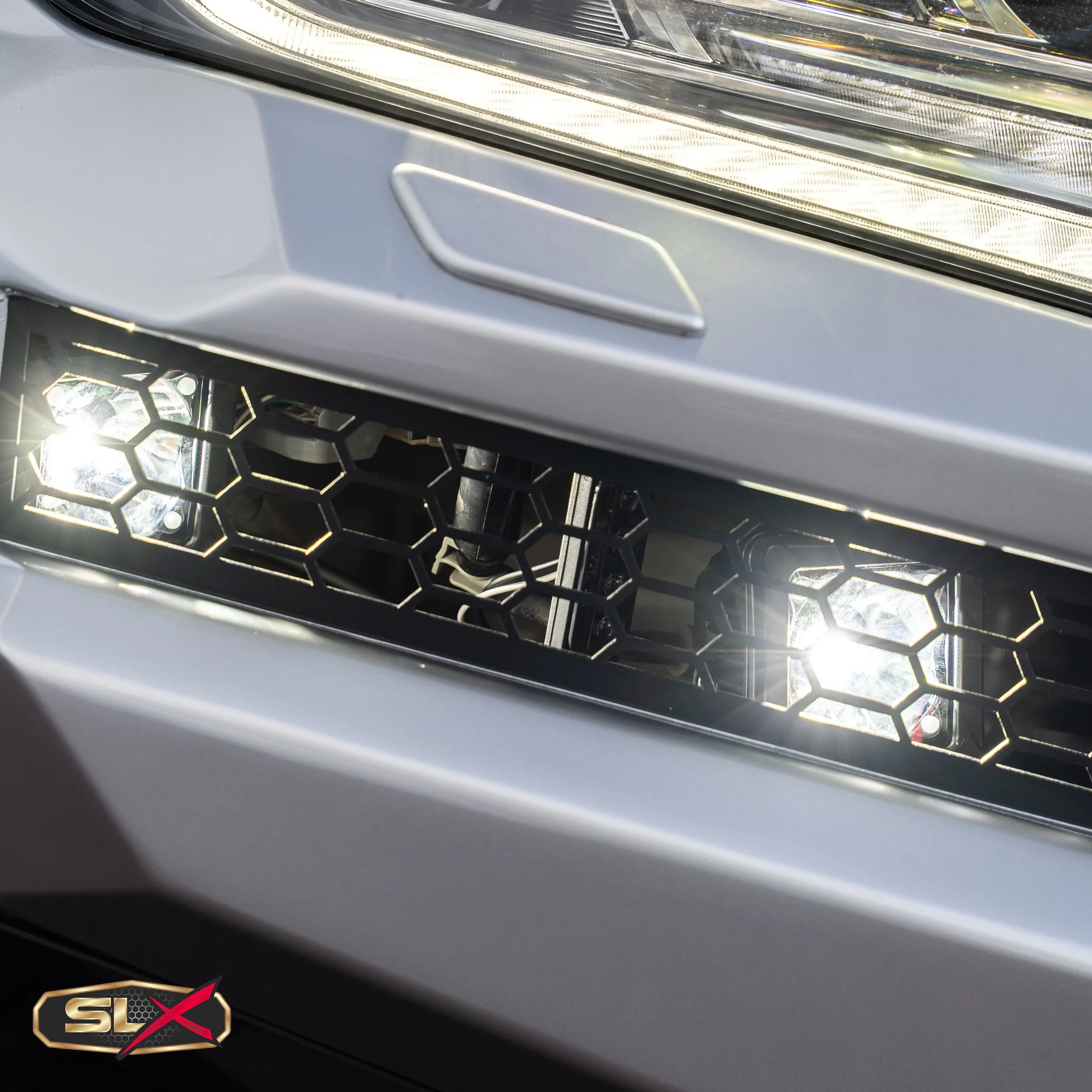

The bar incorporates four 30w auxiliary cube LED lights as part of the integrated lighting system.
Two of the supplied lights connect directly to the vehicle’s existing factory fog light circuit, ensuring seamless integration with the original controls.
The remaining two lights connect to the included plug-and-play wiring harness, allowing additional lighting performance while keeping the installation fully road legal.
Each LED unit also includes a dual-function capability, allowing them to operate as:
Fog lights
Indicators / turn signals
This provides additional visibility and functionality while maintaining a clean and integrated front-end design.
The lighting system is engineered to complement the 31.5" 6150-lumen LED bar, this provides up to 600 metres of forward lighting,
creating a complete lighting solution for touring, off-road driving and everyday use.
Additionally laser cut outs are included ontop of the bullbar surface for additional 7 or 9 inch spotlights
Full LED wiring Harness Included
Designed in WA
Complete bar & Winch Cradle: 63kgs
Bash Plates : 10kg
Recovery Points: 7kgs
LED 4x 30W : 1kg

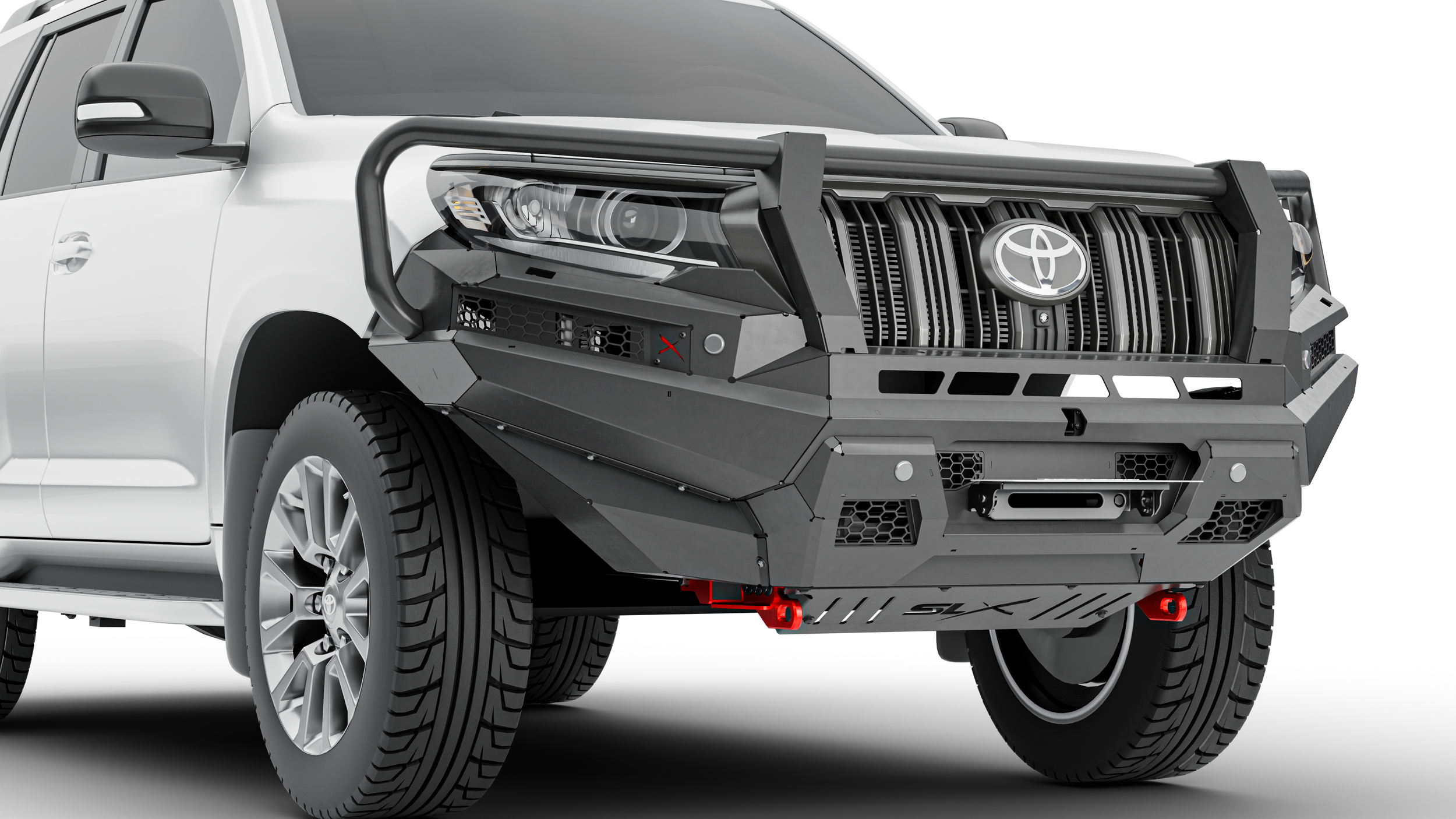

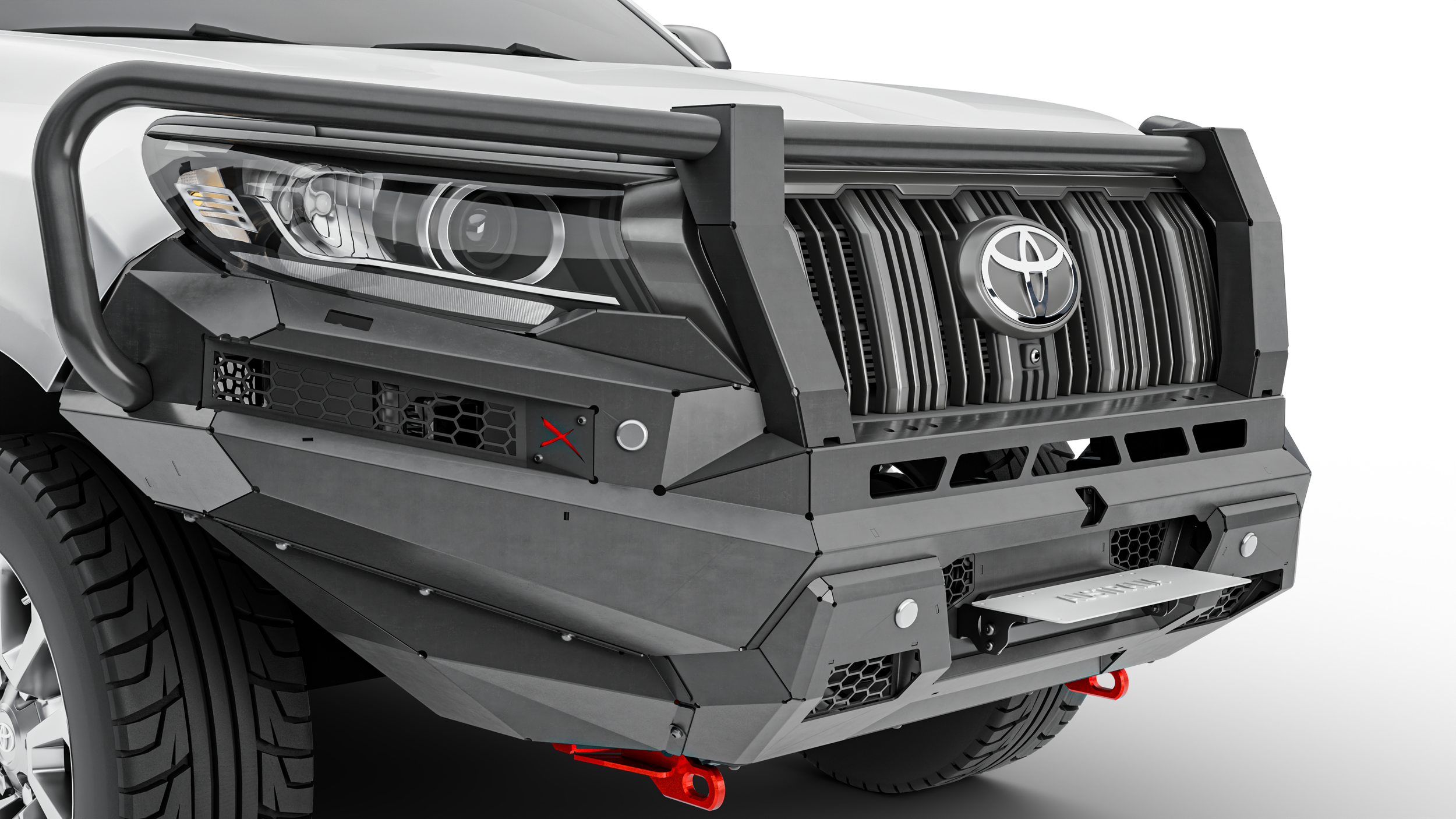

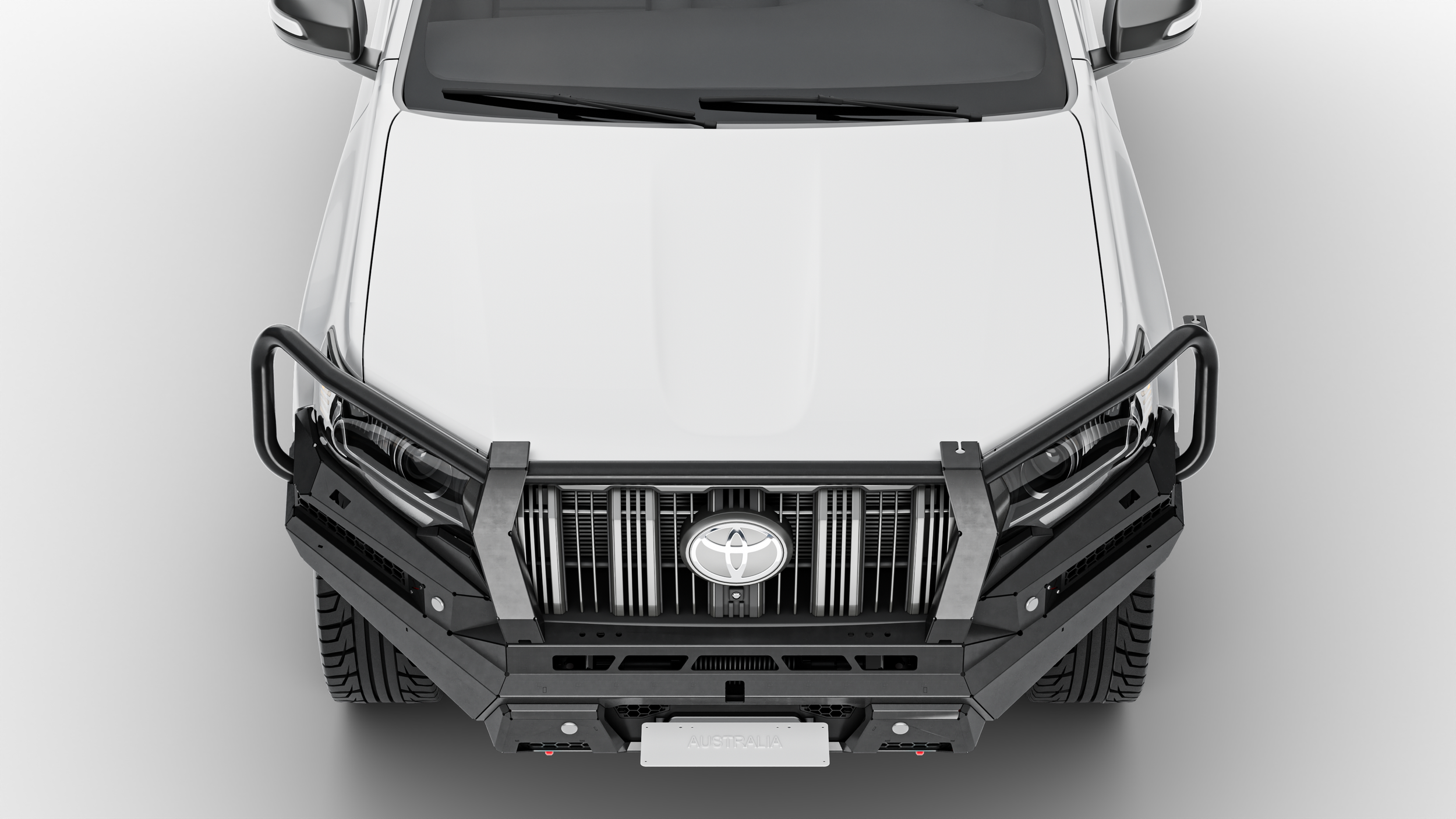

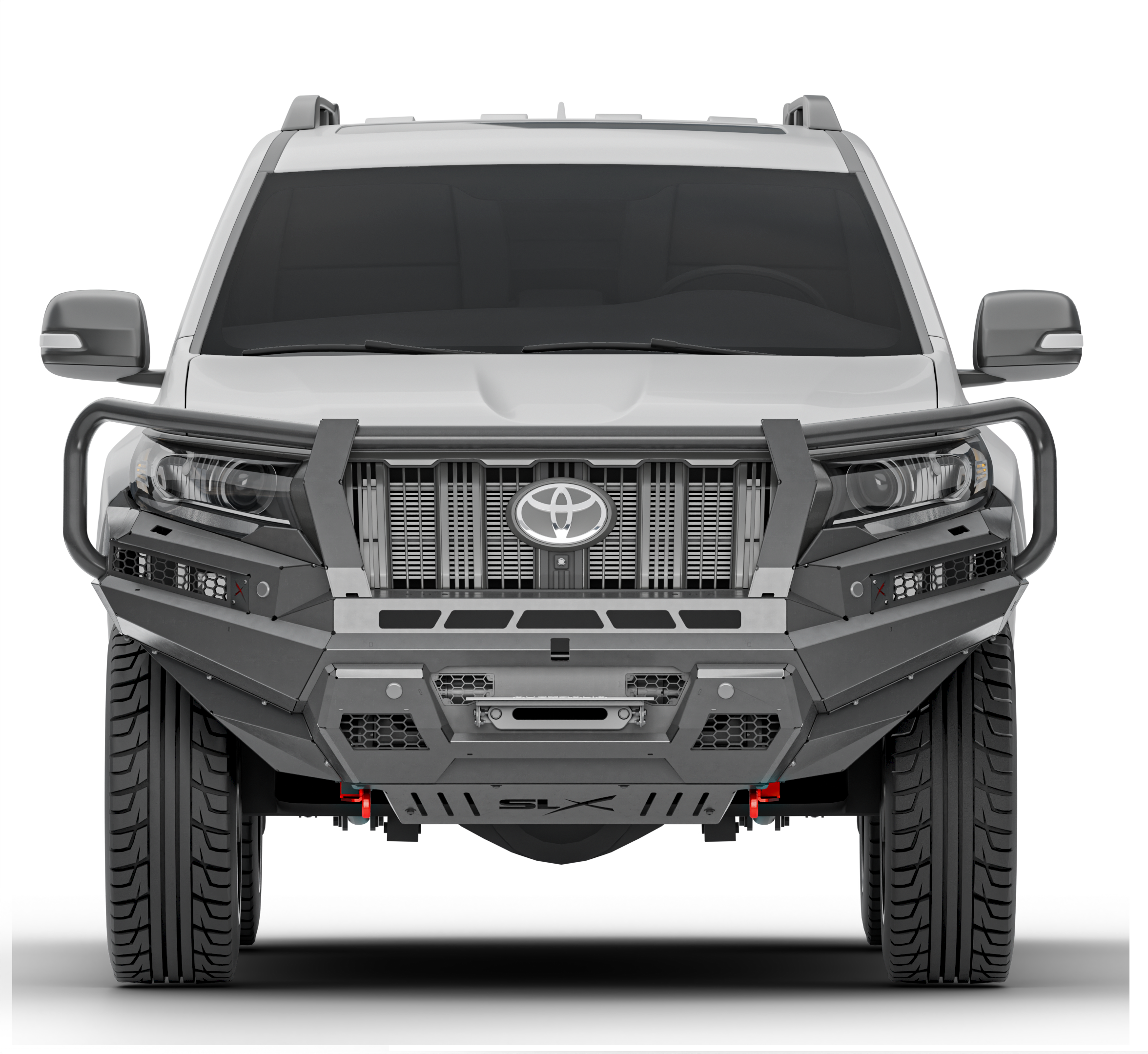

Total Weight of product (with recovery points): 81kgs Triple Loop

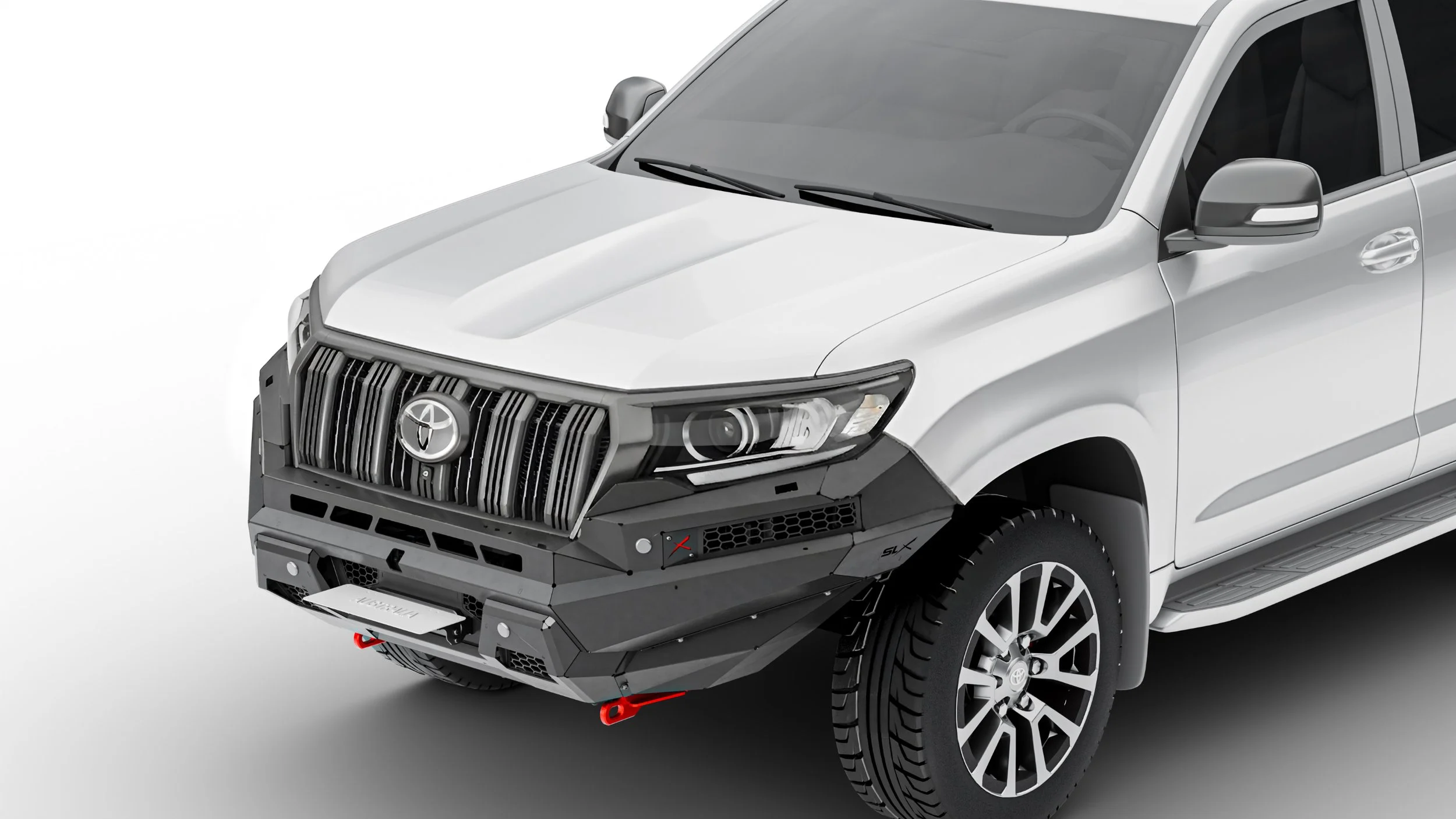

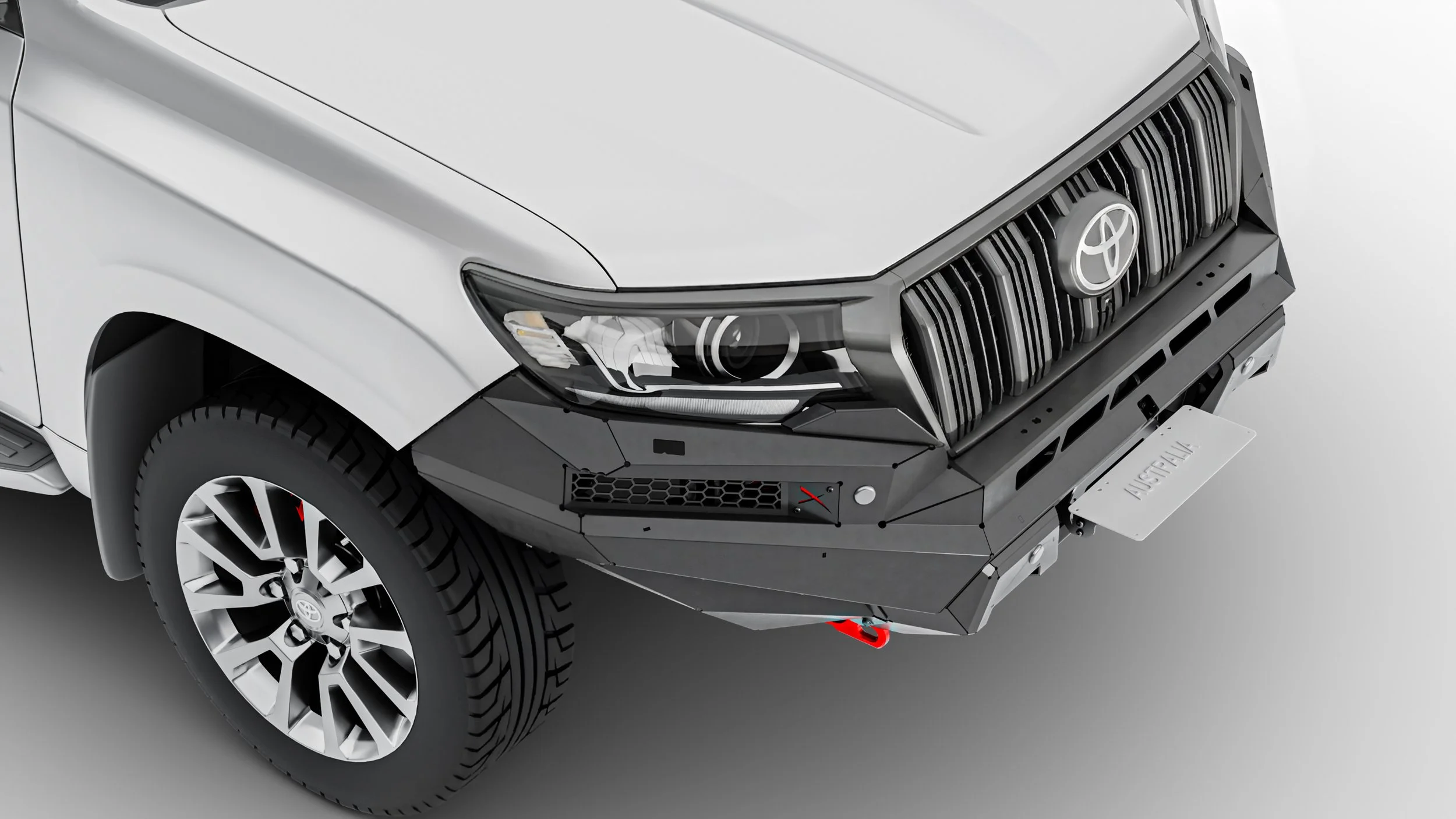

Total Weight of product (with recovery points): 71kgs no Loop
Removal of misc parts when fitting: 23kgs
Total weight added to vehicle: 58kgs / 48kg
Structural Weight
Engineering & Specifications
High-strength SS400 structural steel
CNC laser cut steel for precise, repeatable component accuracy
Robotic welding for consistent structural strength and penetration
CNC press brake forming with controlled bending to eliminate spring-back
Millimetre-accurate tolerances through computer-controlled fabrication
12-stage acid dip and chemical preparation process prior to coating
Industrial primer & top coat Matt powder coat finish for long-term corrosion resistance
Salt spray corrosion testing to verify coating durability
Structural bending and load testing
Modern CNC machining and fabrication equipment used throughout production
Manufacturing
ADR69 Crash Impact Tested V Bend Bracket
AS4876.1 2002
Section 5 to ADR 92/00 External projections
Clause 6.5 to ADR 43/04 Vehicle configuration and dimensions
Section 5 of ADR 93/00 Forward Field of View
Clause 6.6 to ADR 43/04 Vehicle configuration and dimensions
Design Compliance & Technical Standards
Compliance
What Sets Us Apart
Auxiliary Lighting
Equipped with 4 × 30W LED lights standard, with the option to integrate a 31.5” LED light bar and spotlights simultaneously + All Wiring.
The SLX Recon delivers one of the highest lighting outputs available.
Superior Airflow
The SLX Recon bullbar for the Toyota LandCruiser 300 Series (LC300) is designed with large mesh openings and a high-flow front profile to maximise airflow to the radiator and inter-cooler.
Western Australian Engineering Driven Design
The SLX Recon is designed in Perth, Western Australia and Manufactured at the most elite plant in Thailand.

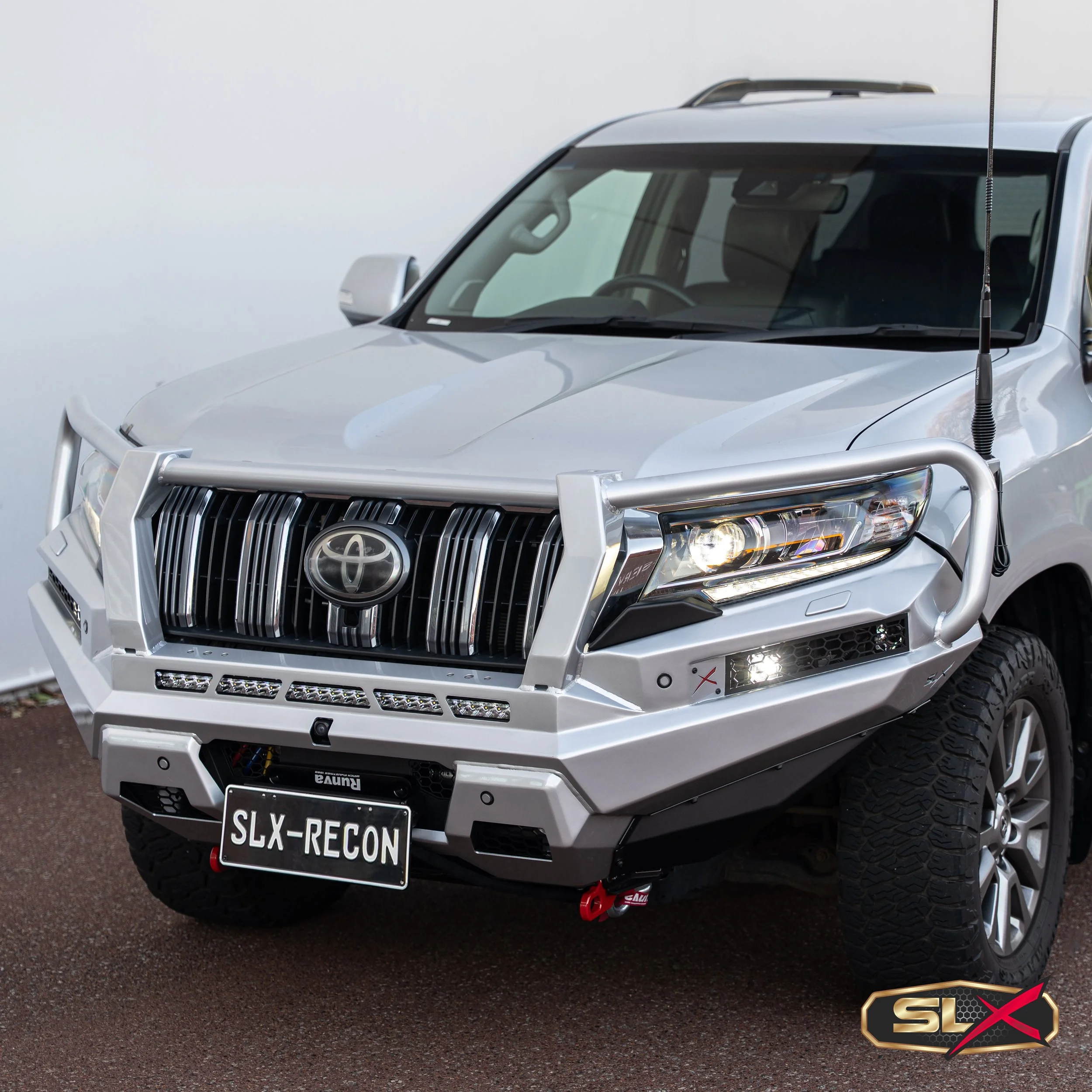

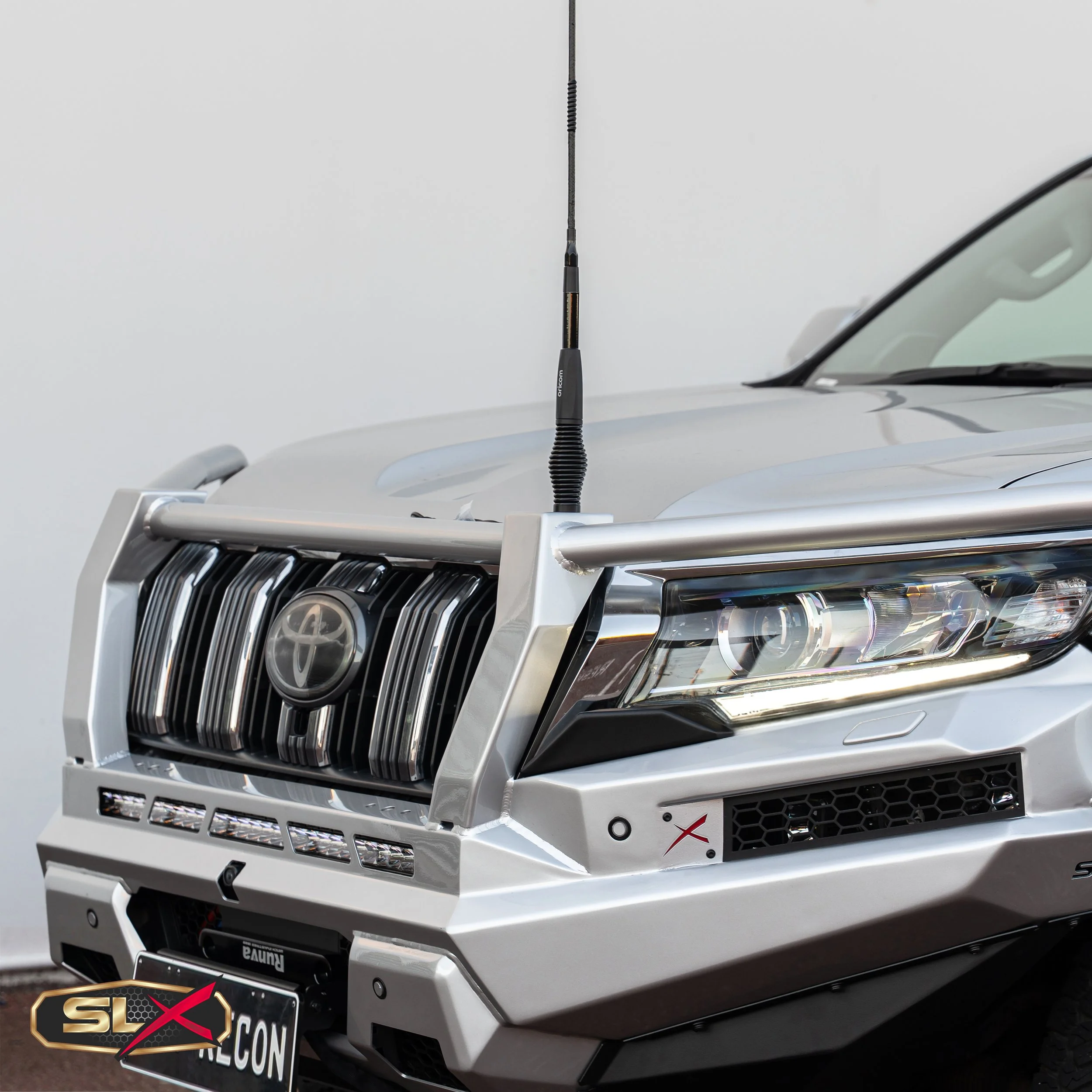

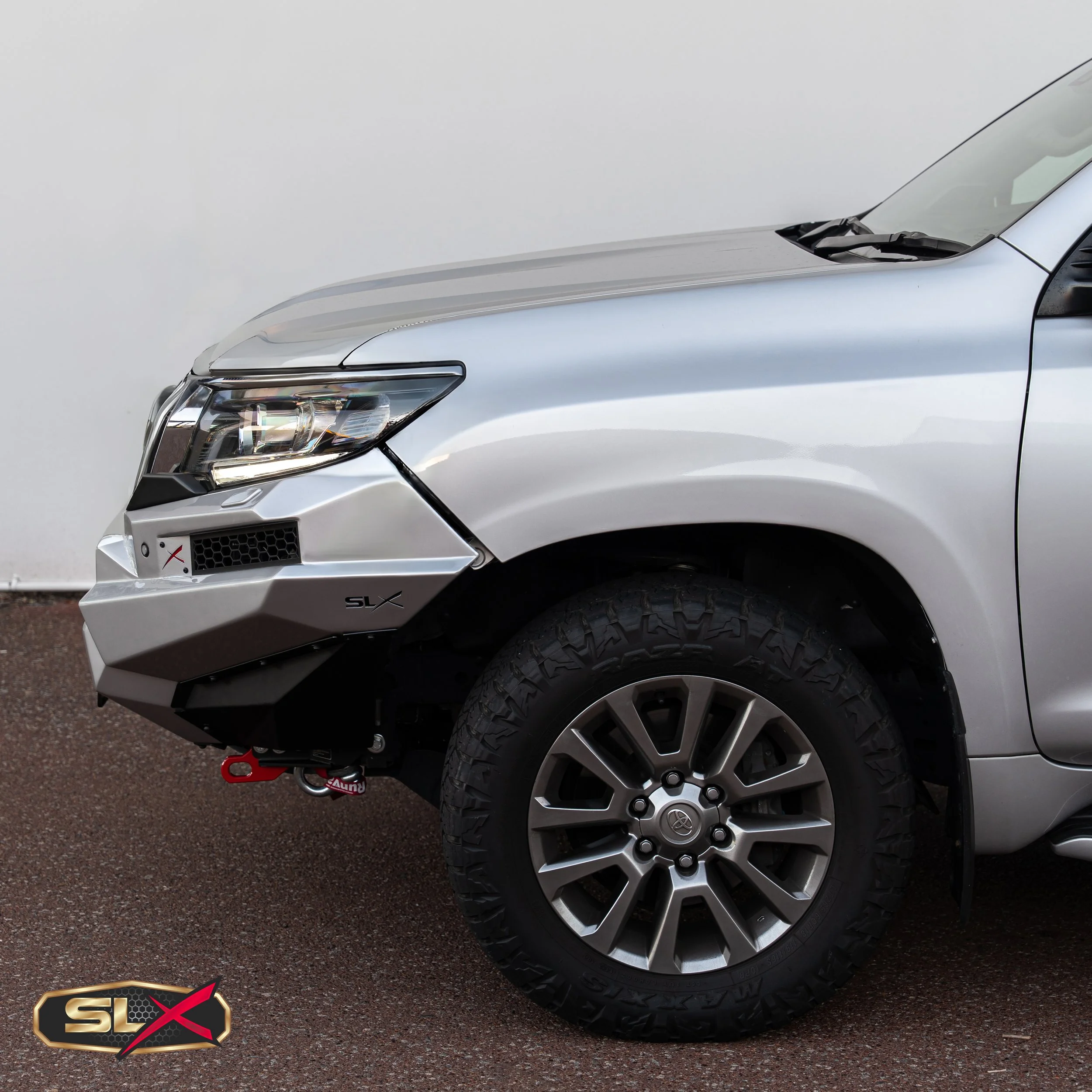

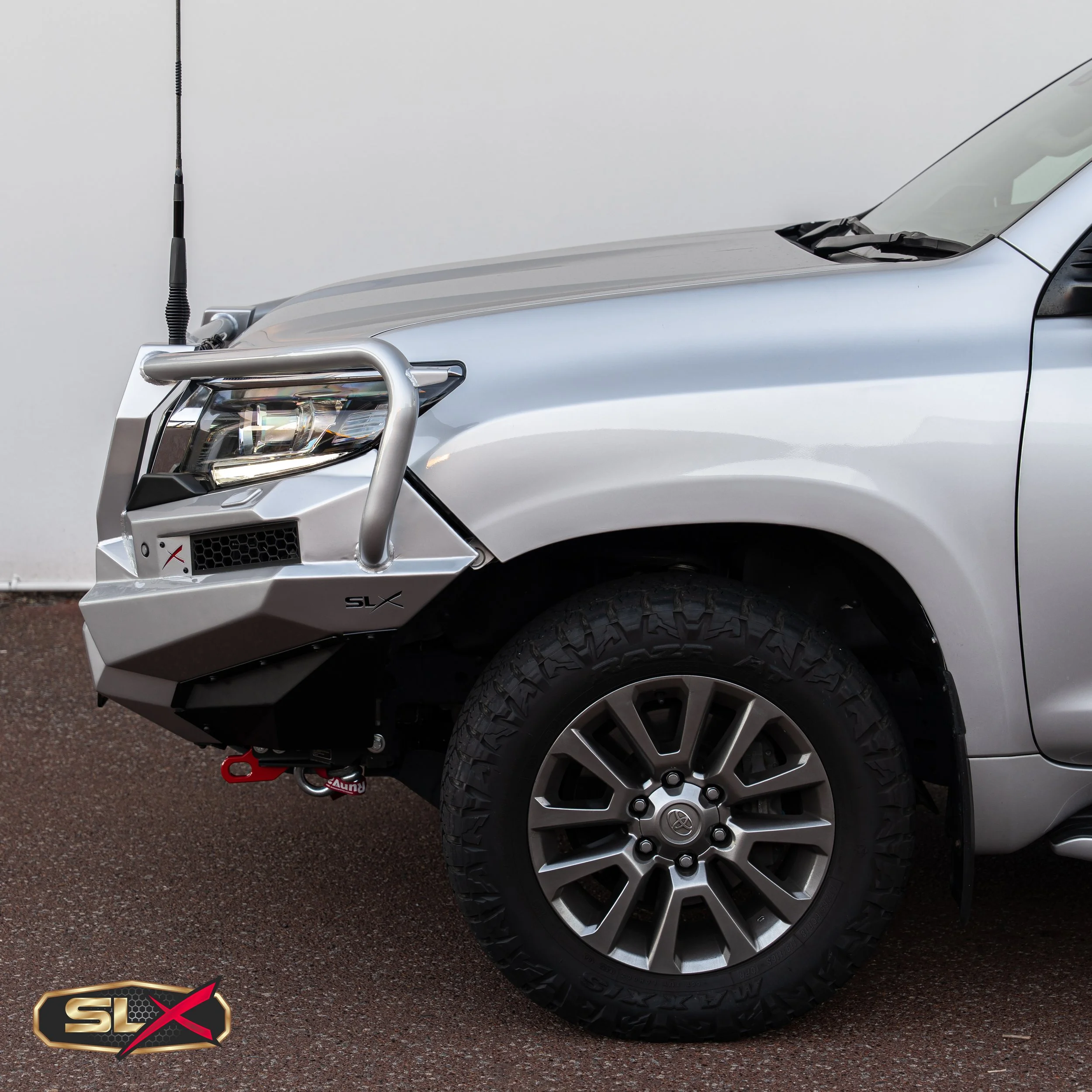

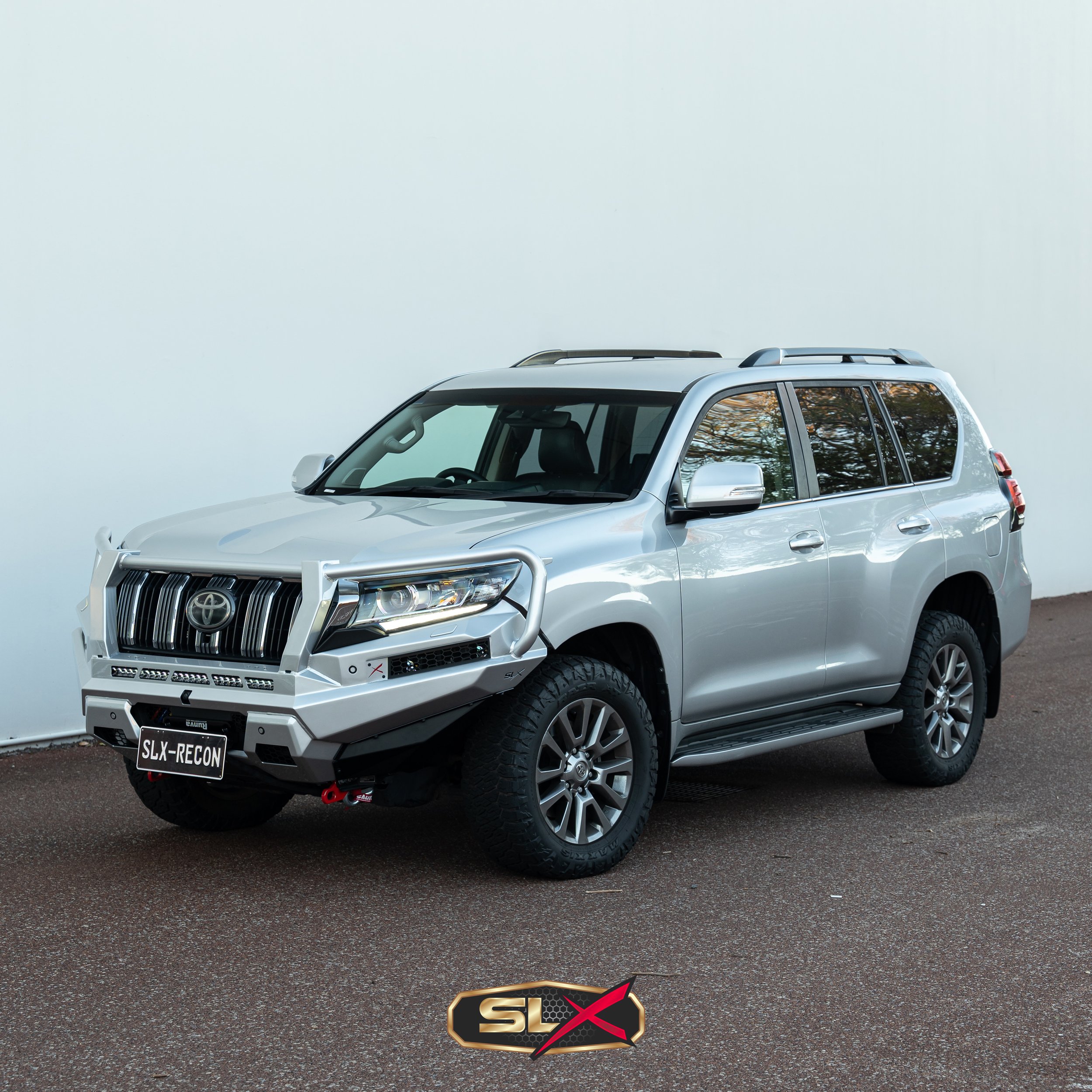

TRIPLE HOOP MODEL $3699 NO HOOP MODEL $3299
Prado 150 Protection Platform
Built for Australian touring, regional travel and off-road use, the SLX Recon assembly gives the Prado 150 a vehicle-specific steel front structure rather than a generic accessory shell. Selection of a Toyota Prado 150 bullbar should account for the factory camera, ultrasonic parking sensors, cooling demand, recovery equipment and intended lighting package. Model identification comes first.
Safety System Interface
Across the front assembly, the forward camera and parking sensors require fixed relocation points after original bumper components are removed. Recon integrates those positions into the bar design, reducing improvised bracket work and giving installers a defined basis for final visibility and sensor checks. Correct operation still depends on disciplined fitment.
Structural Specification
High-strength SS400 steel forms the load-bearing assembly, supported by CNC laser cutting, robotic welding and computer-controlled press-brake forming. Surface preparation passes through a 12-stage acid dip and chemical process before primer and matt powder coating, while production controls include salt-spray exposure, structural bending and load testing.
Complete bar and winch cradle weight of 63 kg
Bash plate package weight of 10 kg
Recovery point package weight of 7 kg
Four integrated 30W LED units weighing 1 kg
Total product weight of 81 kg for the triple-hoop format
Total product weight of 71 kg for the no-hoop format
Approximate net vehicle weight increase of 58 kg or 48 kg
Published references to ADR 69, ADR 92/00, ADR 43/04, ADR 93/00 and AS 4876.1 2002
Lighting Capacity
Four 30W auxiliary cube lights are supplied within the integrated lighting package. Two connect to the factory fog-light circuit, while the remaining pair operates through the included wiring harness. Each unit can support fog-light or indicator duties. Provision also exists for a 31.5-inch LED bar and additional seven-inch or nine-inch spotlights, giving the Toyota Prado 150 bullbar a controlled expansion path for touring and remote-area use.
Installation Accountability
Before supply, we confirm the nominated Prado 150 application and the accessories planned for the vehicle. Installation should close with checks covering bracket alignment, fastener security, camera visibility, sensor response, cable protection and surrounding clearance. Owners choosing a Toyota Prado 150 bullbar should account for winch mass, recovery points, lighting equipment and front-axle load as one complete fitment package.
