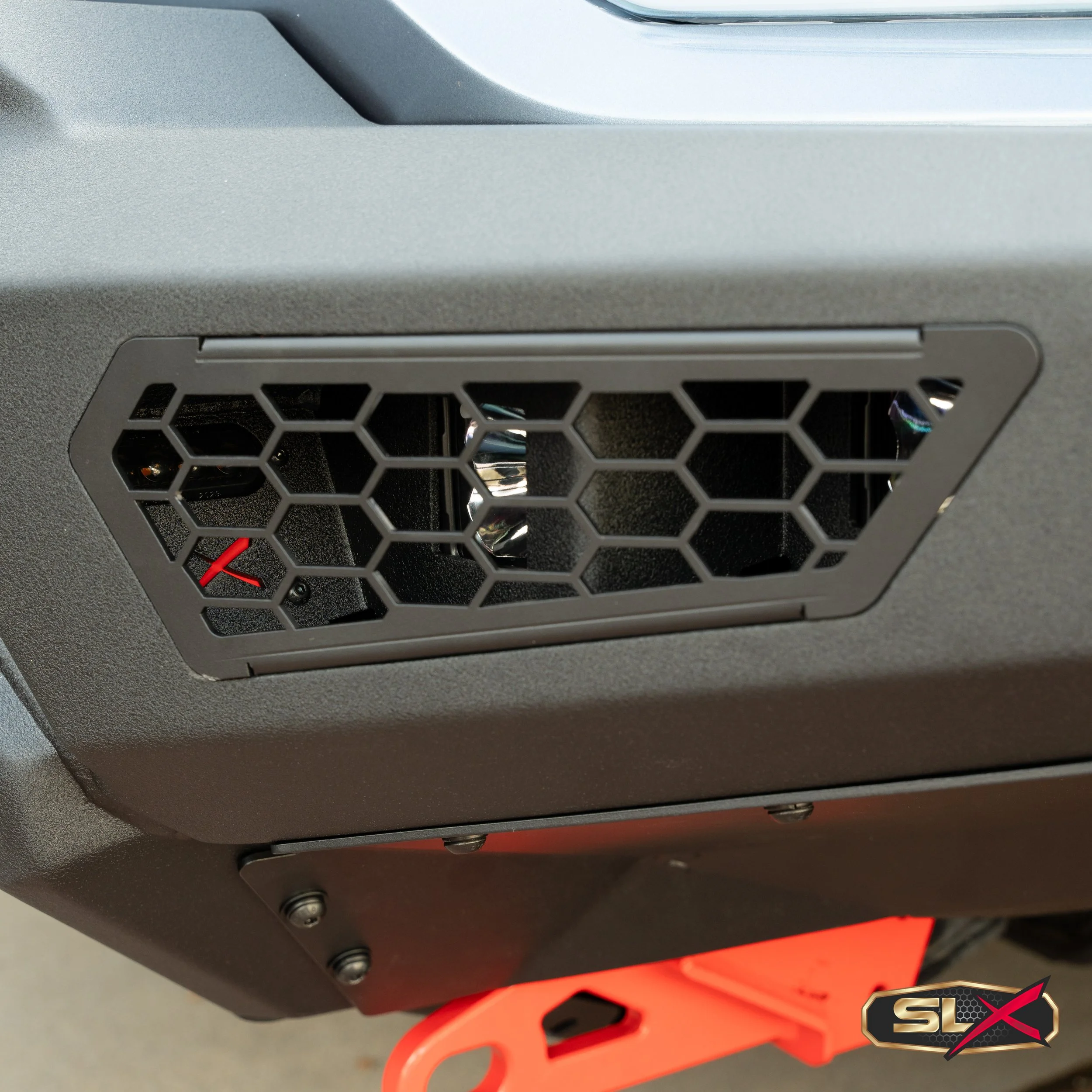

Ultrasonic parking sensors relocated into the bullbar
The camera is relocated into the bullbar - Full Visibility
Safety Systems Integration
Modern vehicles like the BYD rely heavily on advanced driver-assistance systems, including ultrasonic parking sensors and forward cameras. The SLX Recon bullbar is engineered so these factory safety features continue to function exactly as intended after installation.

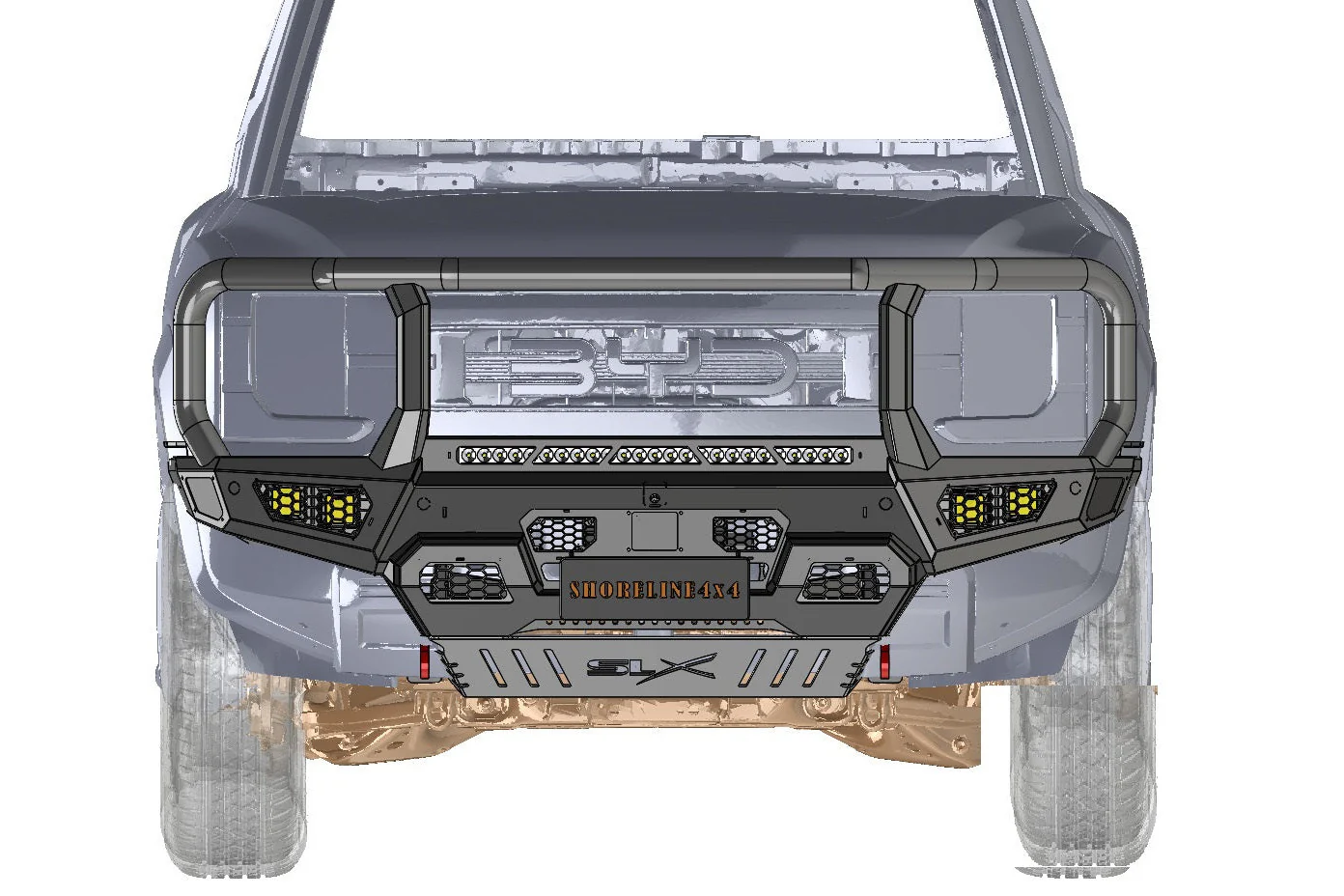

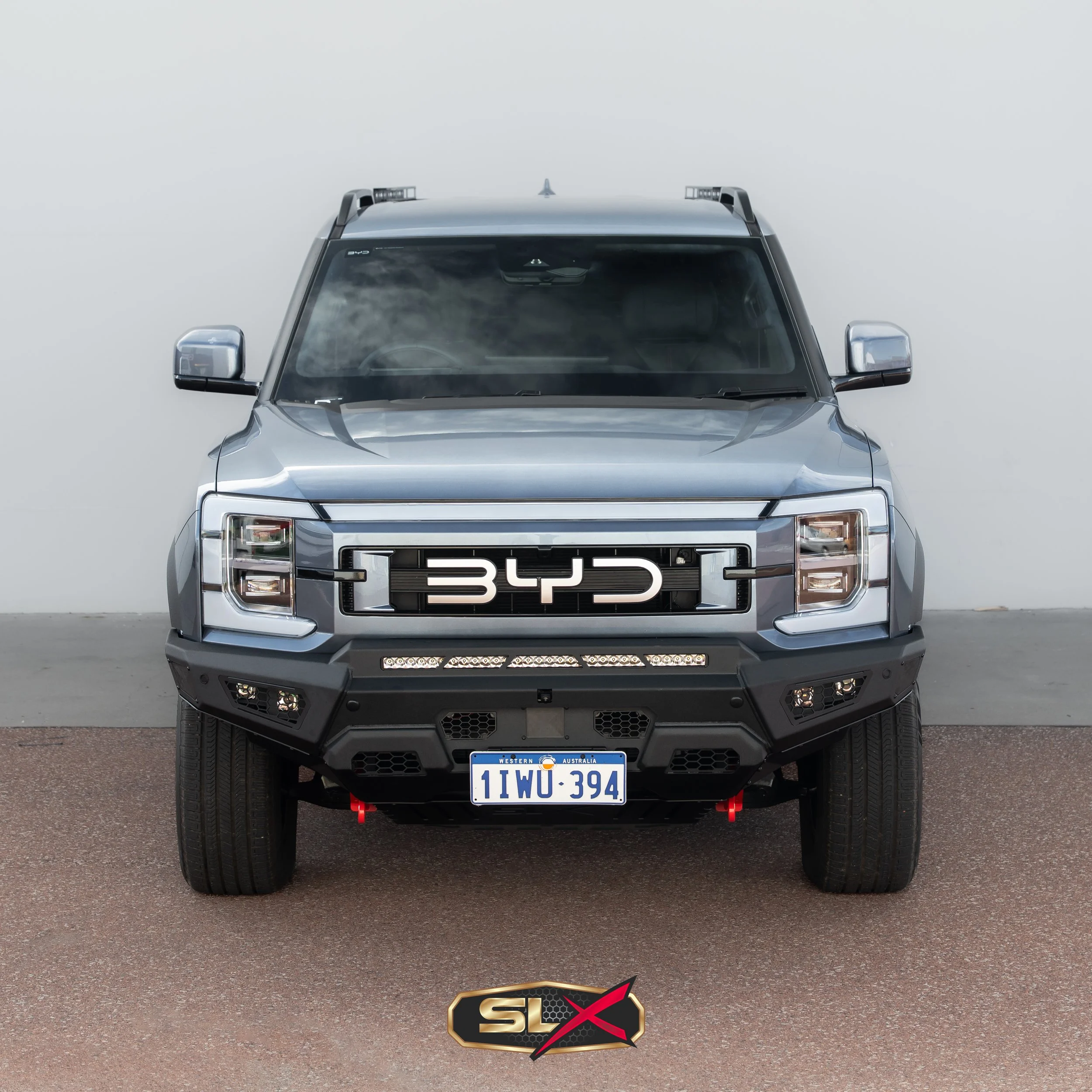

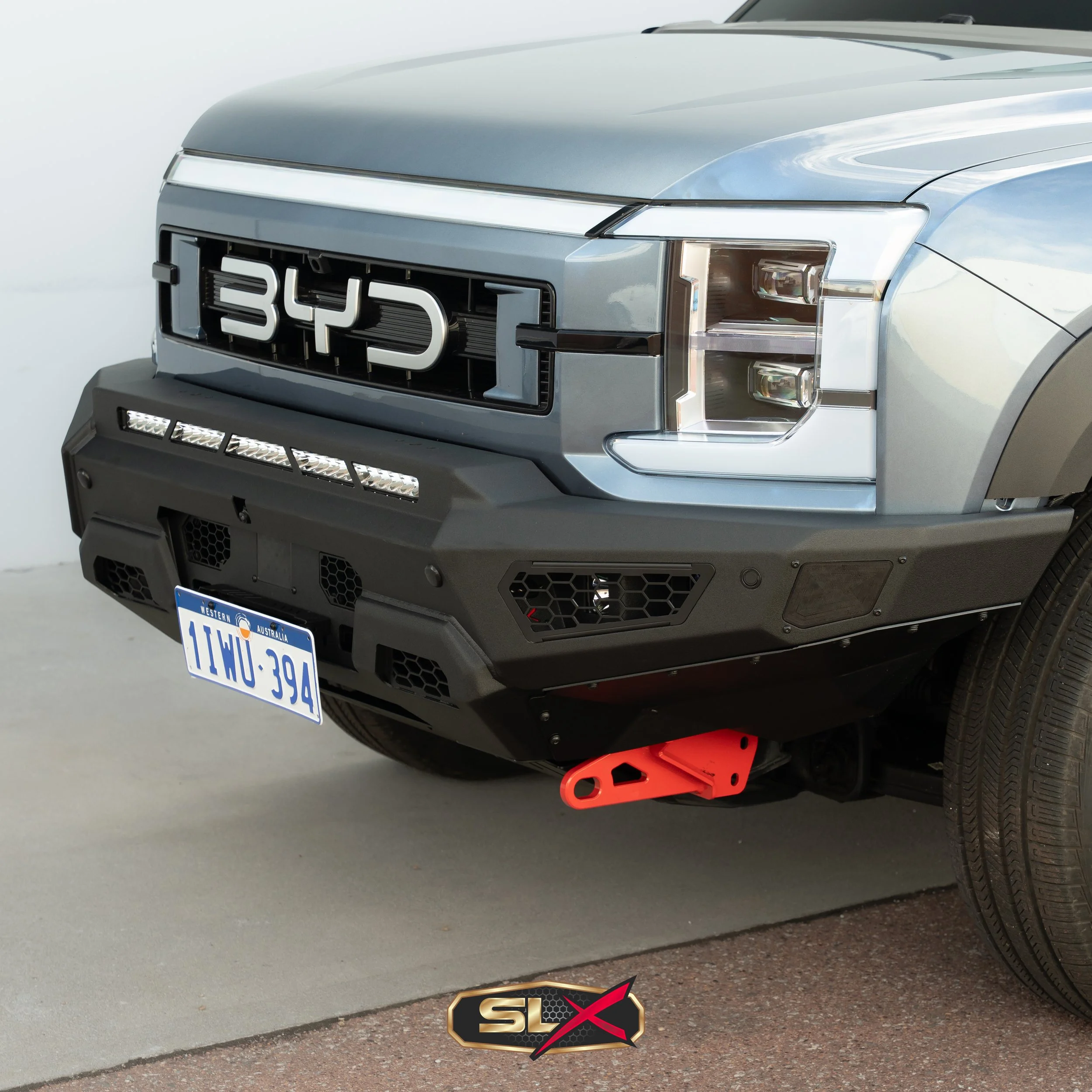

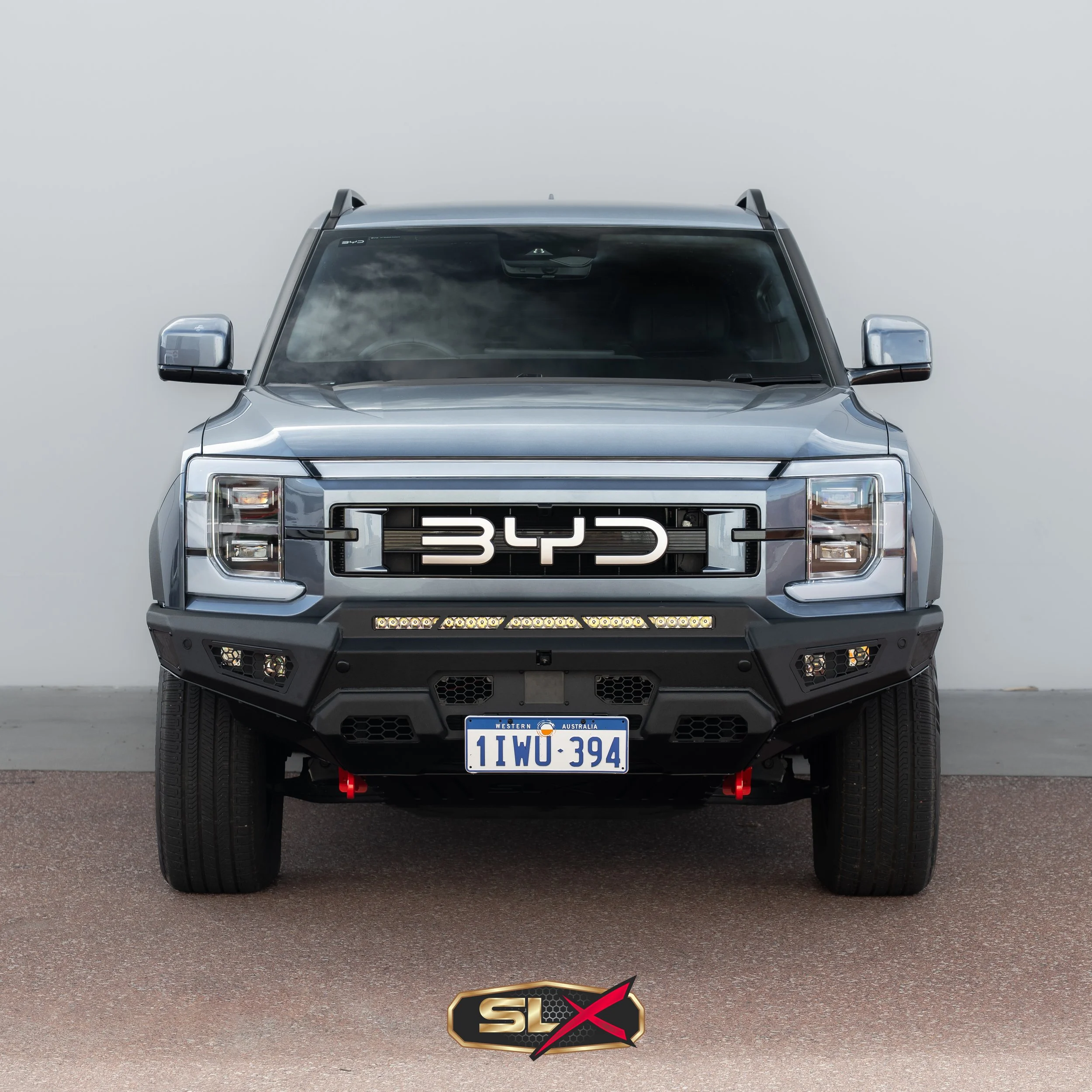

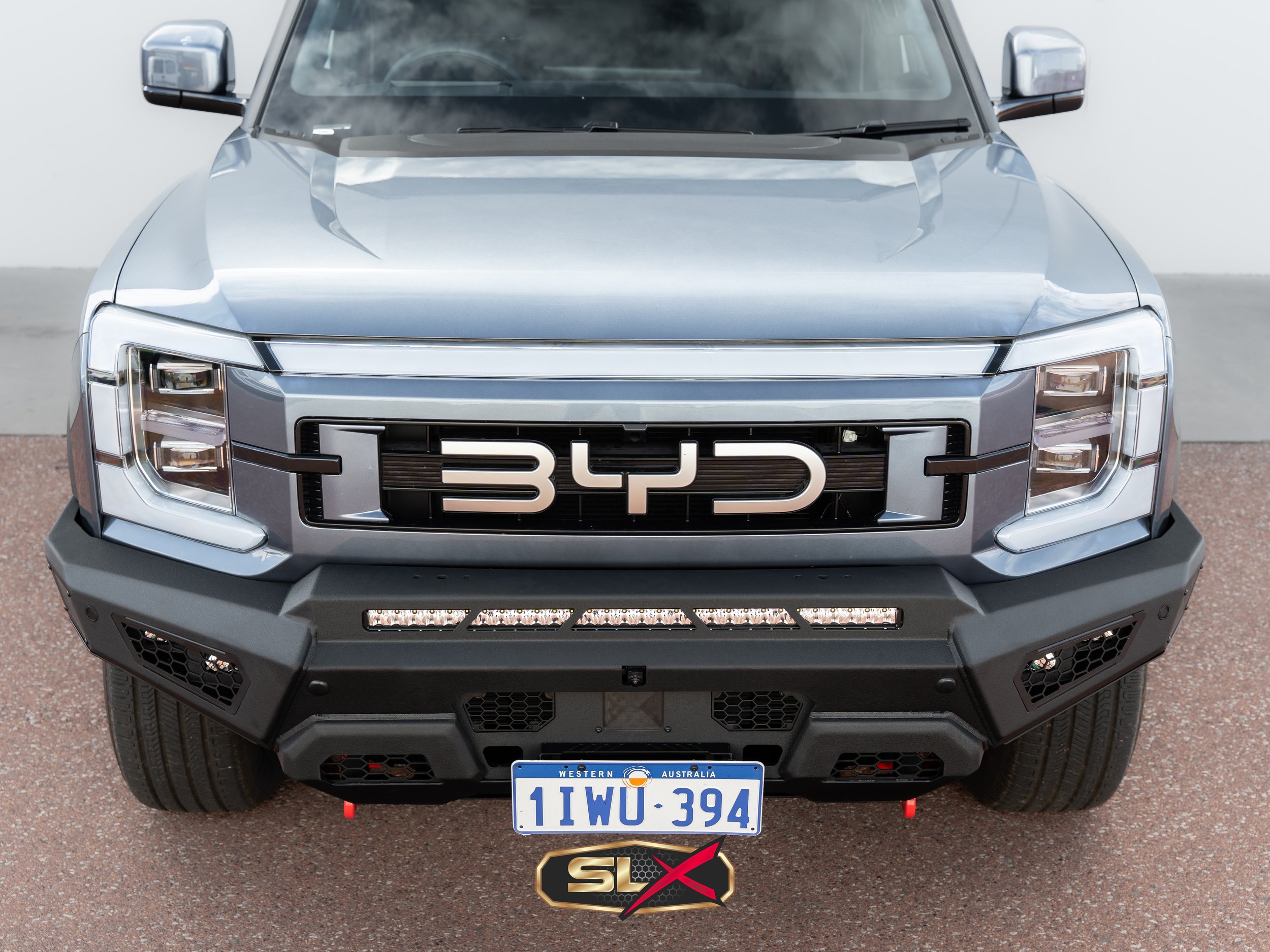

Integrated LED Lighting System – BYD Shark 6 SLX RECON Bullbar
The SLX RECON Bullbar for the BYD Shark 6 has been engineered to deliver maximum lighting performance while maintaining full Australian road compliance and OEM integration.
As standard, the bar features four integrated 30W LED cube lights, seamlessly incorporated into the bullbar design to provide enhanced visibility for daily driving, touring, and off-road adventures.
Two of the supplied LED lights connect directly to the factory BYD Shark 6 fog light circuit, allowing full operation through the vehicle's original controls and maintaining a clean OEM-style installation.
The remaining two LED cube lights are connected via the supplied plug-and-play wiring harness, providing additional forward and peripheral illumination while remaining fully road legal.
Each integrated LED unit features dual-function technology and can operate as:
LED Fog Lights
LED Indicators / Turn Signals
This multifunction design improves safety, visibility and vehicle presence while maintaining the sleek, low-profile appearance of the SLX RECON Bullbar.

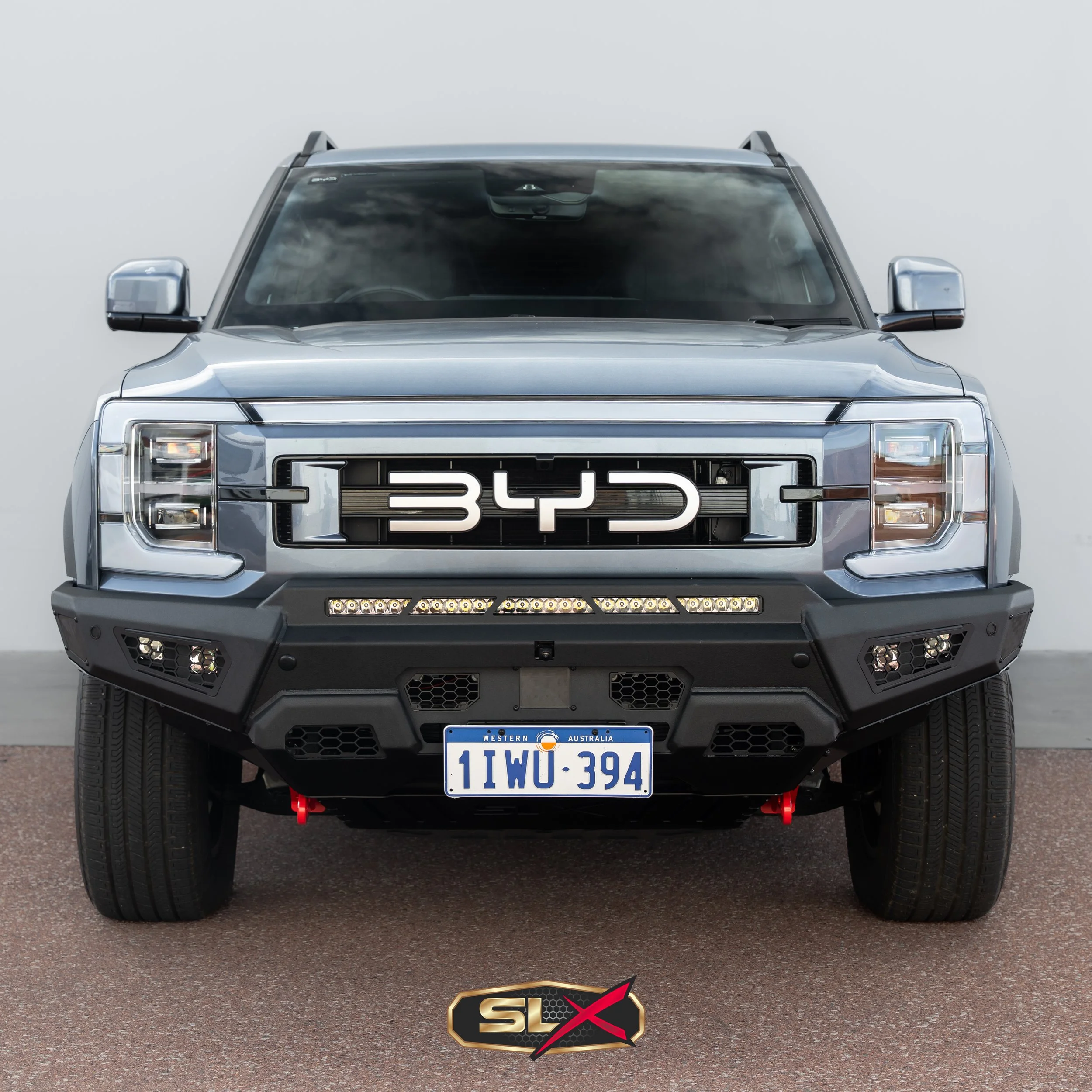

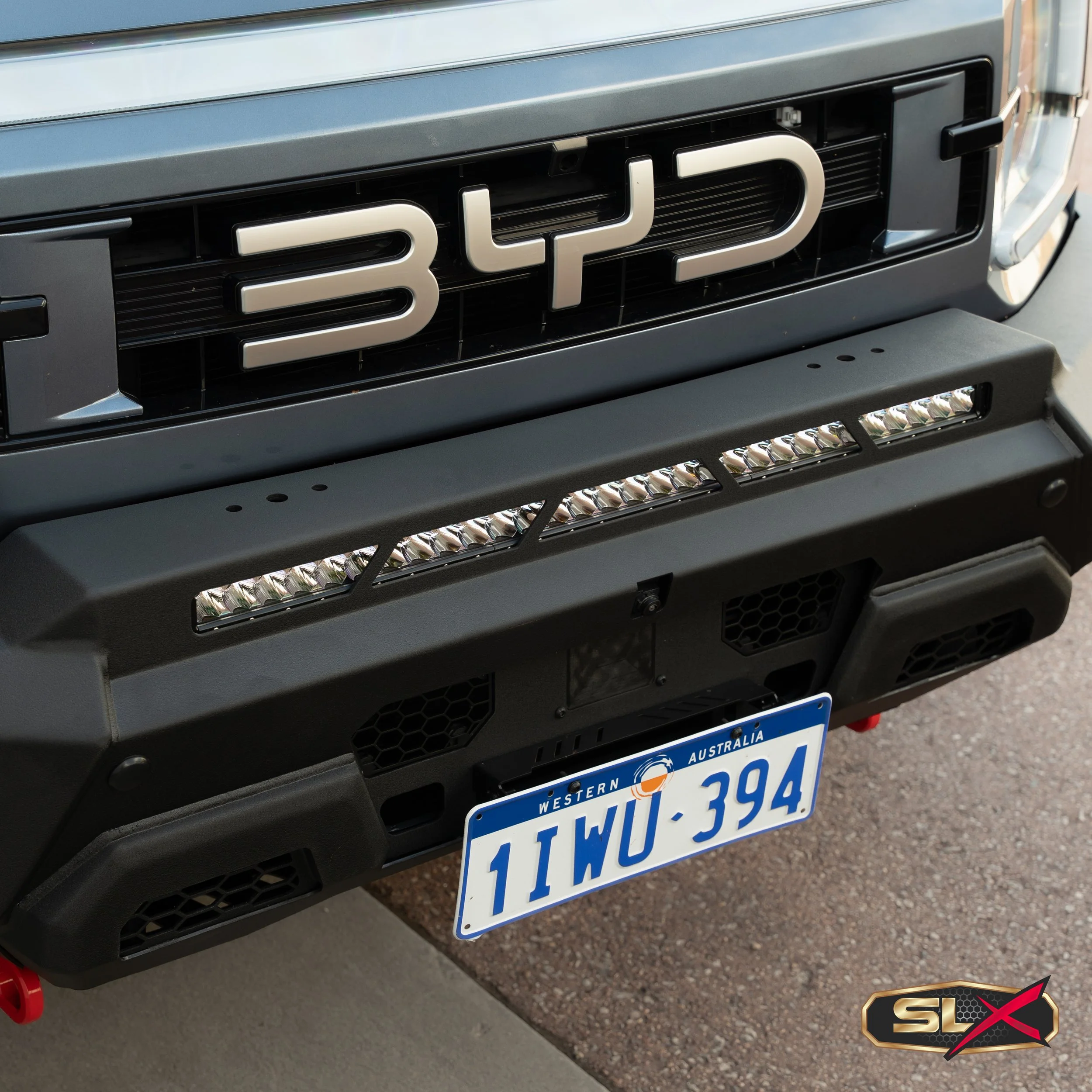

For maximum lighting performance, the bullbar is designed to perfectly complement a 31.5-inch LED light bar, delivering up to 6,150 lumens and approximately 600 metres of forward lighting distance. This creates a complete lighting package ideal for:
BYD Shark 6 touring builds
Off-road driving
Full LED Wiring Harness Included
Designed in WA
Complete bar & Winch Cradle: 63kgs

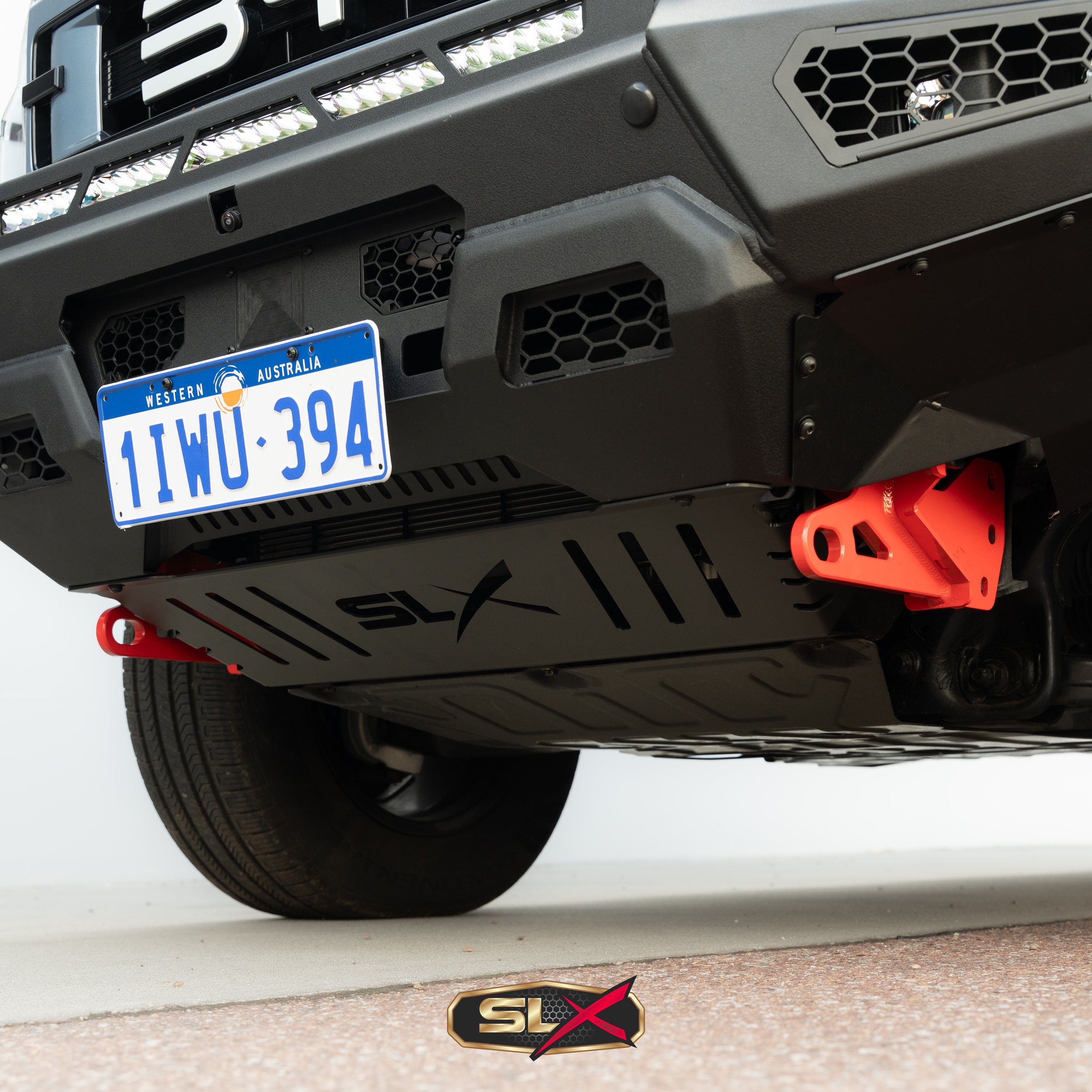

Bash Plates : 10kg

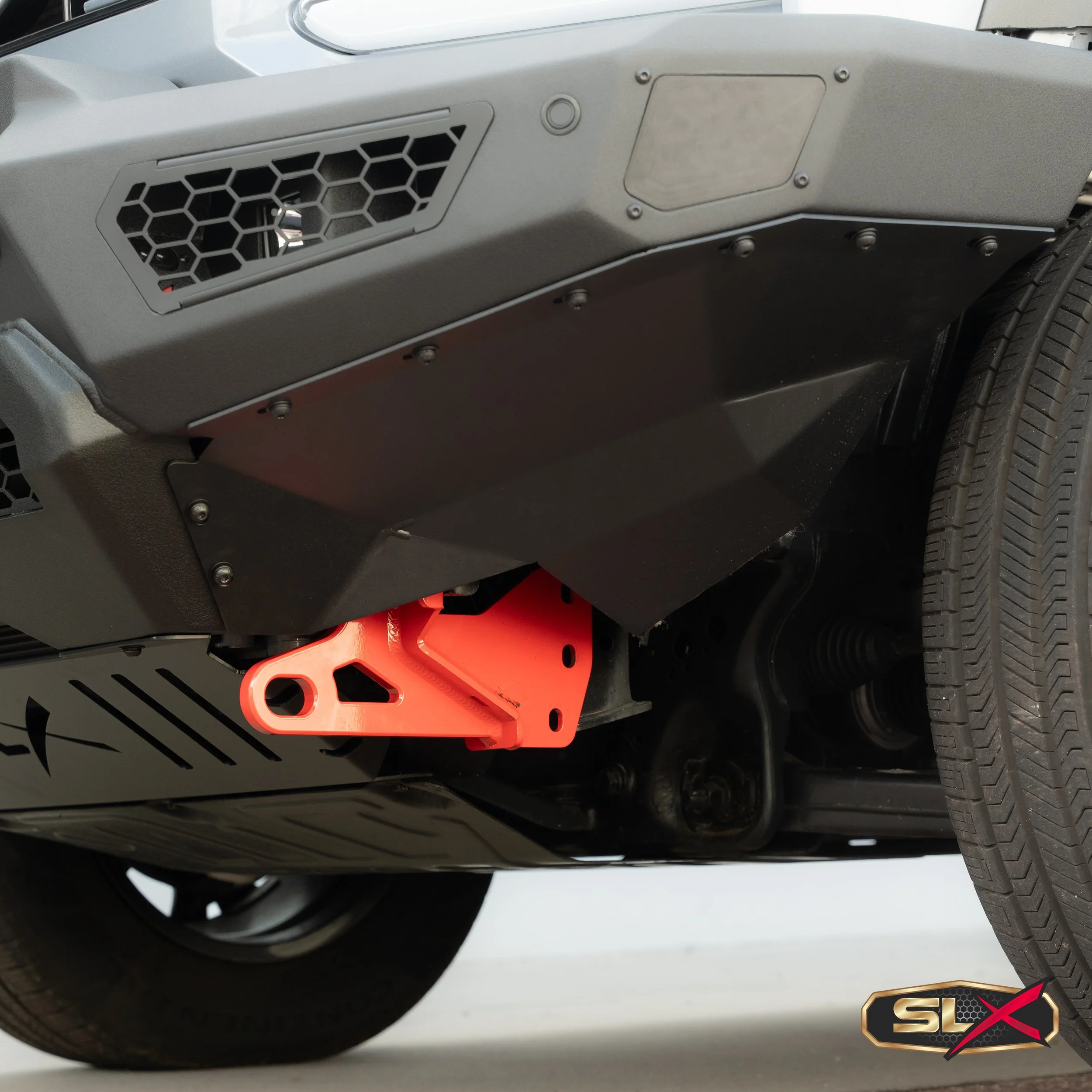

Recovery Points: 7kgs
LED 4x 30W : 1kg
Total Weight of product (with recovery points): 81kgs Triple Loop
Total Weight of product (with recovery points): 71kgs no Loop
Removal of misc parts when fitting: 23kgs
Total weight added to vehicle: 58kgs / 48kg
Engineering & Specifications
Structural Weight
High-strength SS400 structural steel
CNC laser cut steel for precise, repeatable component accuracy
Robotic welding for consistent structural strength and penetration
CNC press brake forming with controlled bending to eliminate spring-back
Millimetre-accurate tolerances through computer-controlled fabrication
12-stage acid dip and chemical preparation process prior to coating
Industrial primer & top coat Matt powder coat finish for long-term corrosion resistance
Salt spray corrosion testing to verify coating durability
Structural bending and load testing
Modern CNC machining and fabrication equipment used throughout production
Manufacturing
ADR69 Crash Impact Tested V Bend Bracket
AS4876.1 2002
Section 5 to ADR 92/00 External projections
Clause 6.5 to ADR 43/04 Vehicle configuration and dimensions
Section 5 of ADR 93/00 Forward Field of View
Clause 6.6 to ADR 43/04 Vehicle configuration and dimensions
Design Compliance & Technical Standards
Compliance
What Sets Us Apart
Auxiliary Lighting
Equipped with 4 × 30W LED lights standard, with the option to integrate a 31.5” LED light bar and spotlights simultaneously + All Wiring.
The SLX Recon delivers one of the highest lighting outputs available.
Western Australian Engineering Driven Design
The SLX Recon is designed in Perth, Western Australia and Manufactured at the most elite plant in Thailand.
Superior Airflow
The SLX Recon bullbar is designed with large mesh openings and a high-flow front profile to maximise airflow to the radiator and inter-cooler.
TRIPLE HOOP MODEL $3699 NO HOOP MODEL $3299
