KIA Tasman Steel Bull Bar XLINE & X PRO ONLY
Ultrasonic parking sensors relocated into the bullbar
The camera is relocated into the bullbar - Full Visibility
Safety Systems Integration
Modern vehicles rely heavily on advanced driver-assistance systems, including ultrasonic parking sensors and forward cameras. The SLX Recon bullbar is engineered so these factory safety features continue to function exactly as intended after installation.
Integrated LED Lighting System – Kia Tasman SLX RECON Bullbar
The SLX RECON Bullbar for the Kia Tasman is designed to maximise lighting performance while maintaining a clean, integrated appearance and full Australian road compliance.
The bullbar features four integrated 30W LED cube lights as standard. Two lights connect directly to the vehicle's factory fog light circuit, retaining OEM functionality and controls, while the remaining two operate via the supplied plug-and-play wiring harness for additional lighting performance.
Each LED unit features dual-function capability and can operate as:
LED Fog Lights
LED Indicators / Turn Signals
This provides improved visibility and safety while maintaining the sleek, low-profile design of the SLX RECON Bullbar.
The lighting system is designed to complement a 31.5-inch LED light bar, delivering powerful forward illumination for touring, off-road adventures, rural driving and everyday use.
For customers wanting even more lighting output, the bullbar includes laser-cut spotlight mounting provisions on the upper surface, allowing fitment of additional 7-inch or 9-inch driving lights.
Combining premium styling, integrated lighting and rugged protection, the SLX RECON Bullbar for the Kia Tasman is the ultimate upgrade for owners looking to enhance their vehicle's capability both on and off the road.
Full LED Wiring Harness Included
Designed in WA
Complete bar & Winch Cradle: 63kgs
Bash Plates : 10kg
Recovery Points: 7kgs
LED 4x 30W : 1kg
Total Weight of product (with recovery points): 81kgs Triple Loop
Total Weight of product (with recovery points): 71kgs no Loop
Removal of misc parts when fitting: 23kgs
Total weight added to vehicle: 58kgs / 48kg
Engineering & Specifications
Structural Weight
High-strength SS400 structural steel
CNC laser cut steel for precise, repeatable component accuracy
Robotic welding for consistent structural strength and penetration
CNC press brake forming with controlled bending to eliminate spring-back
Millimetre-accurate tolerances through computer-controlled fabrication
12-stage acid dip and chemical preparation process prior to coating
Industrial primer & top coat Matt powder coat finish for long-term corrosion resistance
Salt spray corrosion testing to verify coating durability
Structural bending and load testing
Modern CNC machining and fabrication equipment used throughout production
Manufacturing
ADR69 Crash Impact Tested V Bend Bracket
AS4876.1 2002
Section 5 to ADR 92/00 External projections
Clause 6.5 to ADR 43/04 Vehicle configuration and dimensions
Section 5 of ADR 93/00 Forward Field of View
Clause 6.6 to ADR 43/04 Vehicle configuration and dimensions
Design Compliance & Technical Standards
Compliance
What Sets Us Apart
Auxiliary Lighting
Equipped with 4 × 30W LED lights standard, with the option to integrate a 31.5” LED light bar and spotlights simultaneously + All Wiring.
The SLX Recon delivers one of the highest lighting outputs available.
Superior Airflow
The SLX Recon bullbar for the Toyota LandCruiser 300 Series (LC300) is designed with large mesh openings and a high-flow front profile to maximise airflow to the radiator and inter-cooler.
Western Australian Engineering Driven Design
The SLX Recon is designed in Perth, Western Australia and Manufactured at the most elite plant in Thailand.

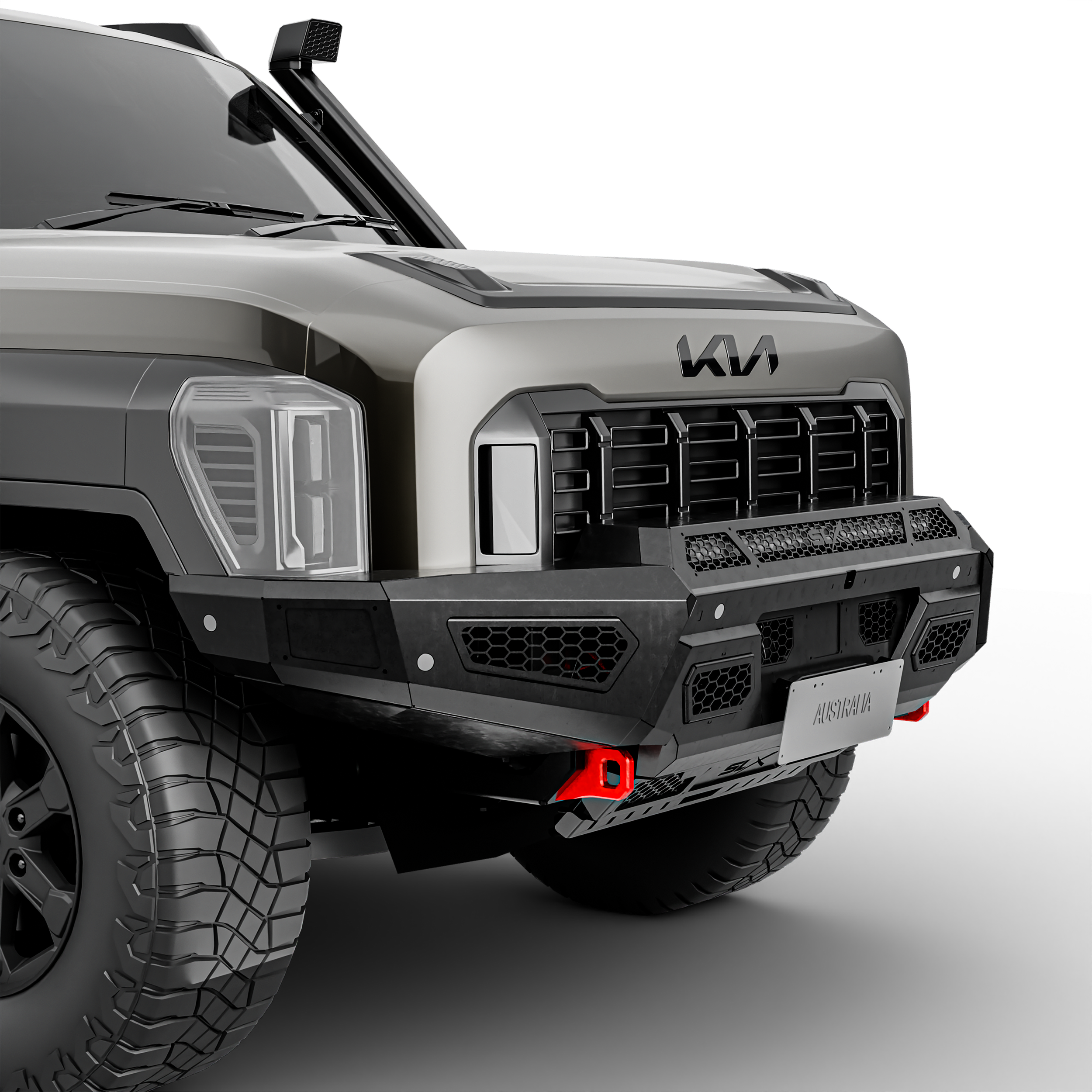

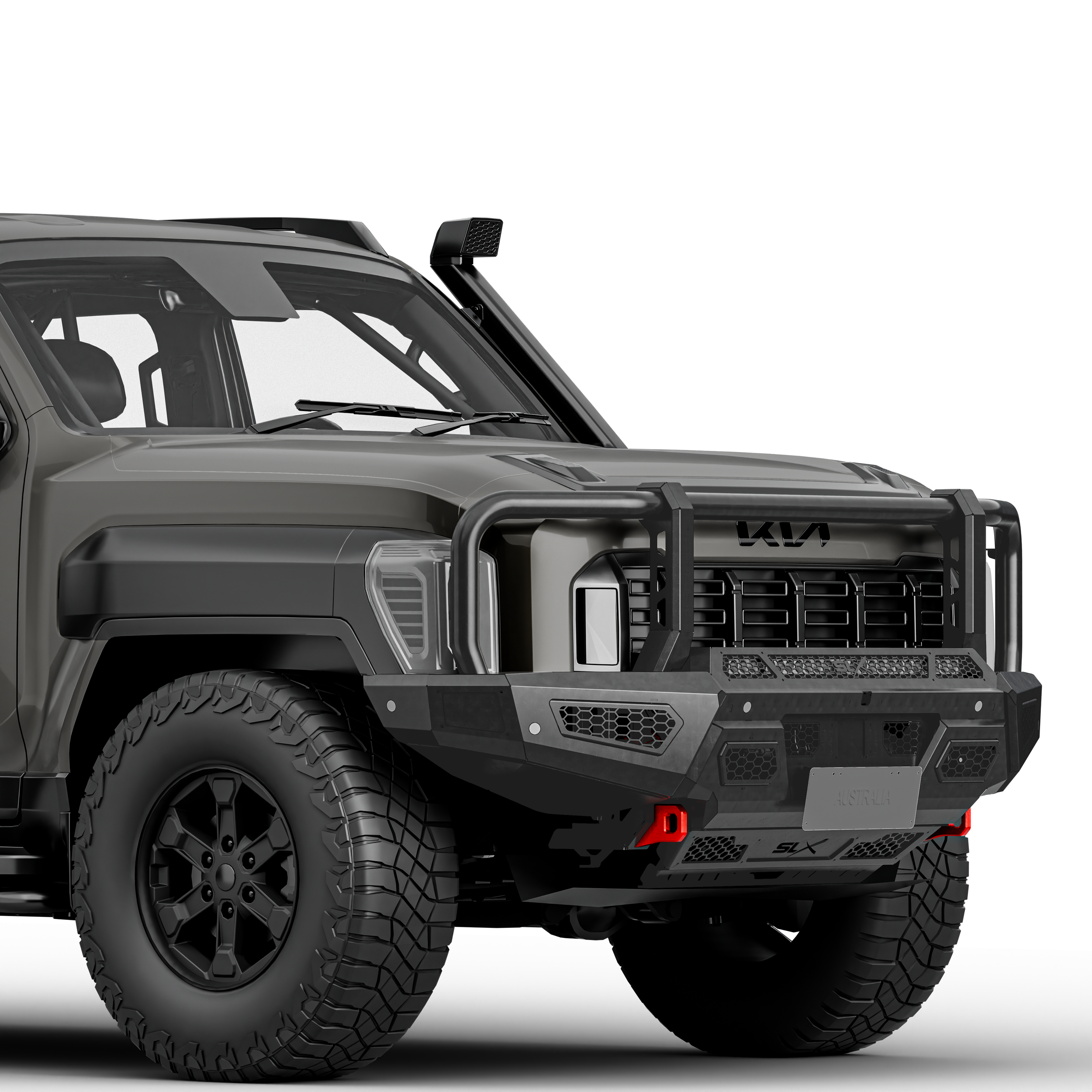

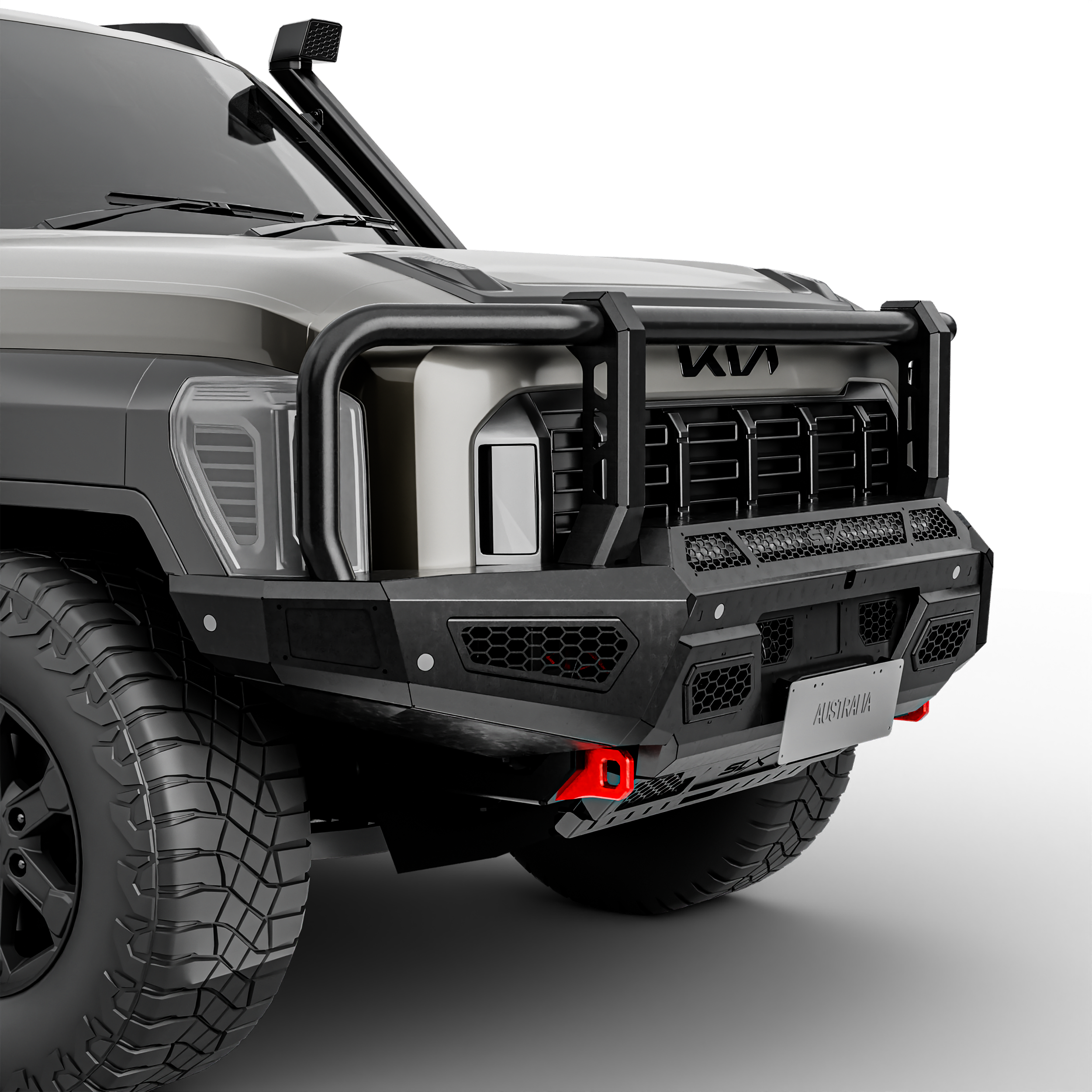

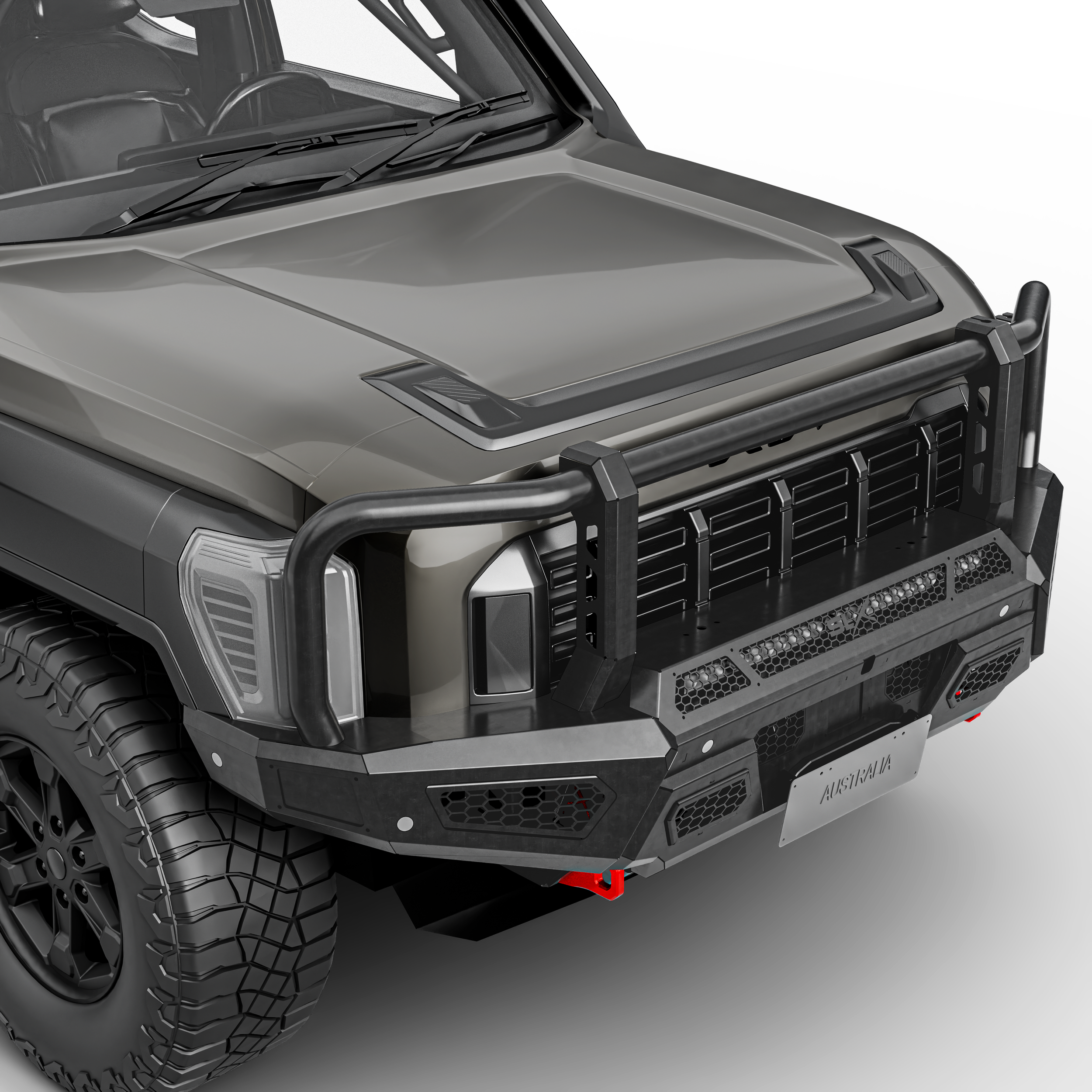

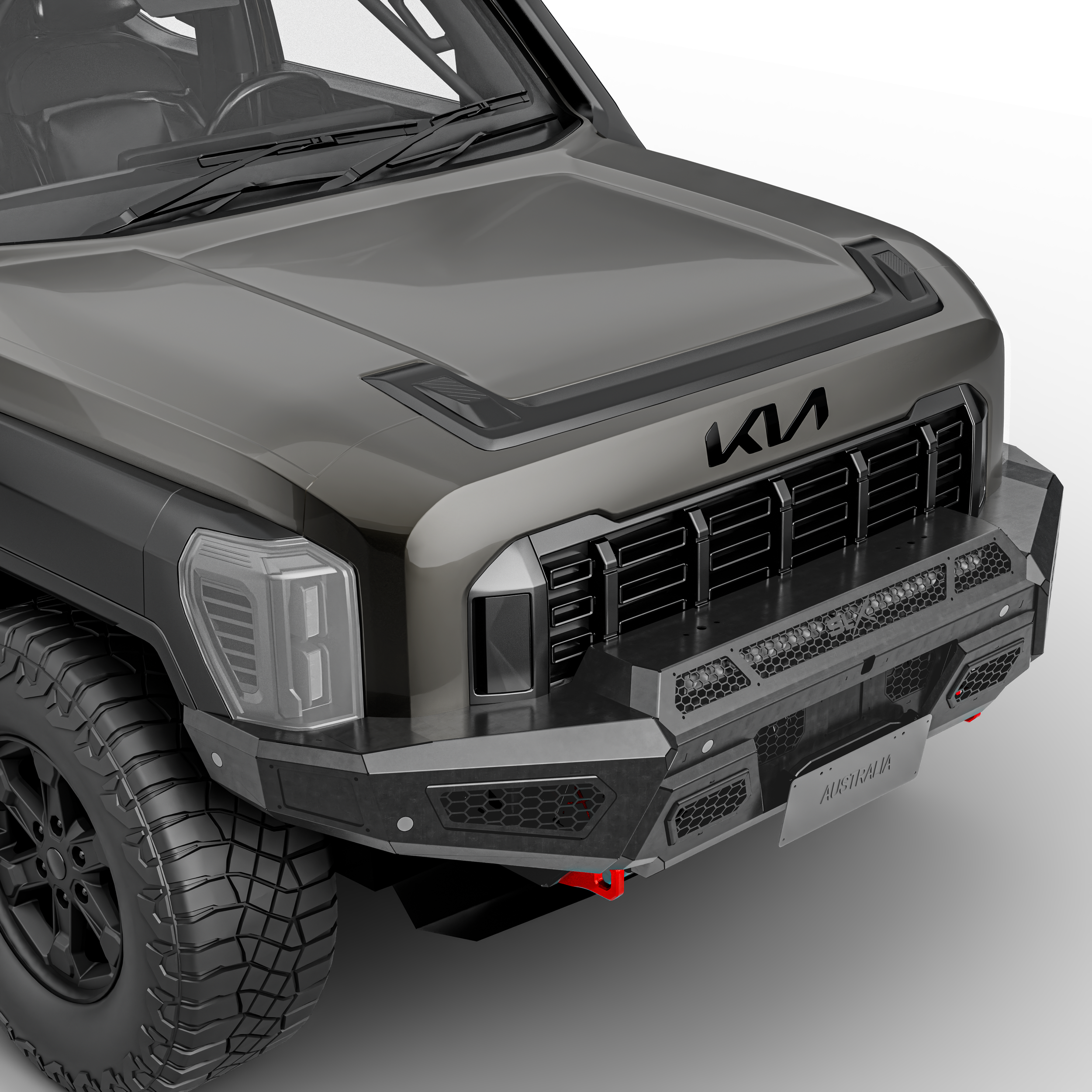

TRIPLE HOOP MODEL $3699 NO HOOP MODEL $3299
Kia Tasman Protection Platform
Specified for Kia Tasman X-Line and X-Pro variants, the SLX Recon assembly is built around the vehicle’s factory camera, ultrasonic parking sensors, cooling requirements and planned recovery equipment. Buyers comparing a Kia bull bar should confirm the exact grade before supply, because the product is not presented as a universal Tasman fitment. The operating brief is direct. Strong frontal protection must coexist with the vehicle systems used during daily driving, touring and regional work.
Safety System Integration
Within the factory front-end package, the forward camera and parking sensors are relocated into defined positions inside the bar. Correct placement matters because visibility, sensor response and surrounding clearance depend on disciplined workshop execution rather than improvised mounting. For owners assessing Tasman bullbars, that interface should carry equal weight with appearance and steel thickness.
Structural Controls
High-strength SS400 steel forms the primary structure, supported by CNC laser cutting, robotic welding and computer-controlled press-brake forming. Surface preparation passes through a 12-stage acid dip and chemical process before primer and matt powder coating, while stated production checks include salt-spray exposure, structural bending and load testing.
Complete bar and winch cradle weight of 63 kg
Bash plate package weight of 10 kg
Recovery point package weight of 7 kg
Four integrated 30W LED units weighing 1 kg
Total product weight of 81 kg for the triple-hoop configuration
Total product weight of 71 kg for the no-hoop configuration
Approximate net vehicle weight increase of 58 kg or 48 kg
ADR and AS references recorded within the published technical specification
Lighting Package
Four 30W LED cube lights are included as standard. Two connect to the factory fog-light circuit, while the remaining pair operates through the supplied wiring harness. Each unit can function as a fog light or indicator, and the Kia bull bar also includes provision for a 31.5-inch light bar plus seven-inch or nine-inch driving lights.
Fitment Accountability
Professional installation should close with checks covering bracket alignment, fastener security, camera visibility, sensor response, wiring protection and component clearance. Before supply, we confirm the nominated Tasman grade and accessory schedule so the selected Tasman bullbars configuration corresponds with the recorded vehicle. That verification is not optional.
