Ultrasonic parking sensors relocated into the bullbar
The camera is relocated into the bullbar - Full Visibility


Modern vehicles like the LC300 rely heavily on advanced driver-assistance systems, including ultrasonic parking sensors and forward cameras. The SLX Recon bullbar is engineered so these factory safety features continue to function exactly as intended after installation.

FULL SAFETY SYSTEM INTEGRATION

The SLX RECON Bullbar is designed to maximise lighting capability while maintaining full road compliance.

The bar incorporates four 30w auxiliary cube LED lights as part of the integrated lighting system.

Two of the supplied lights connect directly to the vehicle’s existing factory fog light circuit, ensuring seamless integration with the original controls.

The remaining two lights connect to the included plug-and-play wiring harness, allowing additional lighting performance while keeping the installation fully road legal.

Each LED unit also includes a dual-function capability, allowing them to operate as:

  • Fog lights

  • Indicators / turn signals

This provides additional visibility and functionality while maintaining a clean and integrated front-end design.

The lighting system is engineered to complement the 31.5" 6150-lumen LED bar, this provides up to 600 metres of forward lighting,
creating a complete lighting solution for touring, off-road driving and everyday use.

Additionally laser cut outs are included ontop of the bulbar surface for additional 7 or 9 inch spotlights

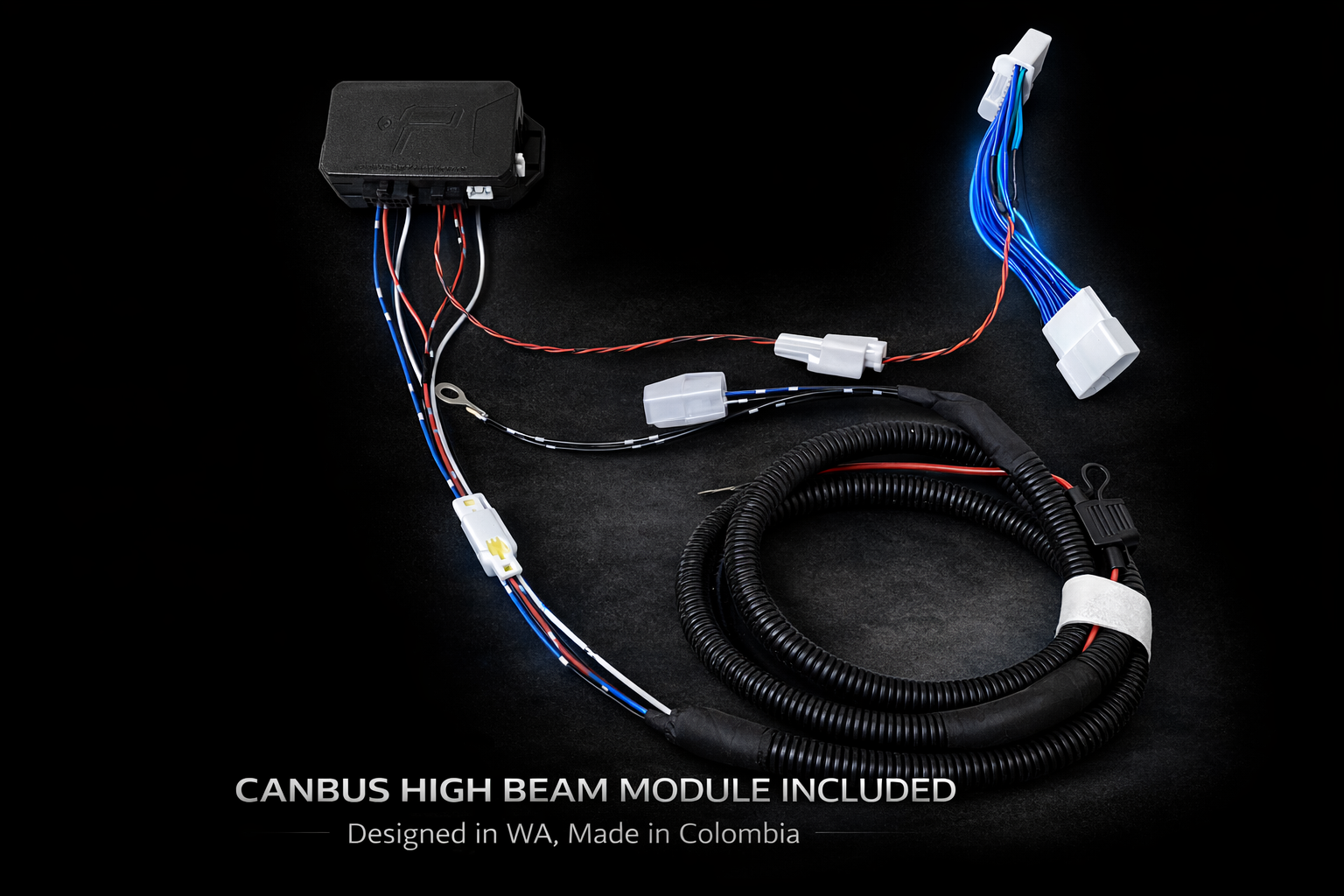

Canbus High Beam Module Included

Designed in WA, Made in Columbia

Structural Weight


Complete bar & Winch Cradle: 63kgs
Bash Plates : 10kg
Recovery Points: 7kgs
LED 4x 30W : 1kg
Total Weight of product (with recovery points): 81kgs Triple Loop
Total Weight of product (with recovery points): 71kgs no Loop
Removal of misc parts when fitting: 23kgs
Total weight added to vehicle: 58kgs / 48kg

Winch Cradle

633mm long but suits winches upto 575mm long due to intercooler pipe restriction.

Also includes Winch Control Box Mounting Bracket.

Engineering & Specifications

Manufacturing

High-strength SS400 structural steel
CNC laser cut steel for precise, repeatable component accuracy
Robotic welding for consistent structural strength and penetration
CNC press brake forming with controlled bending to eliminate spring-back
Millimetre-accurate tolerances through computer-controlled fabrication
12-stage acid dip and chemical preparation process prior to coating
Industrial primer & top coat Matt powder coat finish for long-term corrosion resistance
Salt spray corrosion testing to verify coating durability
Structural bending and load testing
Modern CNC machining and fabrication equipment used throughout production

Extras

Antenna Tabs x 2

1 Located on the passengers side upright post

1 Located on the back side of the passengers side loop

Removable Mesh Winch Access - The 2 mesh vents adjacent to the number plate are removable held in place with 4 rubber grommets to access the winch clutch lever.

Compliance

ADR69 Crash Impact Tested V Bend Bracket
AS4876.1 2002
Section 5 to ADR 92/00 External projections
Clause 6.5 to ADR 43/04 Vehicle configuration and dimensions
Section 5 of ADR 93/00 Forward Field of View
Clause 6.6 to ADR 43/04 Vehicle configuration and dimensions
Design Compliance & Technical Standards‍

Depth

98.5mm from the front of the grill to the front off the bullbar

Airflow & Cooling

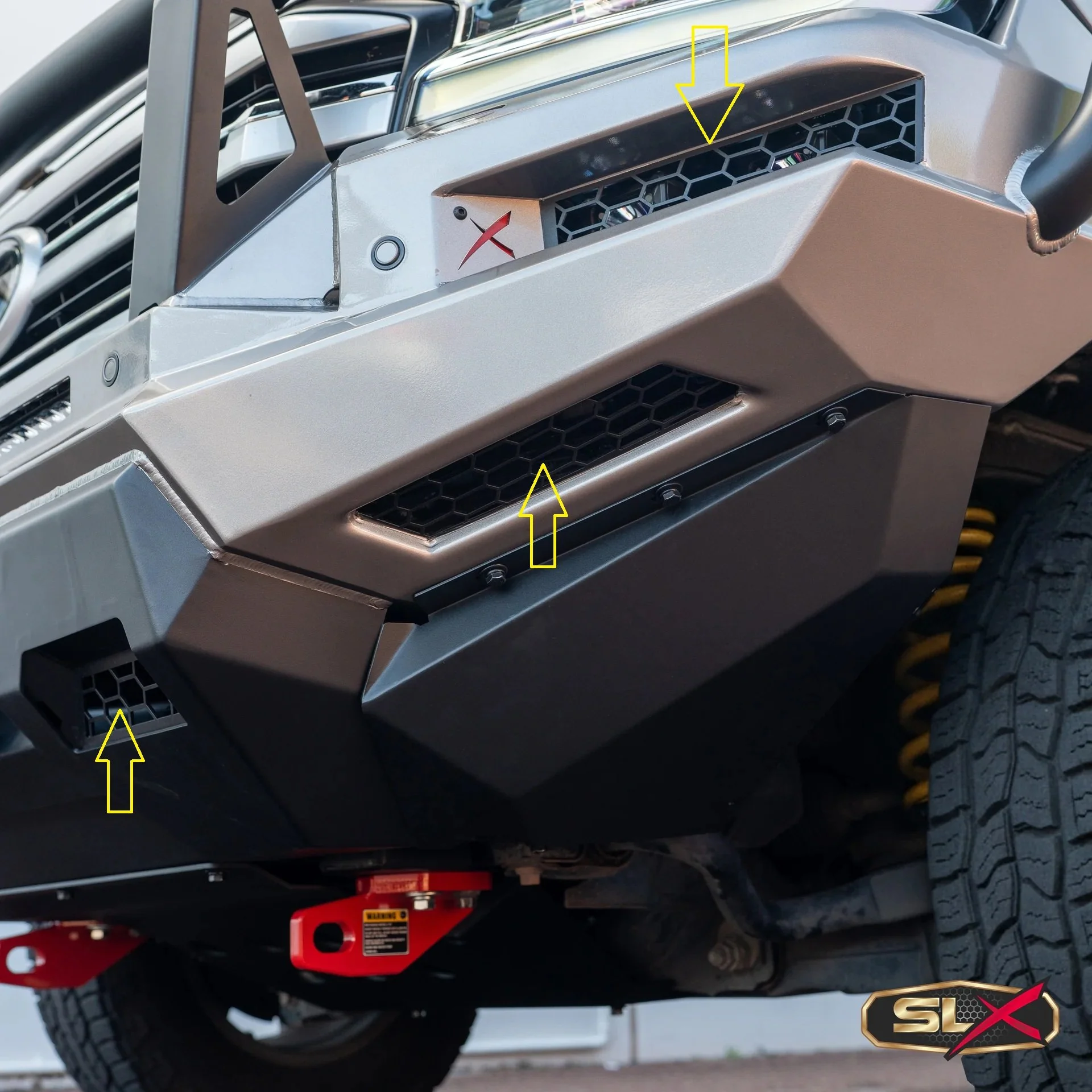

Cooling performance was a key focus in the SLX Recon design. Each side of the bar features three carefully integrated ventilation openings, positioned to direct maximum airflow to the intercoolers while remaining visually subtle within the bar design.

Unlike many bulky bars that restrict airflow, the SLX Recon does not obstruct the main radiator opening, allowing the factory cooling system to operate at full efficiency.

✔ 3 integrated airflow vents per side
✔ Direct airflow to intercoolers
✔ No restriction to the main radiator opening
✔ Engineered for maximum cooling performance

Hidden airflow design. Maximum cooling efficiency.

Does not block front radiator at all & additional vents either side of the number plate.

What Sets Us Apart

Auxiliary Lighting

Equipped with 4 × 30W LED lights standard, with the option to integrate a 31.5” LED light bar and spotlights simultaneously + All Wiring.

The SLX Recon delivers one of the highest lighting outputs available.

Superior Airflow

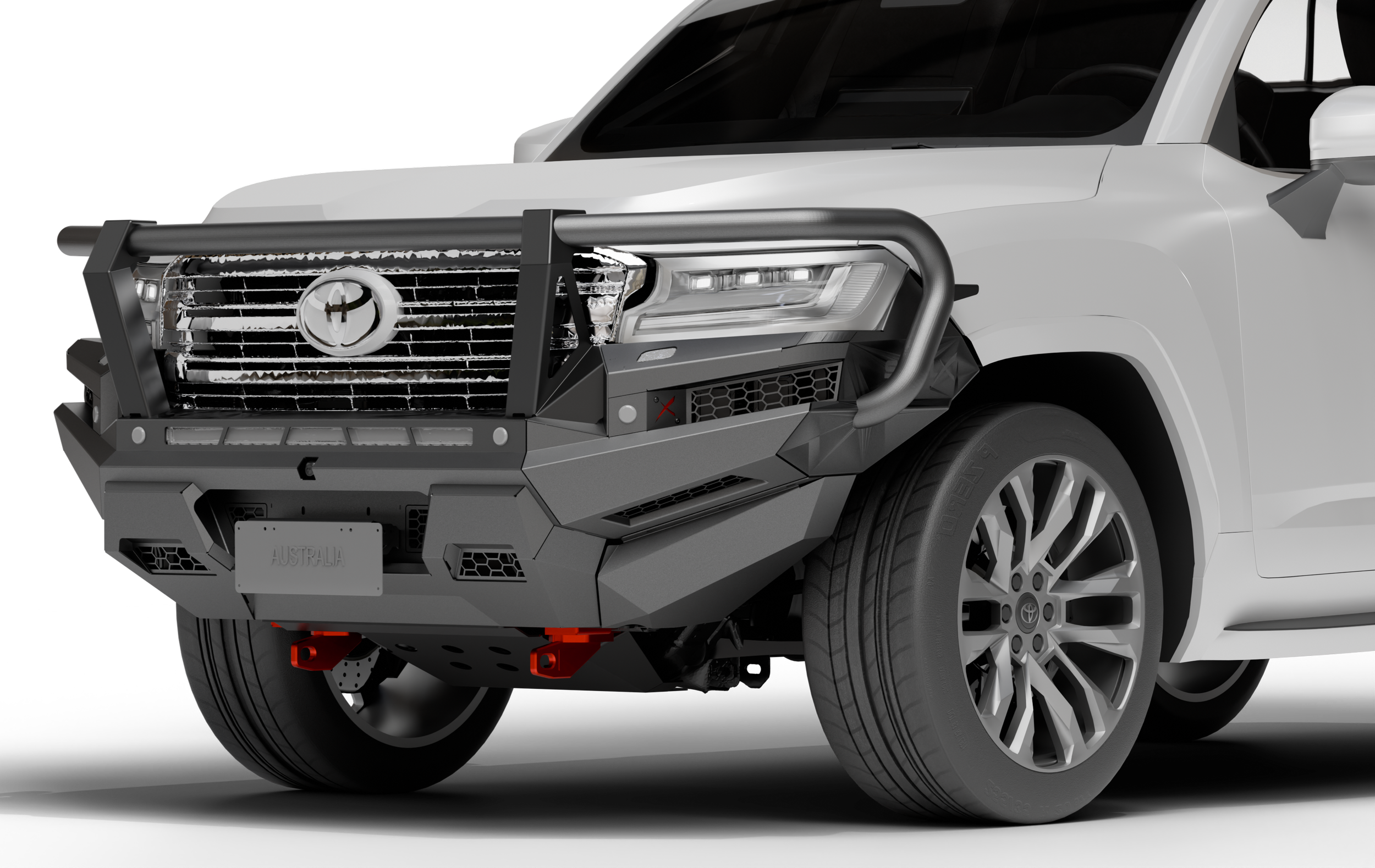

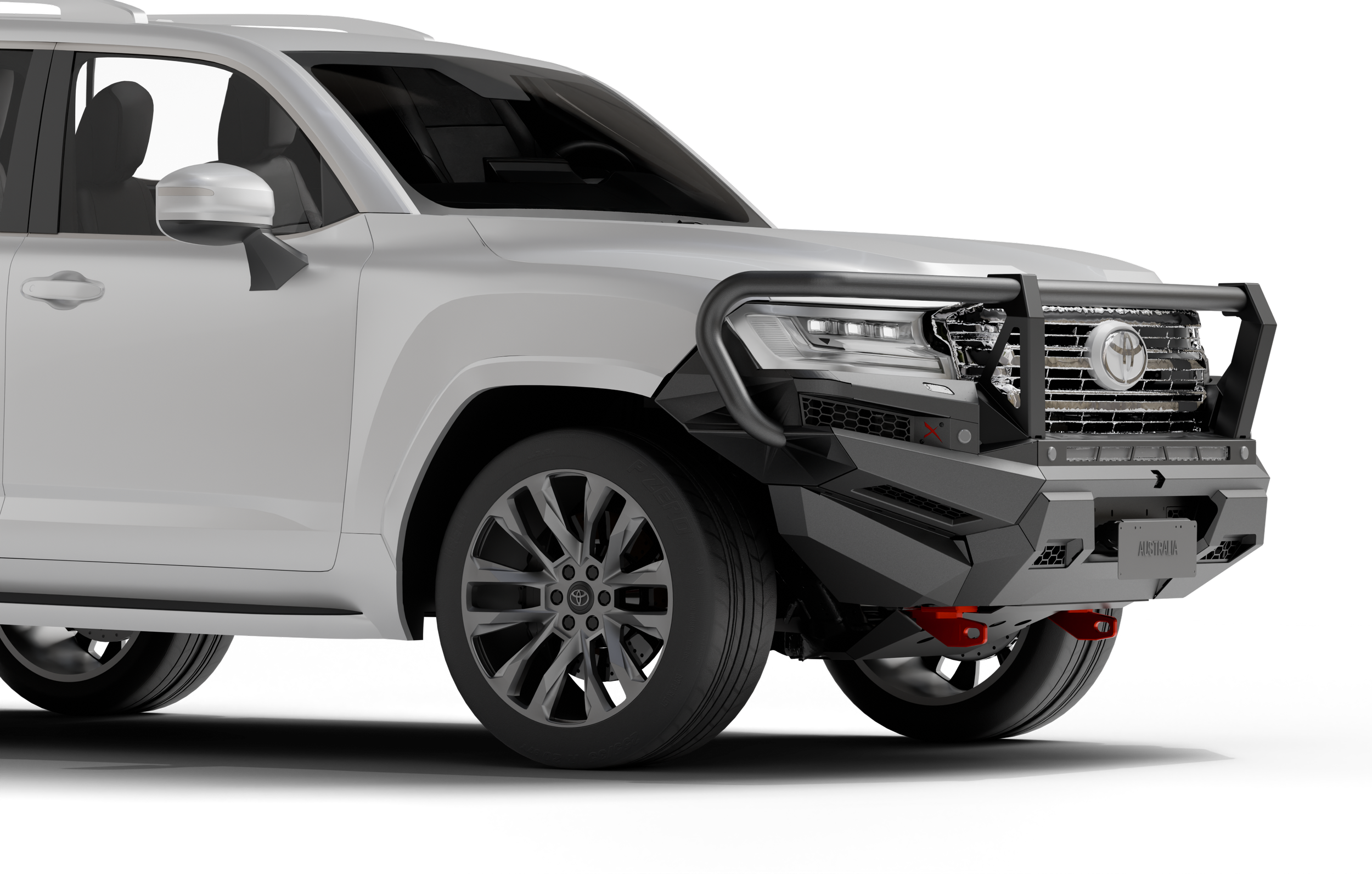

The SLX Recon bullbar for the Toyota LandCruiser 300 Series (LC300) is designed with large mesh openings and a high-flow front profile to maximise airflow to the radiator and inter-cooler.

Western Australian Engineering Driven Design

The SLX Recon is designed in Perth, Western Australia and Manufactured at the most elite plant in Thailand.

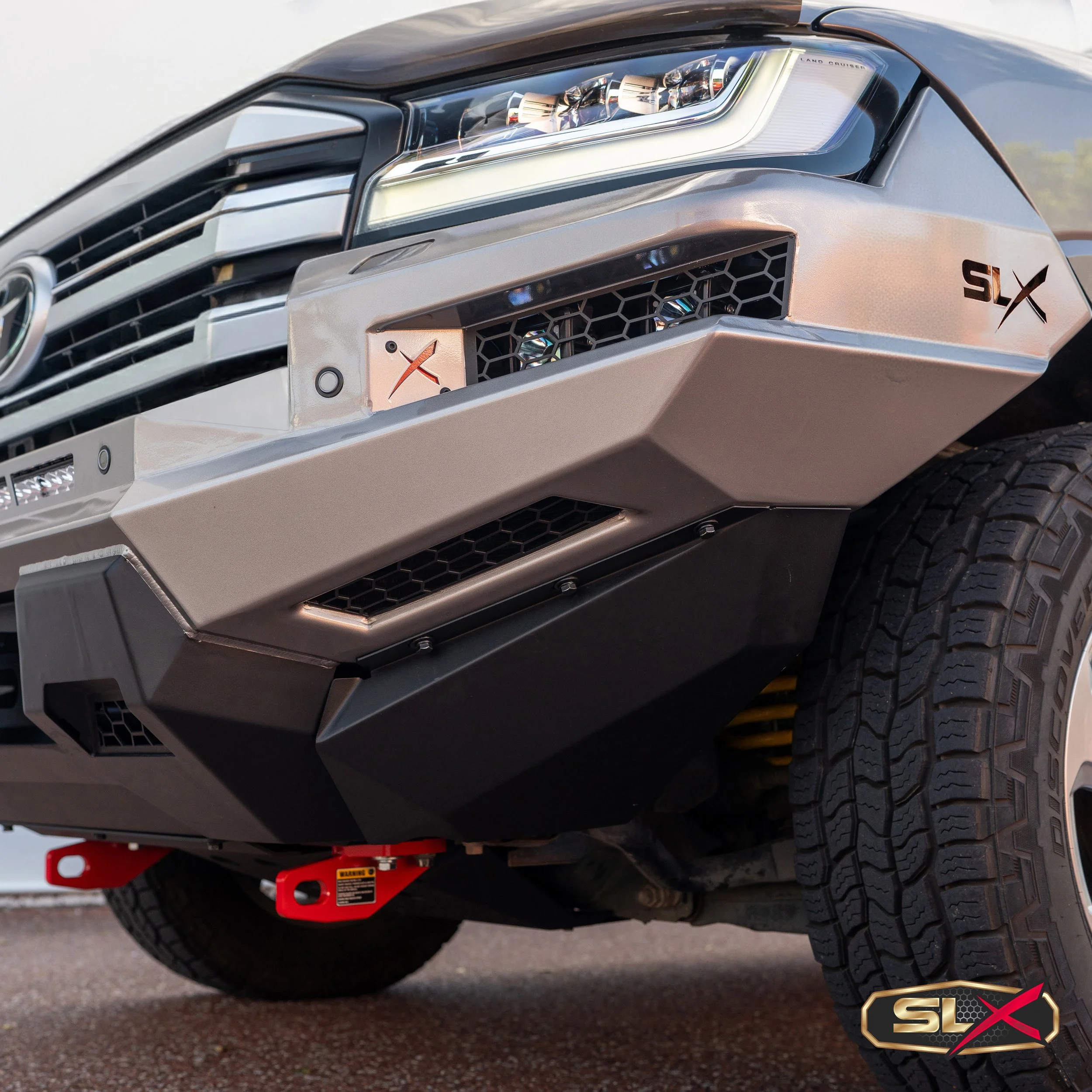

Close-up of the front of a modern pickup truck, showing the headlight, grille, and bumper with SLX logos. The truck has large tires and a red tow hook below the bumper.

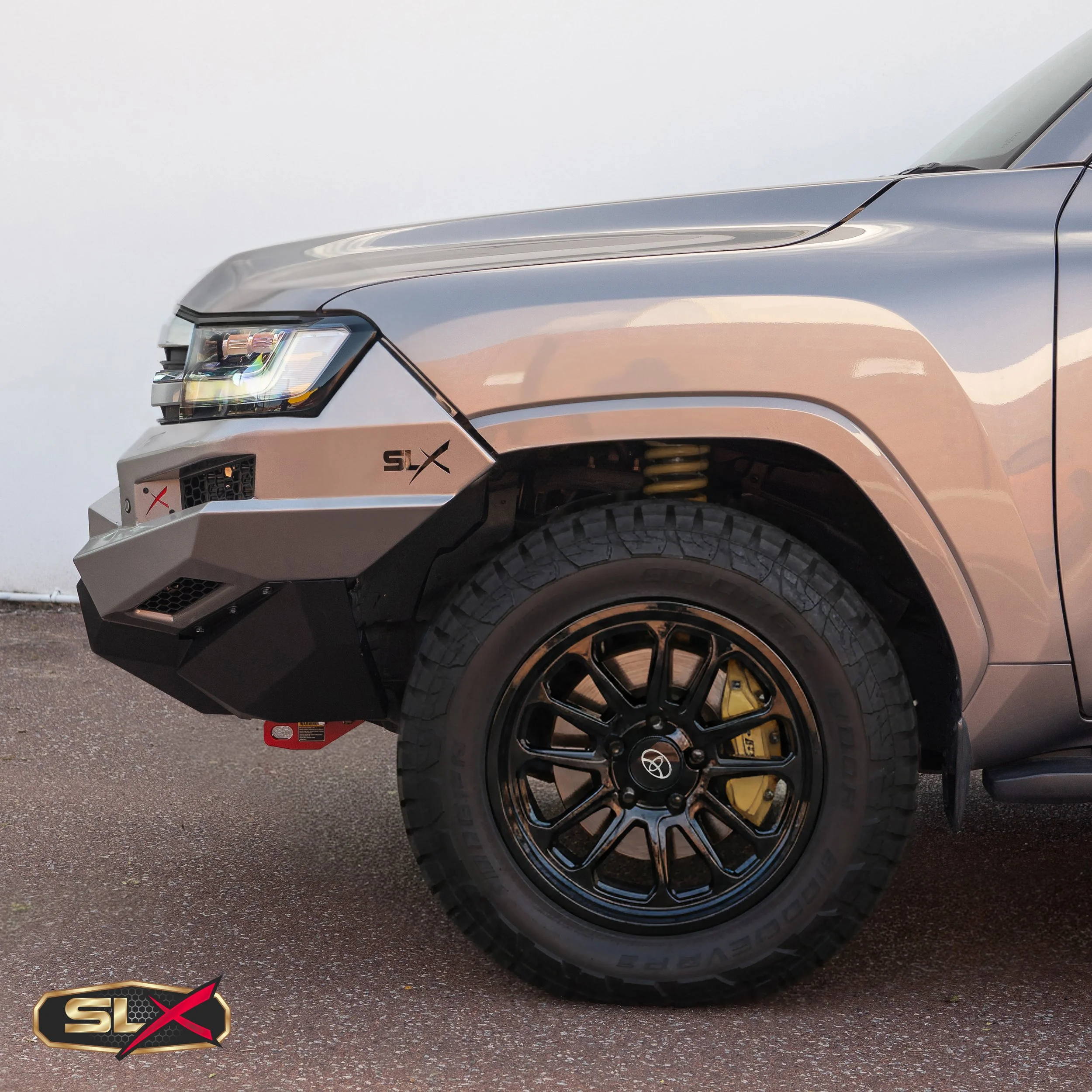

Close-up of a gray Toyota Tacoma pickup truck's front left side with off-road tires, black wheels, and a black bumper. The truck has a decal with
Close-up of the front bumper of a modified pickup truck with aftermarket black and silver parts, a red tow hook, and off-road tires.

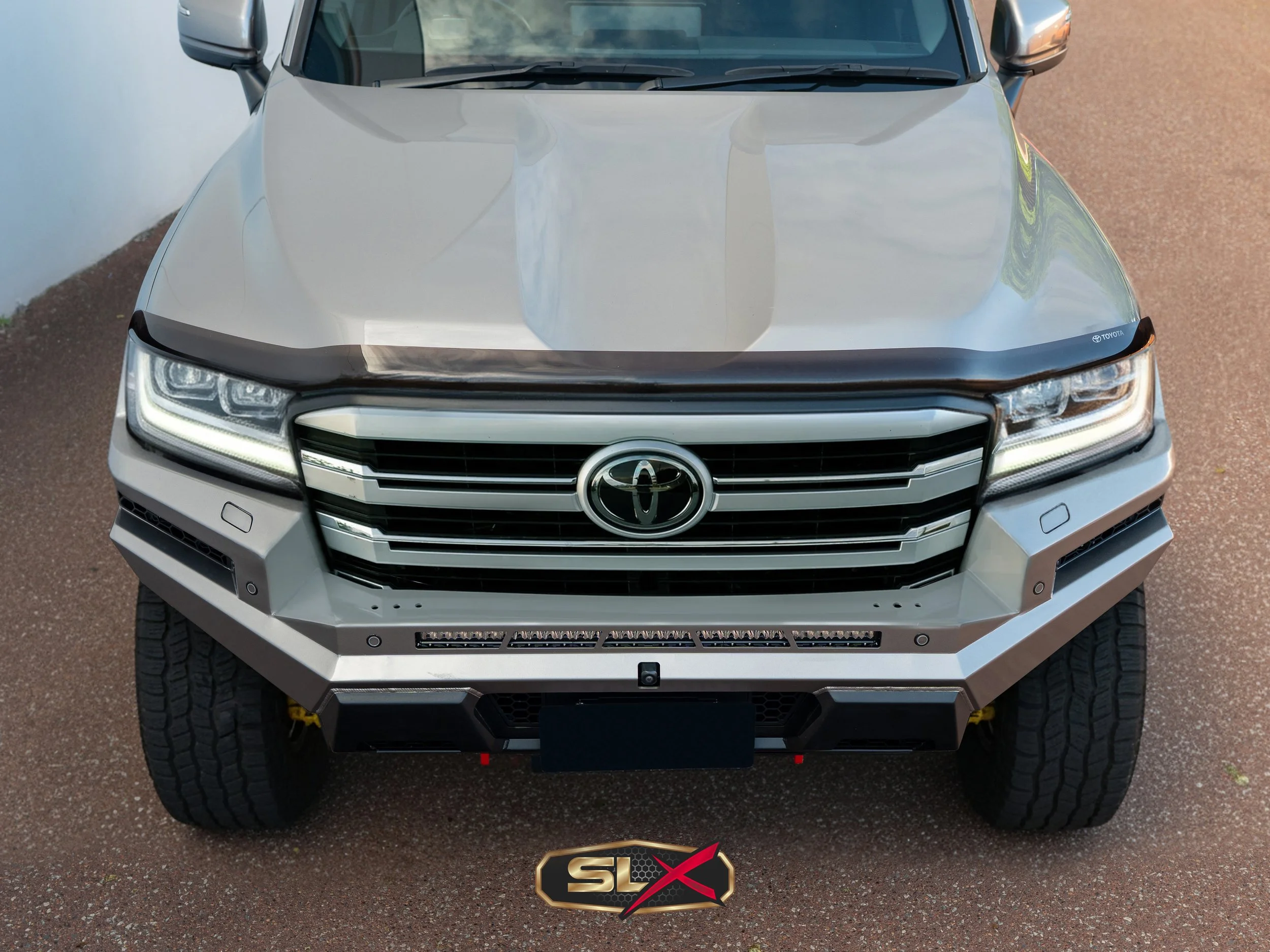

Front view of a silver Toyota SUV with a custom aluminum front bumper, LED light bar, and black hood protection, parked on a reddish-brown paved surface.
Front view of a custom silver Toyota SUV with large tires and aerodynamic modifications, set against a plain background with a logo at the bottom.

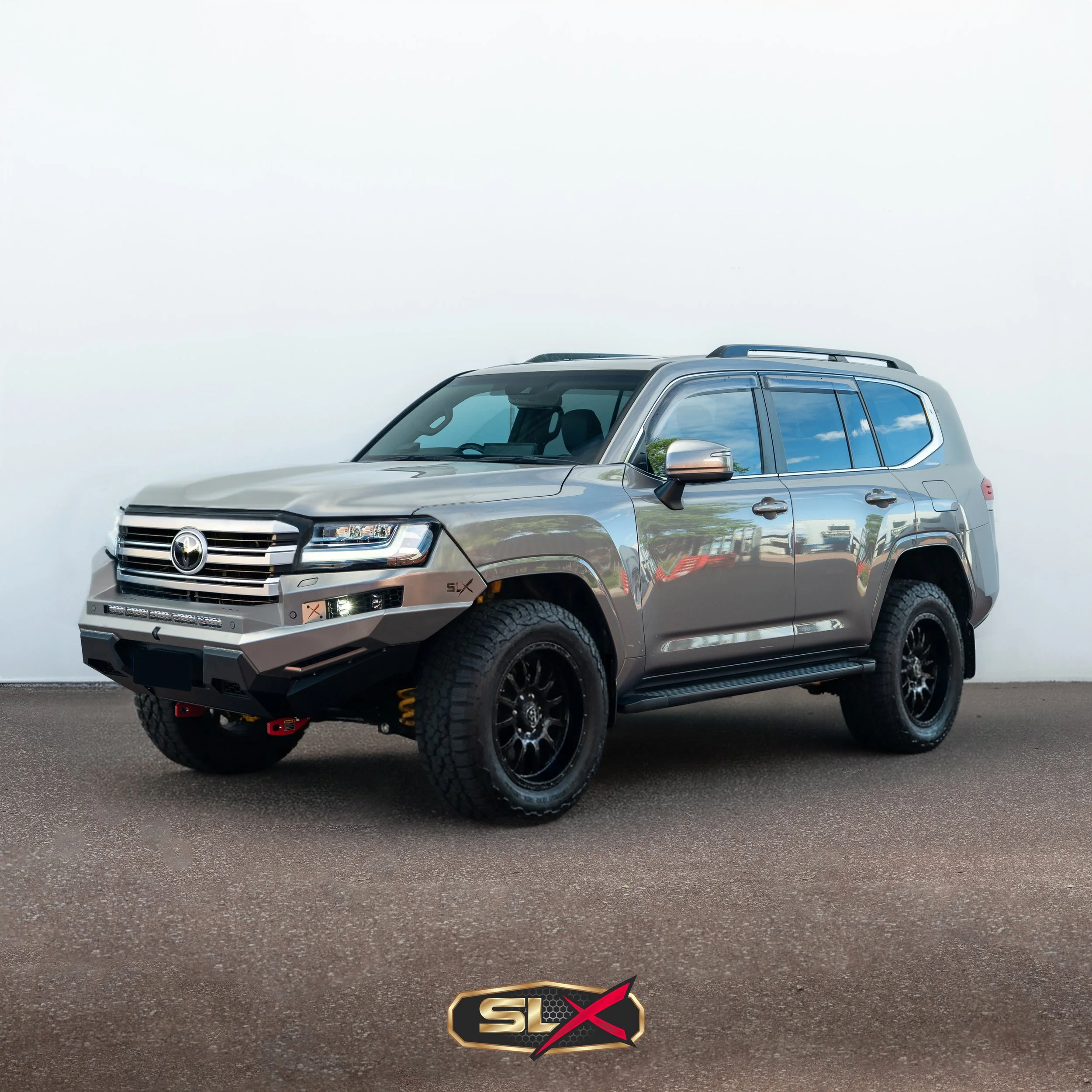

A silver Toyota SUV with black wheels parked indoors on a textured brown surface, with a plain white wall in the background.

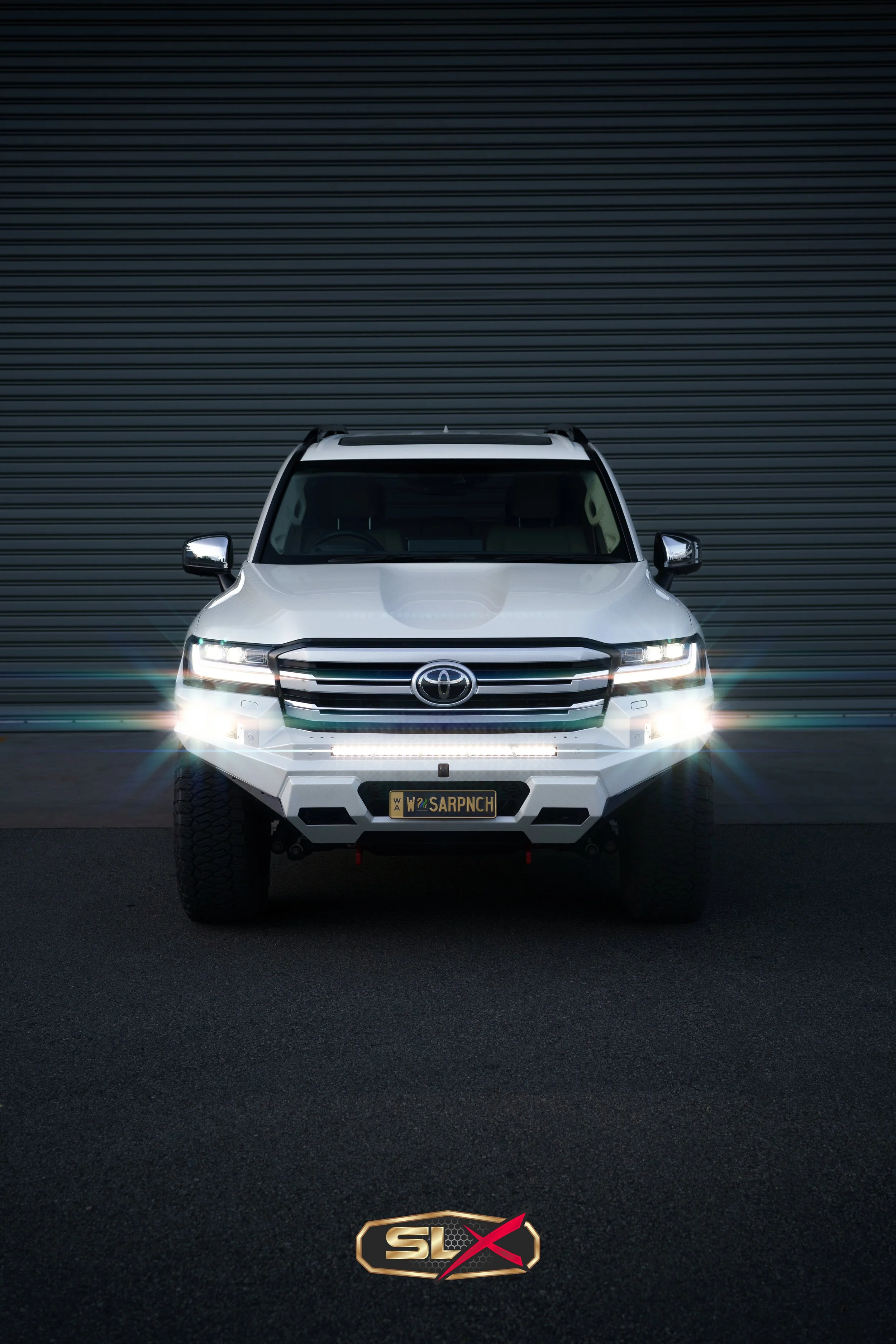

Front view of a white Toyota SUV with headlights and daytime running lights on, parked in front of a dark, ribbed metal door, with a gold decal reading 'SLX' on the pavement.

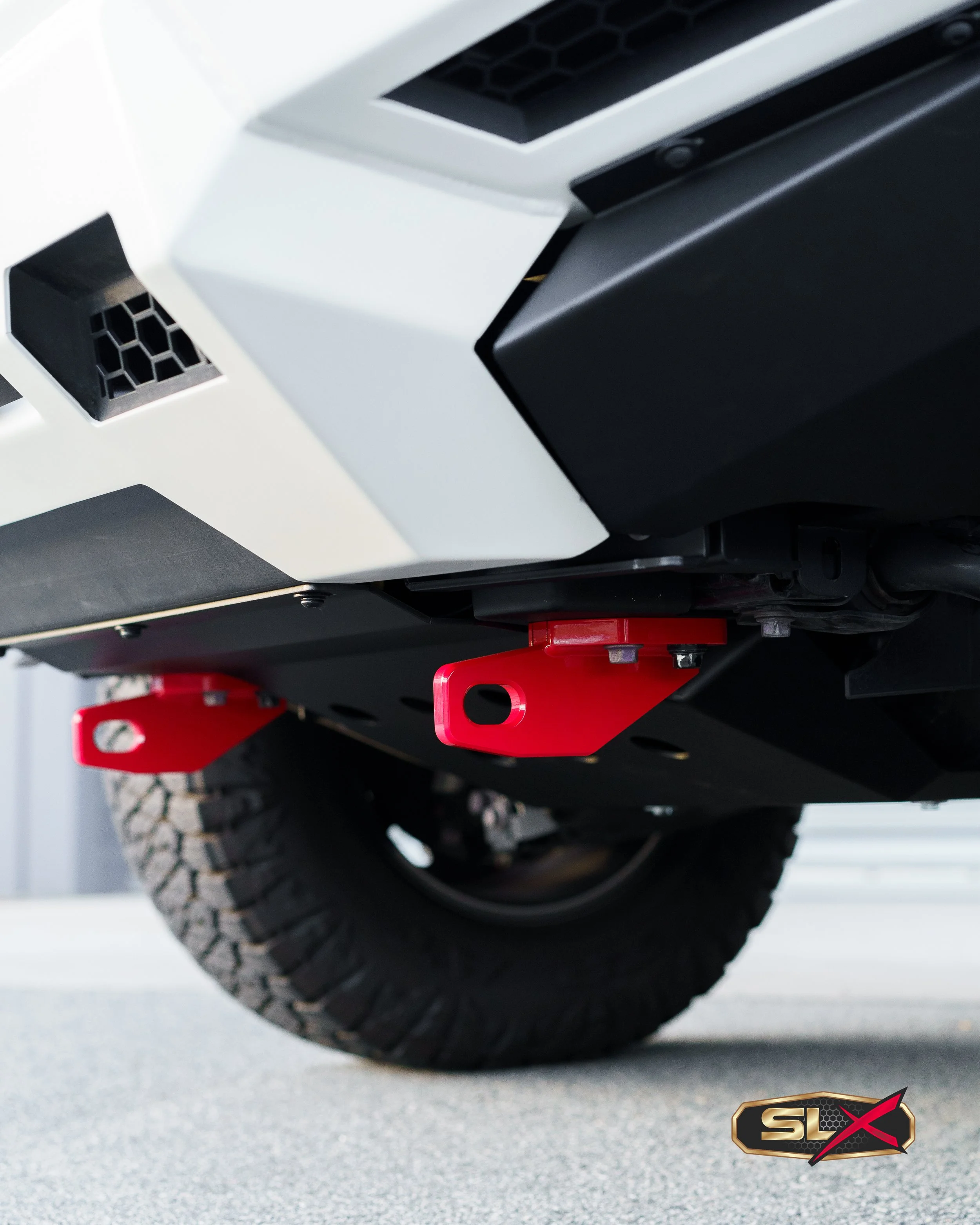

Close-up view of the underside of a vehicle showing a red recovery hook and a large off-road tire.

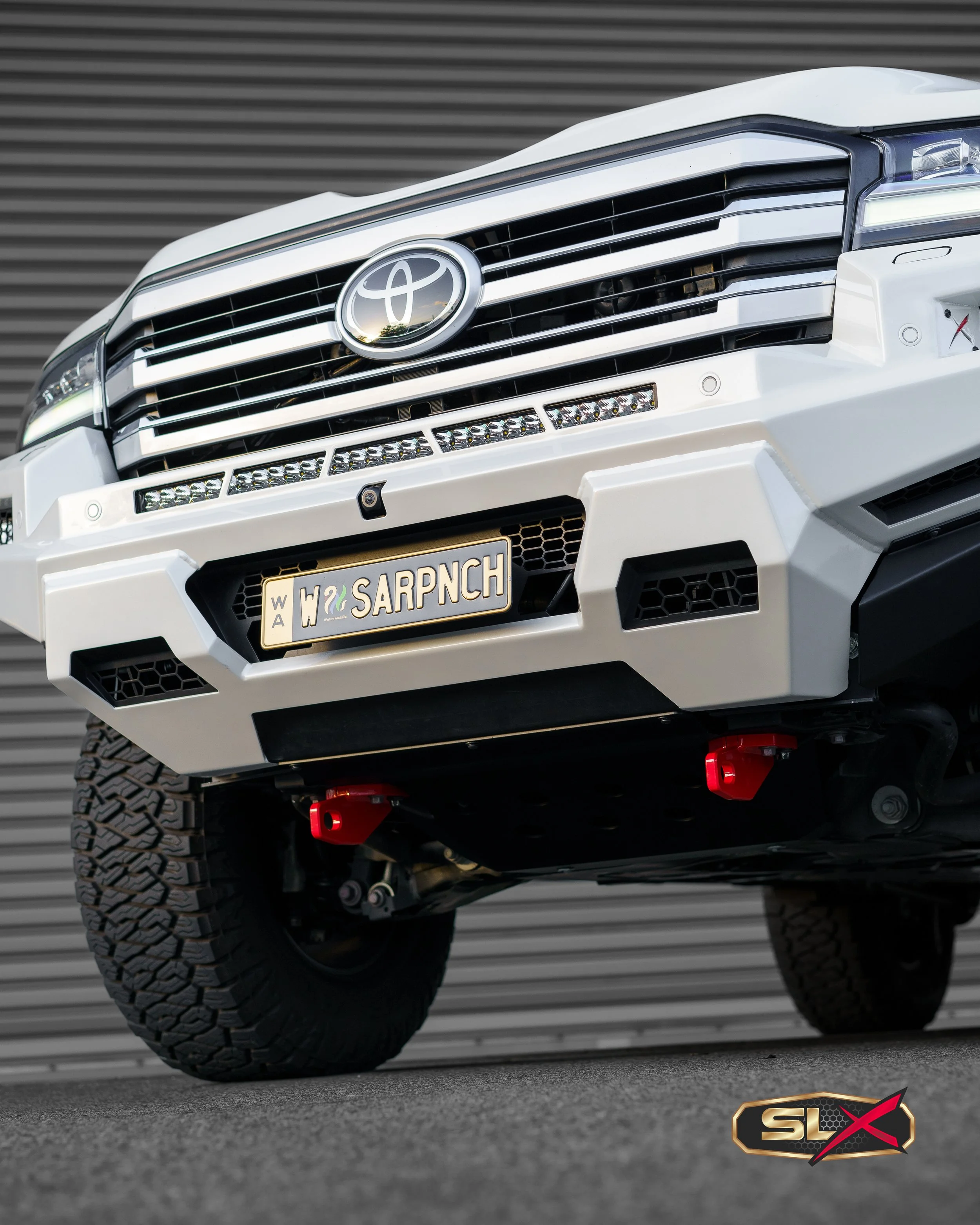

Close-up of a white Toyota SUV front with off-road tires, custom front bumper, red tow hooks, and a custom license plate that reads 'SARPUNCH', against a gray metal background.

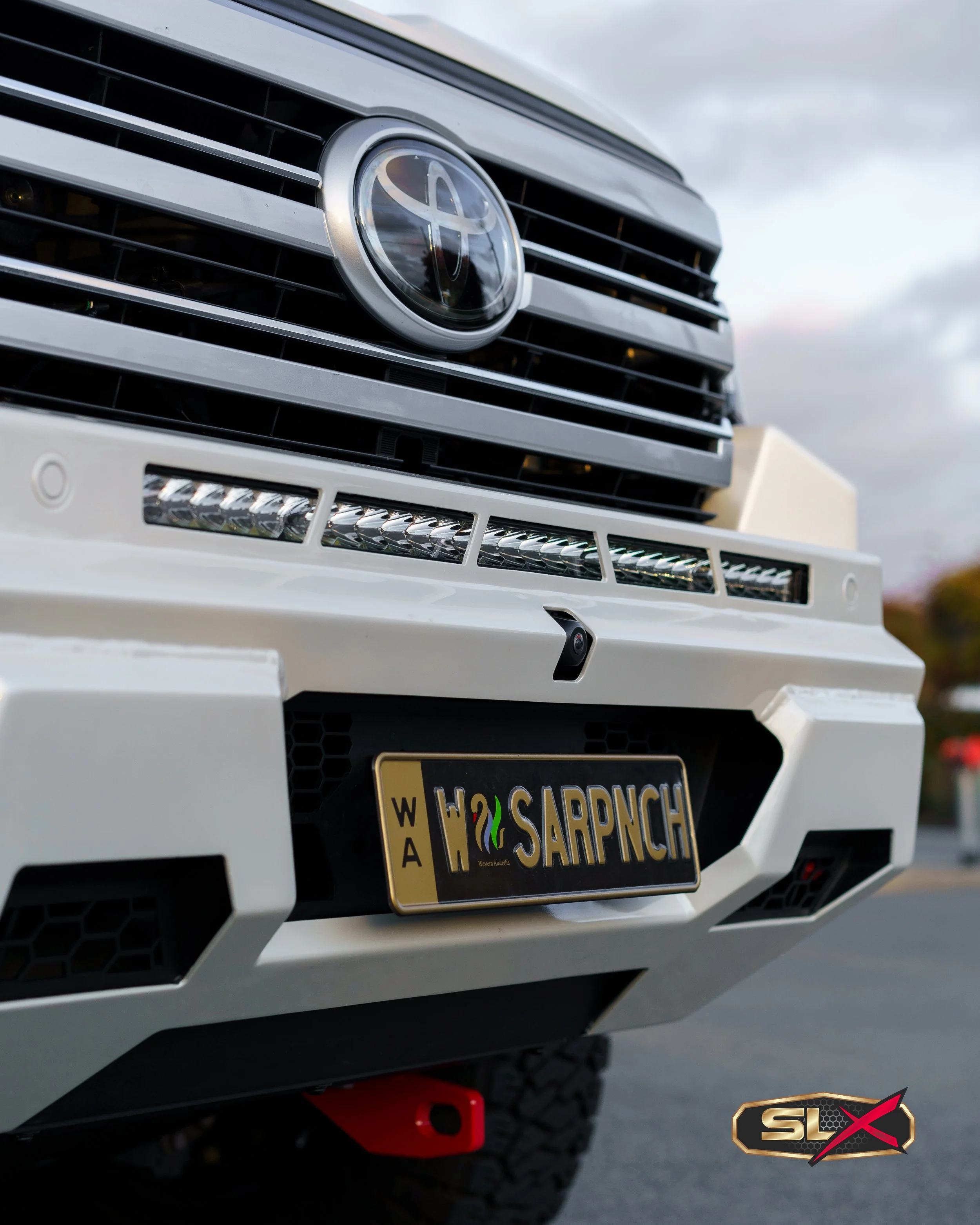

Close-up of the front grille and bumper of a white Toyota vehicle with a custom Australian license plate reading 'SARPNCH'.

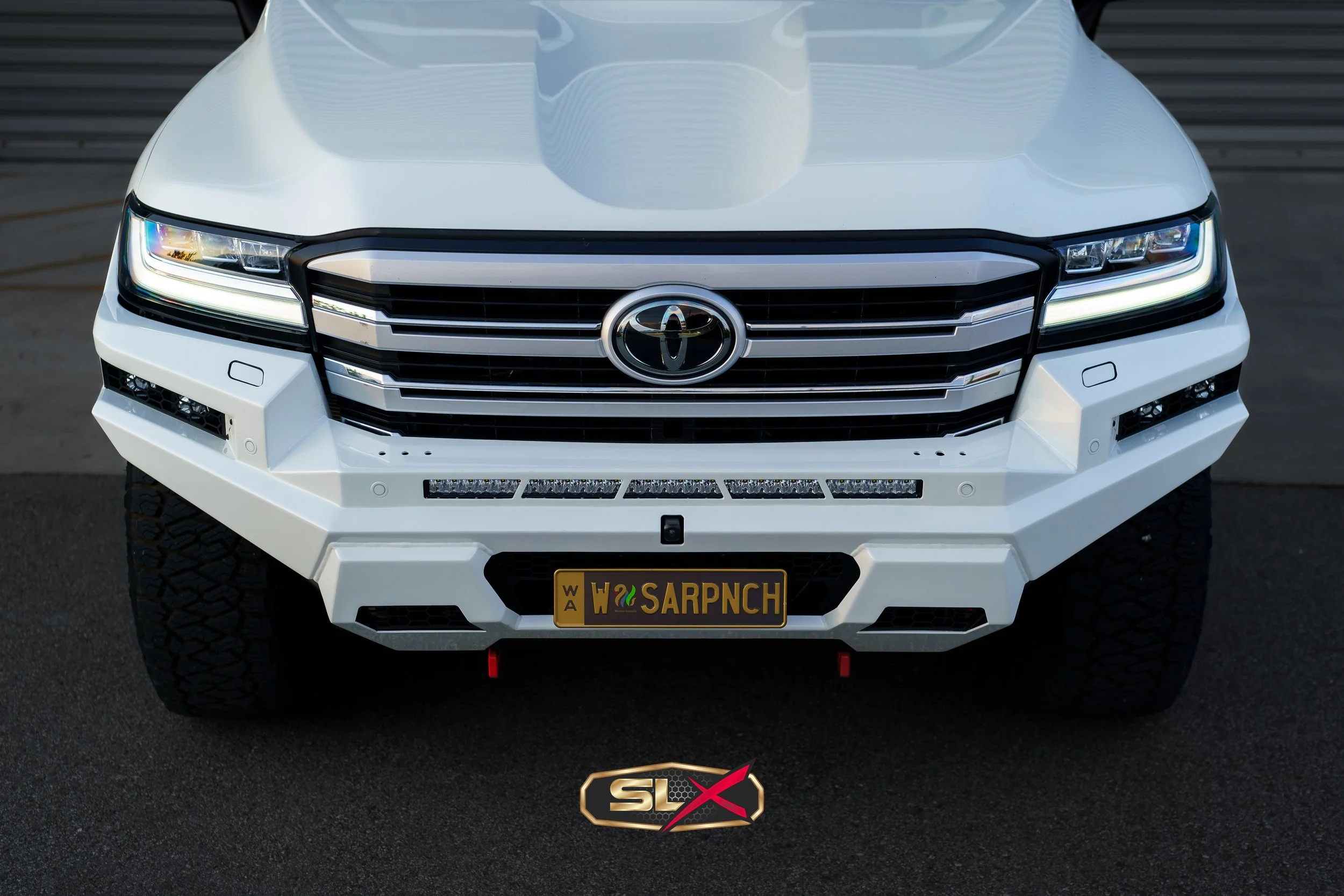

Front view of a white modified Toyota truck with black accents, custom license plate reading 'W SARP NCH', and a logo saying 'SLX' beneath it, parked on a concrete surface.

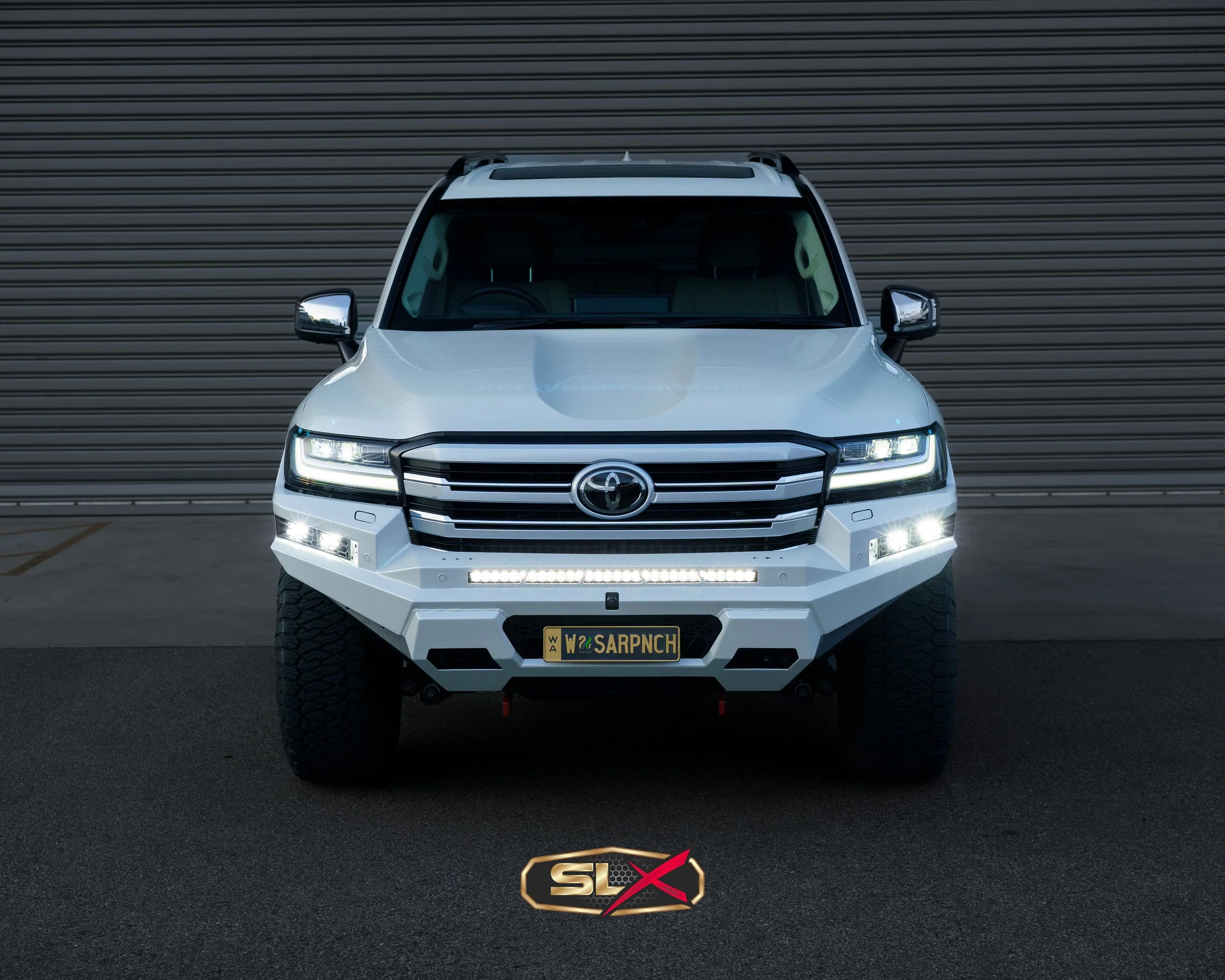

White off-road SUV with black grille and bumper, LED headlights, and large tires, parked facing forward in front of a metal garage door.
